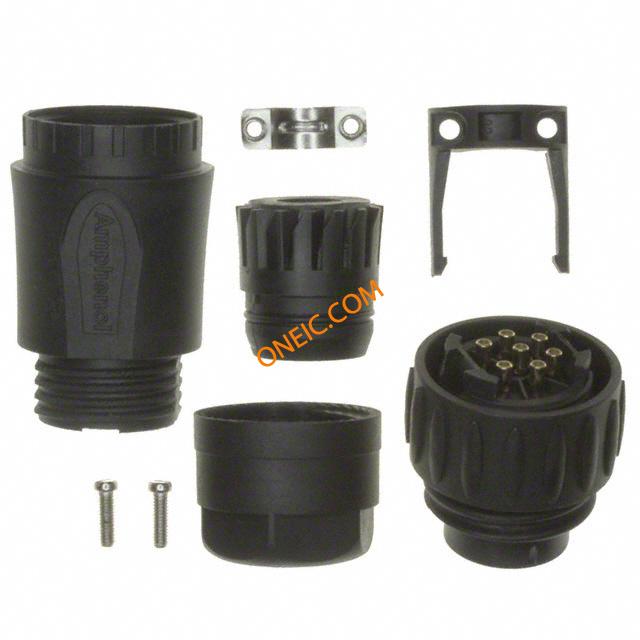

C016 30H006 210 12
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE MALE STRT BLK SODR GLD IN ST RELF CONN MALE PLUG 6+PE GOLD BLACK connector;plastic circ;str male cable conn;6+gnd gold plt cont;solder term;black Conn Circular PIN 7 POS Solder ST Cable Mount 7 Terminal 1 Port connector, plastic circ, str male cable conn, 6+gnd gold plt cont, solder term, black |
| Category |
Business
| Part # Aliases | 81K1506 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | Rad Hardened | No |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 12A |
Mechanical
| Color | Black | Diameter | 30 mm |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20 | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Contact Form | 6Signal/1Ground | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 6-12.5 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | Plastic |
| Connector Usage | Threaded | Housing Material | Polyamide |
| Length - Overall | 73 mm | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | PIN |
| Number of Contacts | 7 POS | Dielectric Material | Polyamide |
| Number of Positions | 7 | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 6 + 1 Ground (PE) | ||
Product Info
| Type | Circular | Gender | PL |
| Features | Cable Clamp, Strain Relief | Manufacturer | C016 Series |
| Product Type | Connectors | RF Family/Standard | C016 |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 125°C | ||
