点击放大查看
C016 10K006 000 10
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE MALE R/A BLUE CRIMP CONN PLUG 6+PE CBL PIN RA CRIMP PLUG, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle male cable housing, for 6+gnd crimp pin cont, blue |
| Category |
Business
| Other Names | C01610K00600010 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | :5mohm |
| Voltage - Breakdown | :4000V | Current Rating (Max) | :13A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Color | Blue | Weight | 0.051 |
| Packaging | Bulk | Wire Gauge | :0.14mm² |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Crimp | Weight (g): | 41.20000 |
| Contact Size | 1.6mm | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line), Right Angle | Release Force | :30N |
| Angle of Throw | Right | Cable Diameter | 6-12.5 mm |
| Connector Type | Plug for Male Contacts | Contact Finish | Gold over Silver |
| Fastening Type | Threaded | Package / Case | :Right Angle |
| Connector Usage | Threaded | Insertion Angle | :- |
| Insertion Force | :15N | Material - Body | :Nylon (Polyamide) |
| Housing Material | Polyamide | Primary Material | DIN |
| 1st Contact Gender | :Pin | Color - Connectors | :Blue / Black |
| Dielectric Material | Polyamide | Number of Positions | 7 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 6 + 1 Ground (PE) | Wire Gauge or Range - AWG | :26AWG |
| Wire Gauge or Range - mm2 | :1.5mm² | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :12.5mm | ||
Product Info
| Note | Contacts Not Provided | Type | Cable Plug |
| Gender | :Plug | Series | :ECOMATE |
| Features | Cable Clamp | Manufacturer | C016 Series |
| Product Type | Connectors | Application Specifics | Commercial |
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | :+125°C | ||
Documents & Media
Similar Parts
C016 30G006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM RECEPT BLK SOLDER GLD CONTACT CONN FEMALE RCPT 6+PE GOLD BLACK SOCKET, PANEL, SOLDER, AU, 6P+E WAY CIRCULAR CONNECTOR RECEPTACLE 6POS PANEL connector, plastic circ, female panel recept, 6+gnd gold pltd cont, solder term, blk
C016 10F006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue

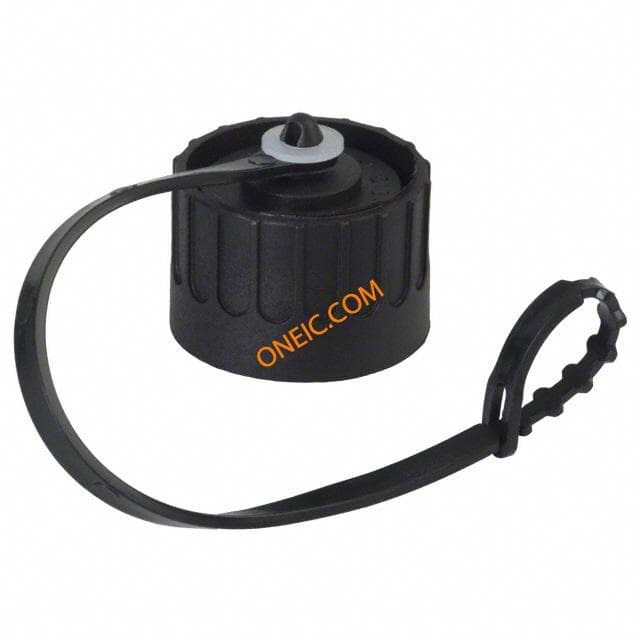

C016 00U000 010 12
