点击放大查看
C016 10D006 010 10
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE FEM STRT BLUE CRIMP INT STR REL CONN PLUG 7POS CABLE SKT CRIMP SOCKET, FREE, CRIMP, 6+PE WAY connector, plastic circ, str fem cable housing, for 6+gnd crimp socket cont, blue |
| Category |
Business
| Other Names | C01610D00601010 | Product Category | Circular DIN Connectors |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | DIN |
| Contact Resistance | :5mohm | Current Rating (Max) | 13 A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Color | Blue | Weight | 0.038 |
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | :0.14mm² | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Crimp |
| Weight (g): | 37.20000 | Contact Size | 1.6mm |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line) |
| Release Force | :30N | Angle of Throw | Straight |
| Cable Diameter | 6-12.5 mm | Connector Type | Plug for Female Contacts |
| Contact Finish | Silver / Gold | Fastening Type | Threaded |
| Package / Case | Plastic | Connector Usage | Threaded |
| Insertion Angle | :- | Insertion Force | :15N |
| Material - Body | :Nylon (Polyamide) | Contact Material | :- |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Blue / Black | Number of Contacts | 6 |
| Contact Termination | :Crimp | Dielectric Material | Polyamide |
| Number of Positions | 7 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 6 + 1 Ground (PE) |
| Exterior Housing Material | :Polyamide 6.6/PA6 | Wire Gauge or Range - mm2 | :1.5mm² |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :12.5mm |
Product Info
| Note | Contacts Not Provided | Type | Cable Socket |
| Gender | :Socket | Series | eco mate |
| Features | Cable Clamp, Strain Relief | Manufacturer | C016 Series |
| Product Type | Connectors | Application Specifics | Commercial |
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | :+125°C | ||
Documents & Media
Similar Parts
C016 10H006 010 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLUE CRIMP INT STR REL CONN PLUG 6+PE CABLE PIN CRIMP PLUG, FREE, CRIMP, 6P+E WAY connector, plastic circ, str male cable housing, for 6+gnd crimp pin cont, blue Connector: circular; plug; straight, w/o terminals; male; PIN:7
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖
C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol
C016 G09 042 G10 X
Amphenol Tuchel
Circular DIN Connectors R/A BACK SHELL BLUE 10 PC BAG BACKSHELL RT ANG BLUE
C016 G09 041 G10 X
Amphenol Tuchel
Circular DIN Connectors R/A BACK SHELL BLK 10 PC BAG BACKSHELL RT ANG BLACK

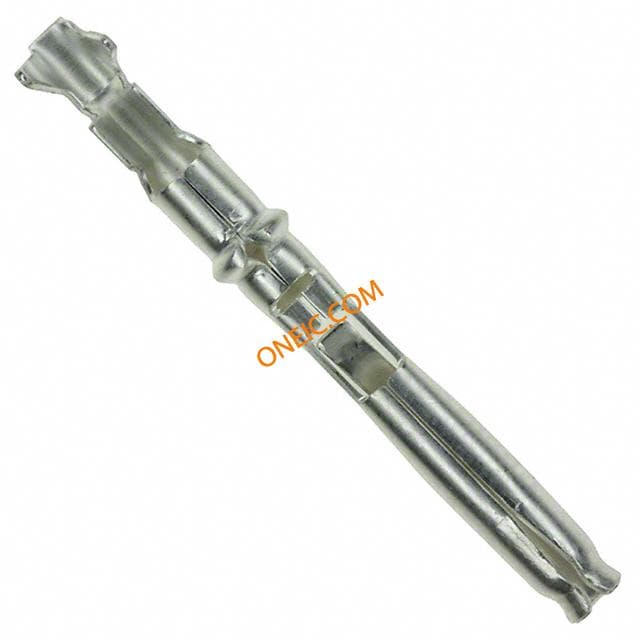

VN02 016 0003 1
