31-10
| Manufacturer | |
| Description | RF Connectors BULKHEAD JACK 50 ohm SOLDER CUP ISOLATED CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc blkhd recept;front mount;ground tab;isolated;50 ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold JACK BNC, BULKHEAD |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Cable Type | :RG58, RG59, RG179, RG316 | Body Finish | Nickel |
| Termination | :Solder | Weight (g): | 8.40000 |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Jack, Female Socket |
| Contact Finish | :Silver | Fastening Type | Bayonet Lock |
| Connector Style | BNC | Contact Material | :Phosphor Bronze |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Dielectric Material | Polyamide (PA), Nylon | Center Contact Plating | Silver |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | :Straight Jack |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Series | :BNC | Features | Isolated |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts
000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms
031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms

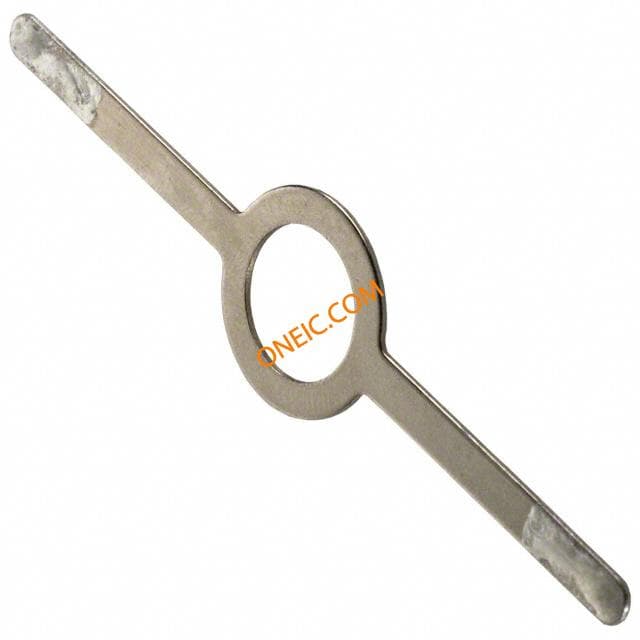

31-759
