15875
| Manufacturer | |
| Description | RF Connectors ST CLMP PLG 178 196 CONN BNC PLUG STR 50 OHM SOLDER connector;rf coaxial;bnc straight plug;clamp/solder;for rg178;196 cable;50 ohm RF Connectors / Coaxial Connectors ST CLMP PLG 178 196 Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver ADAPTOR, RF COAXIAL, BNC TERM TYPE LEGEND H-C-C = Hex Crimp Center Contact and Braid O-C-C = "O" Crimp Center Contact and Braid H-C = Captive Center Contact and Braid H-C = Captive Center Contact and Braid * 10BASE-2 IEEE 802.3 |
| Category |
Business
| Product | Connectors | Part # Aliases | 000-15875 16R0491 51F3824 713-9658 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 1 |
Compliance
| RoHS | Compliant | Tariff No | 85366910 |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Coupling Factor | Bayonet | Frequency - Max | 4GHz |
| Insulation Resistance | 5000 MOhms | ||
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Cable Type | RG-178, RG-196 | Body Finish | Nickel |
| Cable Group | RG-178, 196 | Orientation | Straight |
| Termination | :Clamp / Solder | Weight (g): | 16.00000 |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pin |
| Contact Finish | Silver | Fastening Type | Bayonet Lock |
| Connector Style | BNC | Contact Material | Brass |
| Termination Style | Cable - Clamp | Shield Termination | Clamp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Silver | Center Contact Material | Brass |
| Supplier Device Package | Straight | 1st Connector Mounting Type | :Cable |
Product Info
| Gender | Plug | Series | :- |
| Polarity | Standard | RF Family/Standard | BNC |
Environmental
| Mating Cycles | 500 | Ingress Protection | Weatherproof |
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
Similar Parts
15875
Amphenol RF
RF Connectors ST CLMP PLG 178 196 CONN BNC PLUG STR 50 OHM SOLDER connector;rf coaxial;bnc straight plug;clamp/solder;for rg178;196 cable;50 ohm RF Connectors / Coaxial Connectors ST CLMP PLG 178 196 Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver ADAPTOR, RF COAXIAL, BNC TERM TYPE LEGEND H-C-C = Hex Crimp Center Contact and Braid O-C-C = "O" Crimp Center Contact and Braid H-C = Captive Center Contact and Braid H-C = Captive Center Contact and Braid * 10BASE-2 IEEE 802.3

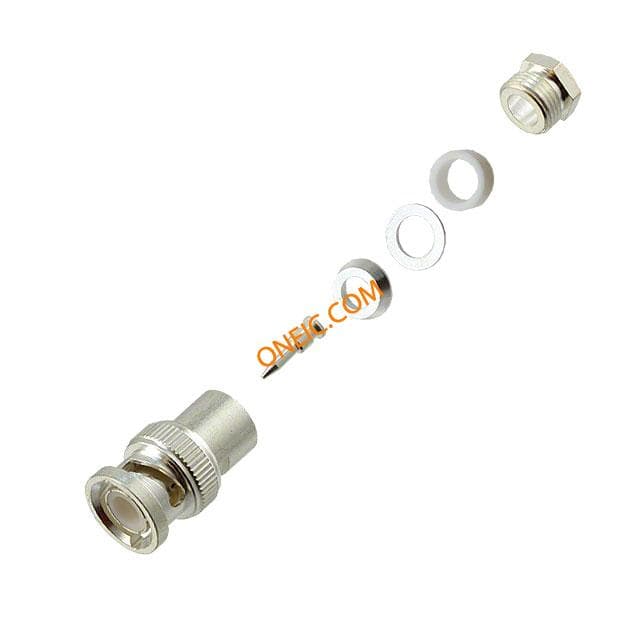

1-1337421-0
