SJS860910
| Manufacturer | |
| Description | 4-PIN SZ 16 & 5-PIN SZ 22 WHITE PLUG CONN HSG PLUG 9POS INLINE SKT 4, 5 Pole Male MIL Spec Circular Connector with Male Contacts SJS Series Lighting Connectors Luminus Size 22 9P Inline Plug PLUG, SIZE16/22, WHITE, 9 WAY Amphenol SJS 系列 4, 5路 连接器 插头 , 公触点 |
| Category |
Business
| Product | Housings | Tradename | Luminus |
| Other Names | APC1620 | Product Category | Lighting Connectors |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366110 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 13 A |
Mechanical
| Color | White | Length | 0.74 in |
| Weight | 0.004 | Packaging | Bulk |
| Weight (g): | 5.38000 | Contact Size | 16 (4), 22D (5) |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug for Female Contacts | Contact Finish | :- |
| Fastening Type | Bayonet Lock | Mounting Style | In-Line |
| Insertion Angle | :- | Material - Body | :Nylon 6.6 (Polyamide 6.6) |
| Contact Material | Stainless Steel | Housing Material | Polyamide (PA) |
| Termination Style | Crimp | 1st Contact Gender | Male |
| Color - Connectors | :White | Number of Contacts | 4, 5 |
| Contact Termination | :Crimp | Number of Positions | 9 |
| Shell Size - Insert | 10 | Shell Material, Finish | Polyamide (PA66), Nylon 6/6 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Plugs |
| Gender | Male | Series | SJS |
| Features | Mates with SJS860900 | ||
Environmental
| Ingress Protection | Environment Sealed | ||
Documents & Media
Similar Parts
M39029/56-352
amphenol
Contact SKT Crimp ST Cable Mount Circular MIL Spec Contacts CRIMP CONT SKT 16 GA Contacts CONTACT SCKT 16-20AWG SZ 16 PWR M39029 Series Size 16 13A Female Circular Connector Contact For Use With D38999 Circular Connector, Crimp CIRCULAR CONTACT, SOCKET, SIZE 16, CRIMP SIZE 16 LJT SOCKETS Socket contact, size 16 13 A, M39029/56-352, Amphenol Amphenol M39029 系列 13A 母 压接端接 圆形 连接器 触芯, 使用于D38999 圆形连接器
M39029/57-354
amphenol
Contact SKT Crimp ST Cable Mount Contacts CONTACT SCKT 22-28AWG SZ 22D PWR M39029 Series Size 22D 5A Female Circular Connector Contact For Use With D38999 Circular Connector, Crimp Circular MIL Spec Contacts SKT 22D GA CRIMP CONTACT, SKT, 38999, SIZE 22D SIZE 22D JT SOCKETS Amphenol M39029 系列 5A 母 压接端接 圆形 连接器 触芯, 使用于D38999 圆形连接器
M39029/57-358
amphenol
Contact SKT Crimp ST Cable Mount Contacts CONT SKT CRMP 16-20AWG SZ 16 PWR Circular MIL Spec Contacts SKT 16 GA SIZE 16 JT SOCKETS
SJS860900
amphenol pcd
4-PIN SZ 16 & 5-PIN SZ 22 WHITE RECEPTACLEEPTACLE CONN HSG RCPT 9POS INLINE PIN 4, 5 Pole Female MIL Spec Circular Connector with Male Contacts SJS Series Lighting Connectors Luminus Size 22 9P Inline Recpt RECPT, SIZE16/22, WHITE, 9 WAY QRATE Amphenol SJS 系列 4, 5路 连接器 插座 , 公触点
SJS860910
amphenol pcd
4-PIN SZ 16 & 5-PIN SZ 22 WHITE PLUG CONN HSG PLUG 9POS INLINE SKT 4, 5 Pole Male MIL Spec Circular Connector with Male Contacts SJS Series Lighting Connectors Luminus Size 22 9P Inline Plug PLUG, SIZE16/22, WHITE, 9 WAY Amphenol SJS 系列 4, 5路 连接器 插头 , 公触点

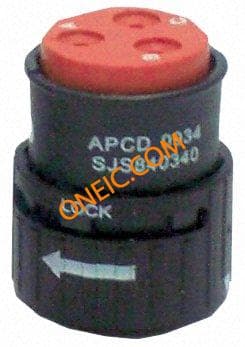

SJS991000
