SJS816100
| Manufacturer | |
| Description | Lighting Connectors PLUG SZ 16; RED TRIPLE SPLICE CONN HSG PLUG 3POS INLINE SKT 3 Pole Male Straight Cable Mount MIL Spec Circular Connector with Female Contacts Amphenol 3路 电缆安装 直向 连接器 插头 , 母触点 |
| Category |
Business
| Product | Housings | Tradename | Luminus |
| Other Names | APC1616 | Product Category | Lighting Connectors |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 600 V ac | Current Rating (Max) | 13A |
Mechanical
| Width | 0.7 in | Length | 1.12 in |
| Packaging | Bulk | Orientation | A |
| Termination | Crimp | Weight (g): | 5.08800 |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug for Female Contacts |
| Fastening Type | Detent Lock | Housing Material | Polyamide (PA) |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Female | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Size - Insert | 11 |
| Shell Material, Finish | Polyamide (PA66), Nylon 6/6 | ||
Product Info
| Note | Contacts Not Provided | Type | Plugs |
| Gender | Male | Application Specifics | Wire to Board |
Environmental
| Ingress Protection | Environment Sealed | Operating Temperature | +160°C |
Documents & Media
Similar Parts
M39029/56-352
amphenol
Contact SKT Crimp ST Cable Mount Circular MIL Spec Contacts CRIMP CONT SKT 16 GA Contacts CONTACT SCKT 16-20AWG SZ 16 PWR M39029 Series Size 16 13A Female Circular Connector Contact For Use With D38999 Circular Connector, Crimp CIRCULAR CONTACT, SOCKET, SIZE 16, CRIMP SIZE 16 LJT SOCKETS Socket contact, size 16 13 A, M39029/56-352, Amphenol Amphenol M39029 系列 13A 母 压接端接 圆形 连接器 触芯, 使用于D38999 圆形连接器
SJS816100
Amphenol PCD
Lighting Connectors PLUG SZ 16; RED TRIPLE SPLICE CONN HSG PLUG 3POS INLINE SKT 3 Pole Male Straight Cable Mount MIL Spec Circular Connector with Female Contacts Amphenol 3路 电缆安装 直向 连接器 插头 , 母触点

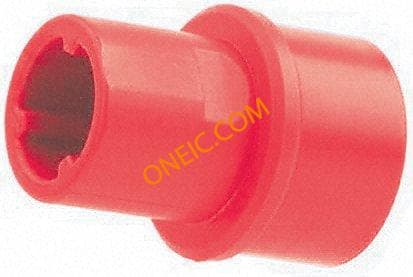

SJS816200
