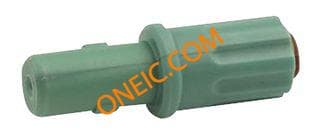

点击放大查看

SJS720210

Manufacturer	Amphenol PCD
Description	Lighting Connectors 1 POS SIZE 20 RECP. YELLOW CONN HSG RCPT 1POS INLINE PIN RECEPTACLE, SIZE 20, YELLOW, 1 WAY
Category	Connector SolutionsCircular ConnectorsStandard Circular Connectors

对参数有疑问？问 AI 助手

Business

Product	Housings	Tradename	Luminus
Other Names	APC1607	Product Category	Lighting Connectors
Standard Package	1

Compliance

RoHS	RoHS Compliant	Tariff No	85366110
Material Flammability Rating	UL94 V-0

Electrical

Voltage Rating

600 V

Current Rating (Max)

7.5 A

Mechanical

Color	Green	Length	1.03 in
Weight	0.002	Packaging	Bulk
Weight (g):	2.00000	Contact Size	20
Contact Type	Crimp	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle for Male Contacts	Contact Finish	:-
Fastening Type	Push-Twist	Mounting Style	In-Line
Insertion Angle	:-	Material - Body	:Nylon 6.6 (Polyamide 6.6)
Contact Material	Stainless Steel	1st Contact Gender	:Pin
Color - Connectors	:Yellow	Number of Contacts	:1
Contact Termination	:Crimp	Number of Positions	1
Shell Size - Insert	6	Shell Material, Finish	Polyamide (PA66), Nylon 6/6
1st Connector Mounting Type	:Cable

Product Info

Note	Contacts Not Provided	Type	Receptacle
Gender	:Socket	Series	SJS
Application Specifics	Wire to Board

Environmental

Ingress Protection

Environment Sealed
