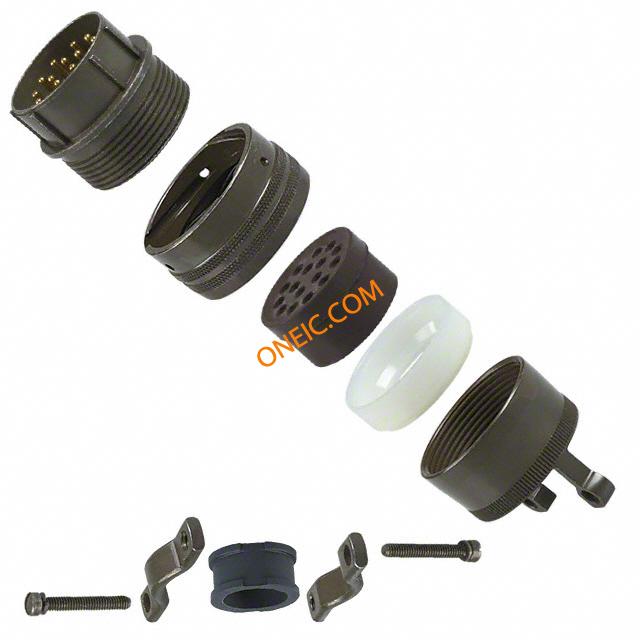

PT06E-20-16P(470)
| Manufacturer | |
| Description | Circular MIL Spec Connector 16P Size 20 Pin Plug Strt Strain Relief MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 16POS W/PINS SOLDER connector, metal circ, str plug w/strain relief, cl e, sz20, 16 #16 solder pin, black |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT06E20-16P(470) | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 20 |
| Wire Gauge | 16 | Orientation | N (Normal) |
| Shell Style | In-Line | Termination | Solder Cup |
| Contact Type | pin contacts | Mounting Type | Straight |
| Shell Plating | Non-Conductive Black Zinc | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | non-conductive black zinc cobalt with strain relief |
| Fastening Type | Bayonet Lock | Housing Finish | Zinc Cobalt |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | 20-16 | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 16 | Dielectric Material | Neoprene |
| Number of Positions | 16 | Shell Size - Insert | 20-16 |
| Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated | Contact Layout, Typical | 16#16 |
Product Info
| Type | Cable Plug | Class | E |
| Series | PT | Features | Strain Relief |
| Manufacturer | PT Series | Product Type | Plugs |
| Service Class | environmental resisting open wire seal with grommet and nut | Application Specifics | Commercial |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
