PT02SE-20-16S(025)

Manufacturer	Amphenol Corporation
Description	Circular MIL Spec Connector 16P Sz 20 Box Mt Skt Receptacle Blk Zinc CONN RECEPT 16POS W/SOCKET CRIMP
Category	Connector SolutionsCircular ConnectorsMilitary Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Circular MIL Spec Connector

Standard Package

Compliance

RoHS

RoHS Compliant

MIL Type

MIL-DTL-26482

Electrical

Voltage Rating

1000VAC

Current Rating (Max)

13A

Mechanical

Packaging	Bulk	Shell Size	20
Orientation	N (Normal)	Shell Style	Box Mount
Termination	Crimp	Mounting Type	Straight
Shell Plating	Non-Conductive Black Zinc	Connector Type	Receptacle, Female Sockets
Contact Finish	Gold	Fastening Type	Bayonet Lock
Mounting Style	Panel	Shell Material	Aluminum Alloy
Insertion Angle	20-16	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Mating Orientation	Bayonet
Number of Contacts	16	Number of Positions	16
Shell Size - Insert	20-16	Shell Material, Finish	Aluminum, Black Zinc Cobalt Plated

Product Info

Series

Product Type

Receptacles

Environmental

Ingress Protection

Environment Resistant

Operating Temperature

-55°C ~ 125°C

Documents & Media

PDF Document

MIL-C-26482, Series 1

PDF Document

12-070-180554.pdf

PDF Document

10912-070_26482_series_1.pdf

Similar Parts

PT06SE-20-16P(470)

Amphenol Industrial

Circular MIL Spec Connector 16P Size 20 Pin Plug Strt Strain Relief CONN PLUG 16POS W/PINS CRIMP

$536.2371

Details

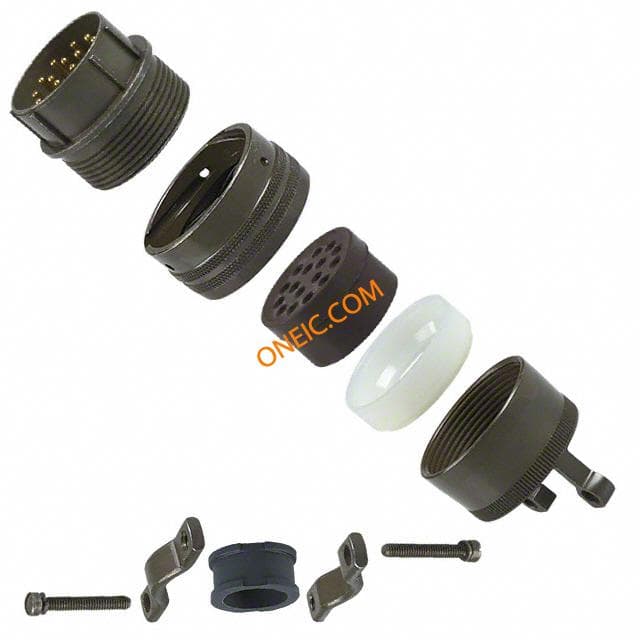

PT06E-20-16P(470)
