97-3108B-18-8P(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 8P Size 18 Solder R/A Pin Plug Blk Zn CONN PLUG RT ANG 8POS W/PINS connector;metal cir;rt angle plug;size 18;1#12;7#16 solder pin cont;black finish connector, metal cir, rt angle plug, size 18, 1#12, 7#16 solder pin cont, black finish |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 23 A to 13 A |
Mechanical
| Packaging | Bulk | Cable Exit | Split |
| Shell Size | 18 | Wire Gauge | 12, 16 |
| Orientation | N (Normal) | Shell Style | Right Angle |
| Termination | Solder Cup | Contact Type | Pin |
| Mounting Type | Right Angle | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Right | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 18-8 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Threaded |
| Number of Contacts | 8 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 8 | Shell Size - Insert | 18-8 |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | Contact Layout, Typical | 1#12, 7#16 |
Product Info
| Type | Cable Plug | Class | B |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
Similar Parts
.jpg&w=3840&q=75)

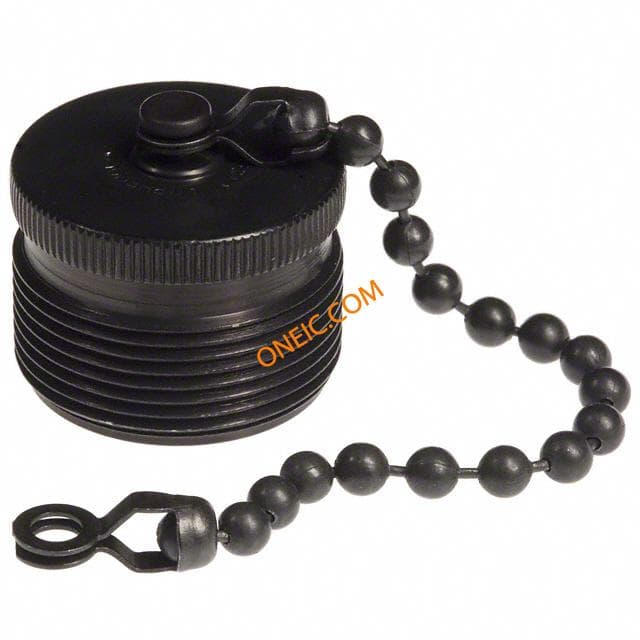

97-60-18P(621)
