97-3102A-18-8S(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 8P Sz 18 Box Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 8POS W/SOCK connector;metal circ;box recept;size 18;1#12;7#16 solder socket cont;black fin CIRCULAR, RECEPTACLE, 18-8, BOX connector, metal circ, box recept, size 18, 1#12, 7#16 solder socket cont, black fin |
| Category |
Business
| Other Names | 973102A188S946 | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Tariff No | 85369010 | Approval Agency Marking | UL Recognized/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A, 23A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 18 |
| Wire Gauge | 12, 16 | Orientation | N (Normal) |
| Shell Style | box mount receptable | Termination | Solder Cup |
| Contact Type | socket contacts | Mounting Type | Panel Mount, Flange |
| Shell Plating | Black Zinc Alloy | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type | Contact Finish | special variation code |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | solid backshell | Connector Usage | Threaded |
| Insertion Angle | 18-8 | Material - Body | :Aluminium |
| Contact Material | :- | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Threaded |
| Number of Contacts | 8 | Contact Termination | :Solder |
| Dielectric Material | Diallyl-Phthalate | Number of Positions | 8 |
| Shell Size - Insert | 18-8 | Mounting Hole Diameter | 0.12 " |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | Contact Layout, Typical | 1#12, 7#16 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Panel Socket | Class | A |
| Gender | :Receptacle | Series | 97 |
| Features | Environmental Resistant, Single Key/Keyway Shell Polarization | Manufacturer | 97 Series |
| Product Type | Receptacles | Insert Configuration | 18-8 |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3108B-18-8P(946)
Amphenol Industrial
Circular MIL Spec Connector 8P Size 18 Solder R/A Pin Plug Blk Zn CONN PLUG RT ANG 8POS W/PINS connector;metal cir;rt angle plug;size 18;1#12;7#16 solder pin cont;black finish connector, metal cir, rt angle plug, size 18, 1#12, 7#16 solder pin cont, black finish
.jpg&w=3840&q=75)
97-60-18(621)
Amphenol Industrial

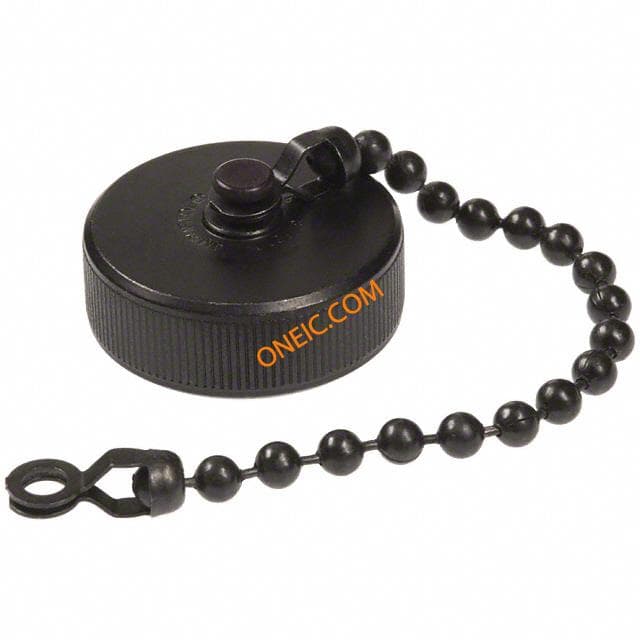

Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 18 BLACK ZINK COBALT CONN CAP FOR SIZE 18 RECEPT connector accessory;metal prot cap w/bead chain;for size 18 recept;black zinc Connector Accessories Metal Protection Cap Bead Chain For Receptacle Black Zinc Alloy connector accessory, metal prot cap w/bead chain, for size 18 recept, black zinc
