97-3106A-14S-2P(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 4P Straight Pin Plug Sz 14S Solder Blk Zn CONN PLUG 4POS W/PINS connector;metal circ;str plug;size 14s;4 #16 solder pin contact;black finish connector, metal circ, str plug, size 14s, 4 #16 solder pin contact, black finish For make up item see stock#: 605-8604 |
| Category |
Business
| Other Names | 973106A14S2P946 | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 200VAC, 250VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 14 | Wire Gauge | 22-16 |
| Orientation | N (Normal) | Shell Style | In-Line |
| Termination | Solder Cup | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Black Zinc Alloy |
| Angle of Throw | Straight | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Free Hanging |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 14S-2 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 4 | Shell Size - Insert | 14S-2 |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | Contact Layout, Typical | 4#16 |
Product Info
| Type | Cable Plug | Class | A |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

97-3057-1007(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;ms3057 cable clamp;connector sizes 12sl;14;14s;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 12SL, 14, 14S CABLE CLAMP, SIZE 12SL, 14, 14S CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, ms3057 cable clamp, connector sizes 12sl, 14, 14s, black zinc
.jpg&w=3840&q=75)
97-3057-6(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;an3057 cable clamp for size 12sl;14;14s connector;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3063 Size 12S, 14, 14S CABLE CLAMP, SIZE 12SL-14-14S, DIECAST connector accessory, an3057 cable clamp for size 12sl, 14, 14s connector, black zinc

97-3100A-14S-2S(946)
Amphenol Industrial
Circular MIL Spec Connector 4P Sz 14S Wall Mount Socket Recept Solder CONN RECEPT WALL MNT 4POS W/SOCK connector;metal circ;wall recept;size 14s;4 #16 solder socket cont;black finish connector, metal circ, wall recept, size 14s, 4 #16 solder socket cont, black finish

97-3057-1007-1(621)
Amphenol Industrial
Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 12SL, 14, 14S Miscellaneous Connector Accessories CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;ms3057a cable clamp w/rubber bushing;size 12sl;14;14s;black CABLE GLAND, SIZE 12SL, 14S connector accessory, ms3057a cable clampw/rubber bushing, size 12sl, 14, 14s, black

97-3101A-14S-2S(946)
Amphenol Industrial
Circular MIL Spec Connector 4P Sz 14S Sckt Cable Recpt Solder Blk Zn MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT CBL MNT 4POS W/SOCK connector;metal circ;cable recept;size 14s;4 #16 solder socket cont;black finish connector, metal circ, cable recept, size 14s, 4 #16 solder socket cont, black finish

97-3057-1007-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CBL CLAMP SZ 12SL, 14, 14S Straight multipole cable clamp,Size 14 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 12SL, 14, 14S CIRCULAR CABLE CLAMP SIZE 12SL/14/14S, ZINC ALLOY CIRCULAR CLAMP, SIZE 14/14S, ALUMINIUM connector accessory, cable clamp with rubber bushing, size 12sl, 14, 14s, olive drab Amphenol 97 系列 橄榄色 压铸件锌 电缆夹, 11.1mm 捆束直径

97-3102A-14S-2S
amphenol
Conn MIL-C-5015 Circular SKT 4 POS Solder ST Box Mount 4 Terminal 1 Port Circular MIL Spec Connector 4P Sz 14S Box Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 4POS BOX MNT W/SKT connector;metal circ;box recept;size 14s;4 #16 solder socket contact;olive drab CIRCULAR CONN, RCPT, SIZE 14S, 4POS, BOX connector, metal circ, box recept, size 14s, 4 #16 solder socket contact, olive drab

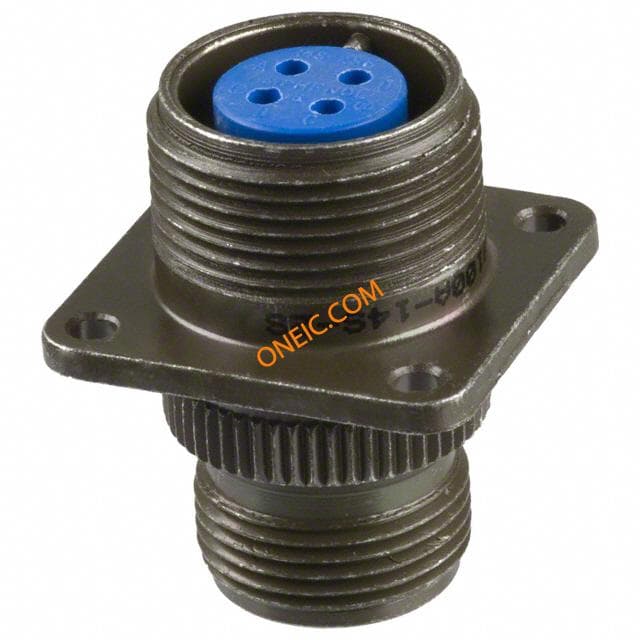

97-3100A-14S-2S
