97-3100A-14S-2S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 4 POS Solder ST Wall Mount 4 Terminal 1 Port CONN RECEPT WALL MNT 4POS W/SOCK connector;metal circ;wall recept;size 14s;4 #16 solder socket cont;olive drab Circular MIL Spec Connector 4P Sz 14S Wall Mount Socket Recept Solder connector, metal circ, wall recept, size 14s, 4 #16 solder socket cont, olive drab |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 200VAC, 250VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 14 | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | Wall Mount |
| Termination | Solder | Contact Type | Socket |
| Mounting Type | Wall Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 14S-2 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 4 | Shell Size - Insert | 14S-2 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 4#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-67-14-4
amphenol

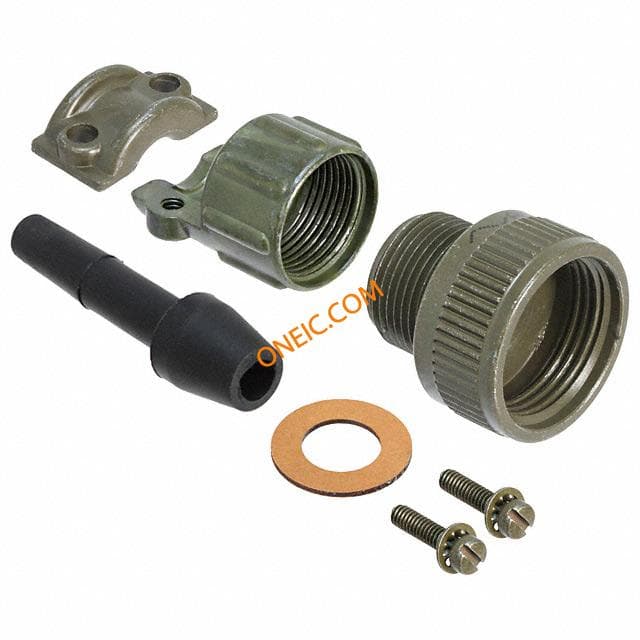

Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;water resistant cable clamp;size 12sl;14;14s;olive drab Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 12SL 14S 14 connector accessory, water resistant cable clamp, size 12sl, 14, 14s, olive drab
