20021221-00010C4LF

Manufacturer	Amphenol Corporation
Description	10 Positions Header, Shrouded Connector 0.050" (1.27mm) Surface Mount Gold Pin header SMT straight Poles 10 Minitek 127, 20021221-00010C4LF, Amphenol/FCI Amphenol FCI Minitek127 系列 1.27mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 表面安装

对参数有疑问？问 AI 助手

Compliance

Material Flammability Rating

UL 94 V-0

Electrical

Voltage - Test	500	Voltage Rating	125
Number of Poles	10	Contact Resistance	30 mOhm
Current Rating (Max)	1 A	Insulation Resistance	100 MOhm

Mechanical

Pitch	1.27	Orientation	直
Mounting Type	表面安装	Number of Rows	2
Contact Material	CuNi+Au 0.25 µm	Housing Material	Thermoplastic
Termination Rows	焊接	Number of Contacts	10
1st Connector Gender	Male

Product Info

Type	管座	Series	Minitek 127
Coverage	覆盖	Connection Method	Board-Board

Environmental

Operating Temperature

-40...+85 °C

Documents & Media

PDF Document

BTB Design 25/Feb/2013

PDF Document

BTB header/receptacle 25/Feb/2013

PDF Document

Minitek 127 Catalog

Similar Parts

20021311-00010T4LF

Amphenol FCI

10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold Receptacle Poles 10 THT Minitek 127, 20021311-00010T4LF, Amphenol/FCI

$4.9960

Details

20021321-00010C4LF

Amphenol FCI

10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold Receptacle Poles 10 SMD Minitek 127, 20021321-00010C4LF, Amphenol/FCI Amphenol FCI 20021321 系列 2行 10路直 1.27mm节距表面贴装印刷电路板插座, 插座 10P MINITEK 1.27MM SH.HEAD.

$3.3225

Details

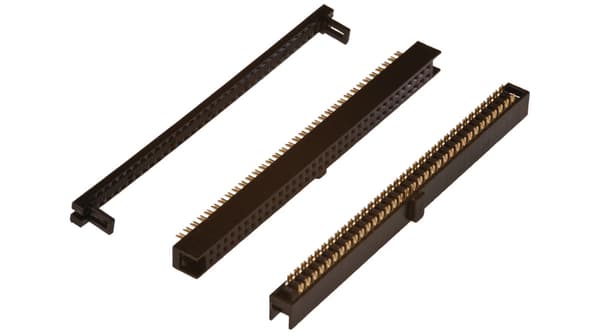

20021444-00010T4LF
