242109
| Manufacturer | |
| Description | Conn SMA-UHF Adapter F/PL 0Hz to 2.5GHz 50Ohm ST Gold CONN ADPT SMA FEMALE TO UHF MALE connector;rf coaxial;between series adapter;sma jack to uhf plug RF Adapters - Between Series SMA FEMALE TO UHF MALE ADAPTER ADAPTER, SMA JACK-UHF PLUG connector, rf coaxial, between series adapter, sma jack to uhf plug |
| Category |
Business
| Part # Aliases | 319-0453 92C7256 | Product Category | RF Adapters - Between Series |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | ||
Electrical
| Frequency | 0 to 2.5 GHz | Impedance | 50 Ohm |
| Conversion Type | Between Series | Frequency - Max | 2.5GHz |
| Frequency Range | DC to 2.5 GHz | ||
Mechanical
| Weight | 0.018 | Diameter | 18.2 |
| Packaging | Bulk | Body Finish | Nickel |
| Body Material | Brass | Mounting Type | Straight |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | SMA UHF | Contact Finish | Gold |
| Housing Finish | Nickel | Plating - Body | Nickel |
| Contact Material | Phosphor Bronze | Housing Material | Brass |
| Primary Material | Adapter | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | 1st Connector Gender | Jack (Female) |
| 2nd Connector Gender | Plug (Male) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | :Straight |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Socket |
| 2nd Connector Mounting Feature | Normal | ||
Product Info
| Type | SMA-UHF Adapter | Style | Straight |
| Gender | F/PL | RF Type | UHF |
| Adapter Type | Plug to Jack | Center Gender | Female to Male |
| Adapter Series | SMA to UHF | RF Family/Standard | 242109 |
| Application Specifics | Commercial | Convert To (Adapter End) | UHF Plug, Male Pin |
| Convert From (Adapter End) | SMA Jack, Female Socket | ||
Documents & Media
Similar Parts
242109
amphenol connex
Conn SMA-UHF Adapter F/PL 0Hz to 2.5GHz 50Ohm ST Gold CONN ADPT SMA FEMALE TO UHF MALE connector;rf coaxial;between series adapter;sma jack to uhf plug RF Adapters - Between Series SMA FEMALE TO UHF MALE ADAPTER ADAPTER, SMA JACK-UHF PLUG connector, rf coaxial, between series adapter, sma jack to uhf plug

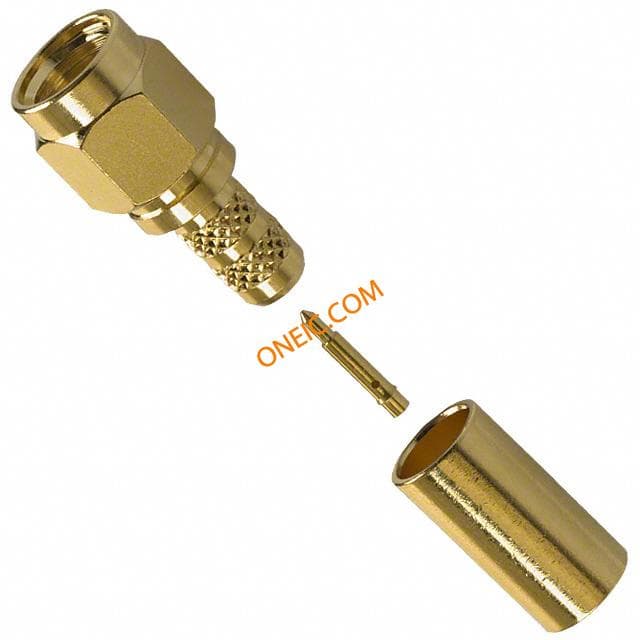

132113
