242101
| Manufacturer | |
| Description | Conn Type N-BNC Adapter F/PL 0Hz to 4GHz 50Ohm ST Gold CONN ADT N JACK-BNC PLUG connector;rf coaxial;between series adapter;n jack to bnc plug RF Adapters - Between Series BNC PLUG TO N JACK ADAPTER RF/COAXIAL ADAPTER, N JACK-BNC PLUG connector, rf coaxial, between series adapter, n jack to bnc plug CONN ADAPT BNC PLUG TO N JACK |
| Category |
Business
| Other Names | ACX1357 | Part # Aliases | 319-0260 92C7246 |
| Product Category | RF Adapters - Between Series | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Conversion Type | Between Series | Frequency - Max | 4GHz |
| Frequency Range | DC to 4 GHz | ||
Mechanical
| Weight | 1 oz | Diameter | 17 |
| Packaging | Bulk | Body Finish | Nickel |
| Weight (g): | 2.80000 | Body Material | Brass |
| Mounting Type | Straight | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | BNC N |
| Contact Finish | Gold | Housing Finish | Nickel |
| Plating - Body | Nickel | Contact Material | Phosphor Bronze |
| Housing Material | Brass | Length - Overall | 31.8 |
| Primary Material | Adapter | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | 1st Connector Gender | Plug (Male) |
| 2nd Connector Gender | Jack (Female) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | :Straight Adapter |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Jack |
| 2nd Connector Mounting Feature | Normal | ||
Product Info
| Type | Type N-BNC Adapter | Style | Straight |
| Gender | F/PL | RF Type | N |
| Adapter Type | Plug to Jack | Center Gender | Female to Male |
| Adapter Series | BNC to N | RF Family/Standard | 242101 |
| Application Specifics | Commercial | Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | BNC Plug, Male Pin | ||
Documents & Media
Similar Parts
172142
Amphenol Connex
RF Connectors N STRAIGHT CRIMP PLG RG 223/142/400 CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n str crimp plug;captive cont;for rg142;223;400 cable;50ohm RF Connectors / Coaxial Connectors N STRAIGHT CRIMP PLG RG 223/142/400 Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, n str crimp plug, captive cont, for rg142, 223, 400 cable, 50ohm

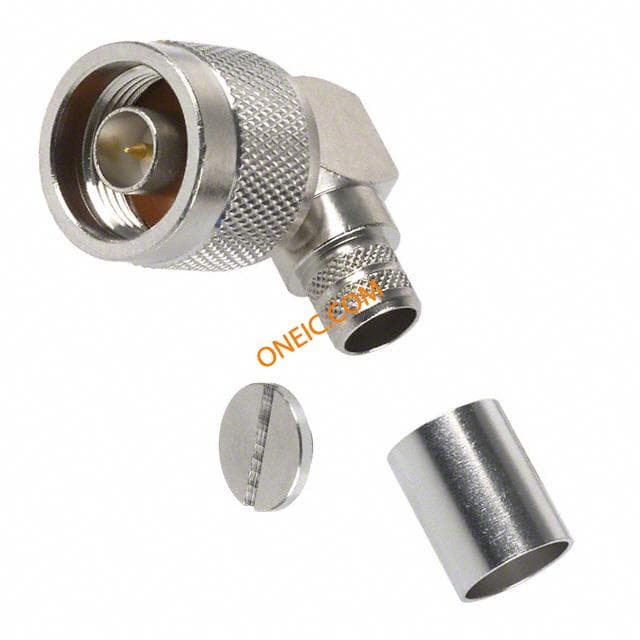

172176
amphenol connex
Conn Type N PL 0Hz to 11GHz 50Ohm Crimp RA Cable Mount Gold CONN N PLUG R/A 50 OHM SOLDER connector;rf coaxial;n right angle crimp plug;for rg8;b9913;LMR400 cable;50 ohm RF Connectors / Coaxial Connectors N RIGHT ANGLE PLUG STD CABLE CRIMP connector, rf coaxial, n right angle crimp plug, for rg8, b9913, LMR400 cable, 50 ohm 172176 Type-N Male Crimp Connector, Right Angle, Cable Group E & F, Amphenol

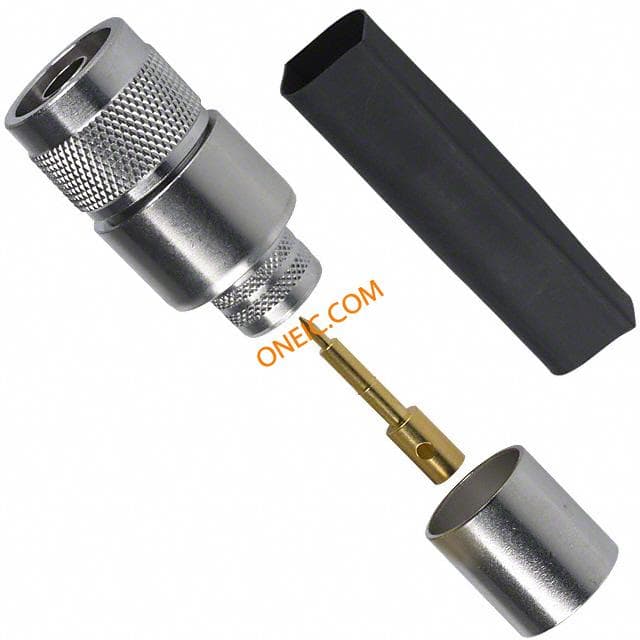

172206
amphenol connex
Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N PLUG STR 50 OHM SOLDER connector;rf coaxial;n str crimp plug;captive cont;for LMR600 cable;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT PLUG STD CABLE CRIMP connector, rf coaxial, n str crimp plug, captive cont, for LMR600 cable, 50 ohm 172206 Type-N Male Crimp Connector, Cable Group L2, Straight, Amphenol

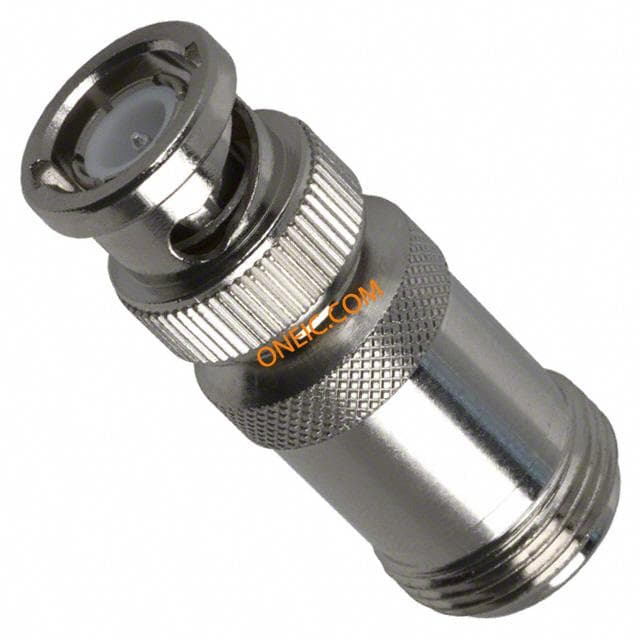

31-217
