172142
| Manufacturer | |
| Description | RF Connectors N STRAIGHT CRIMP PLG RG 223/142/400 CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n str crimp plug;captive cont;for rg142;223;400 cable;50ohm RF Connectors / Coaxial Connectors N STRAIGHT CRIMP PLG RG 223/142/400 Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, n str crimp plug, captive cont, for rg142, 223, 400 cable, 50ohm |
| Category |
Business
| Product | Connectors | Other Names | ACX1120 |
| Part # Aliases | 319-0094 99H5748 | Product Category | RF Connectors |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85366910 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 11 | Impedance | 50 Ohms |
| Voltage Rating | 1.5 KV | Coupling Factor | Threaded |
| Frequency - Max | 11 GHz | Insulation Resistance | 5000 Megohms (Min.) |
Mechanical
| Depth | Not Required mm | Height | Not Required mm |
| Length | 1.174 in. | Weight | 1.072328 oz |
| Diameter | 21 mm | Packaging | Bulk |
| Cable Type | RG-55, RG-142, RG-223, RG-400 | Body Finish | White Bronze |
| Cable Group | RG-55, 142, 223 | Orientation | Straight |
| Termination | Crimp | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Crimp/Solder Attachments for Flexible and Semi-Rigid Cable |
| Contact Finish | Silver or Gold | Fastening Type | Threaded |
| Housing Finish | Nexcote | Inner Diameter | 0.126 in. |
| Mounting Style | Cable | Outer Diameter | 0.168 in. |
| Plating - Body | Nickel | Connector Style | N Type |
| Connector Usage | Threaded | Contact Material | Brass |
| Housing Material | Brass | Length - Overall | 34.6 mm |
| Primary Material | N | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Teflon |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | ||
Product Info
| Type | Type N | Gender | Plug (Male) |
| Features | Captivated Contact | Polarity | Normal |
| Connection Type | Coaxial Cable | RF Family/Standard | N |
| Application Specifics | Commercial | For Use With/Related Products | RG-223/142/400 |
Environmental
| Mating Cycles | 500 | Temperature Range | -65 to +165 °C |
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
Similar Parts
172306
amphenol connex

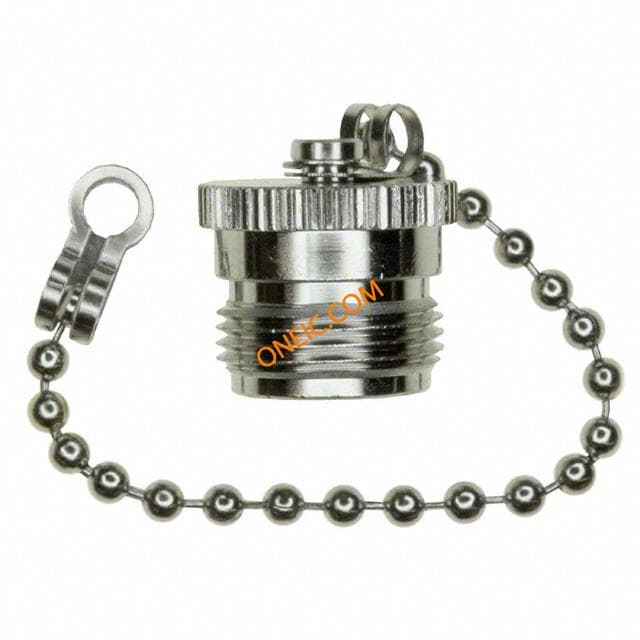

Connector Accessories N Female Cap With Chain Brass Nickel Finish CONN N FEMALE CAP W/CHAIN connector accessory;rf coaxial;n series female cap and 100mm chain;for plugs RF Connector Accessories N JACK CAP AND CHAIN CHAIN CAP, TNC COAXIAL CONNECTOR Coaxial/RF; Cap-w/Chain; N; Protective; Female; Brass; forMaleConnector; Straight
47-20025
amphenol connex
Crimp Die, Standard Coax Dies Punches & Dies DIE 5 CAVITY MINI/UHF BNC/TNC DIE SET .255/.213/.100/.068/.052 DIE 5 CAVITY MINI/UHF BNC/TNC
172103
amphenol connex

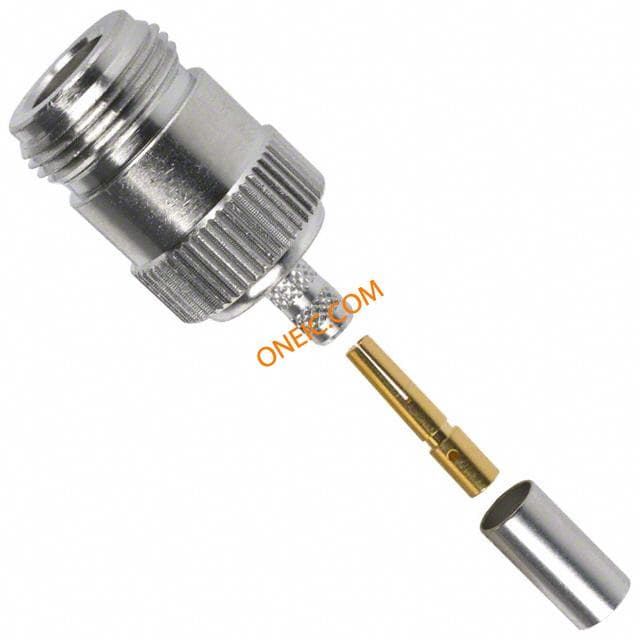

Conn Type N F 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N JACK STR 50 OHM CRIMP connector;rf coaxial;n str crimp jack;captive cont;for rg58;141;LMR195;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT JACK STANDARD CABLE connector, rf coaxial, n str crimp jack, captive cont, for rg58, 141, LMR195, 50 ohm 172103 Type N Female Crimp Connector, Cable Group C, Amphenol
242101
amphenol connex

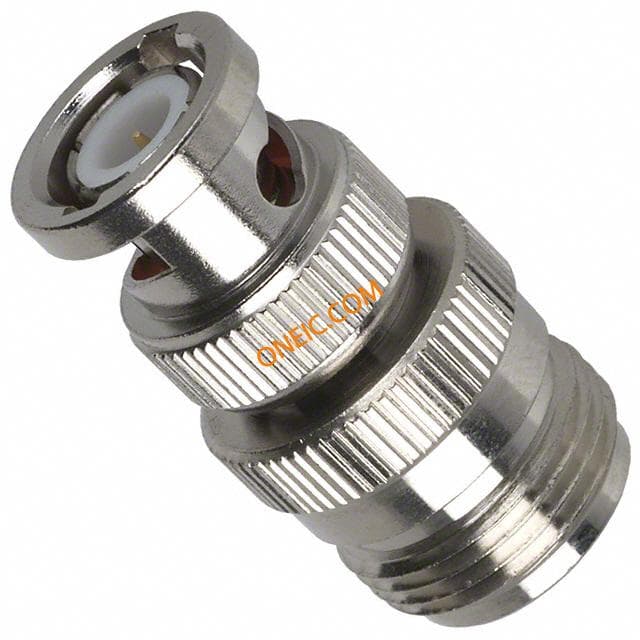

Conn Type N-BNC Adapter F/PL 0Hz to 4GHz 50Ohm ST Gold CONN ADT N JACK-BNC PLUG connector;rf coaxial;between series adapter;n jack to bnc plug RF Adapters - Between Series BNC PLUG TO N JACK ADAPTER RF/COAXIAL ADAPTER, N JACK-BNC PLUG connector, rf coaxial, between series adapter, n jack to bnc plug CONN ADAPT BNC PLUG TO N JACK
