132136
| Manufacturer | |
| Description | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder RA Thru-Hole Gold BNC MHV B/H JACK CONN SMA JACK R/A 50 OHM PCB connector;rf coaxial;sma rt angle jack for p.c. board;4 legs;.050 cont;50 ohm RF Connectors / Coaxial Connectors SMA PCB RECEPTACLE RIGHT ANGLE RF COAXIAL, SMA, JACK, THT, R/A, 50OHM |
| Category |
Business
| MOQ | 1 | Product | PCB Connectors |
| Unit Pack | 1 | Other Names | ACX1232 |
| Part # Aliases | 319-0177 99H5025 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 0 to 18 GHz | Impedance | 50 Ohm |
| Coupling Factor | Threaded | Frequency - Max | 12.4GHz |
Mechanical
| Depth | 15.1 | Height | 9.86 |
| Weight | 0.137568 oz | Packaging | Bulk |
| Cable Type | :- | Body Finish | Gold |
| Orientation | Right Angle | Termination | Solder |
| Weight (g): | 5.20000 | Contact Type | FEMALE |
| Body Material | Brass | Housing Color | Gold |
| Mounting Type | Through Hole | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Threaded |
| Plating - Body | Gold | Connector Style | SMA |
| Contact Material | Beryllium Copper | Length - Overall | 7 |
| Termination Style | PCB - Through Hole | Number of Contacts | 50 |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Right Angle | 1st Connector Mounting Type | :PCB |
Product Info
| Type | SMA | Gender | RCP |
| Series | :- | Polarity | Standard |
| Matchcode | 132136 | Connection Type | PCB |
| Standard Leadtime | 11 weeks | RF Family/Standard | SMA |
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts

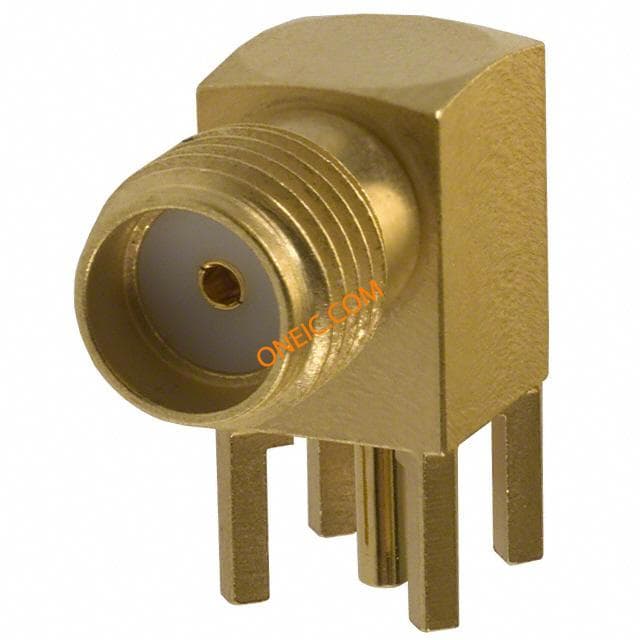

901-143
amphenol
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA JACK R/A 50 OHM PCB connector;rf coaxial;sma rt angle pcb jack recept;4 legs;blunt post terminal connector, rf coaxial, sma rt angle pcb jack recept, 4 legs, blunt post terminal
901-9876-RFX
amphenol
Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;crimp/solder;captive cont;rg58;50 ohm RF Connectors / Coaxial Connectors STRT PLG 58 141 Ni CONNECTOR, QMA, RF COAXIAL, CRIMP
132360
amphenol
Conn SMA Terminator PL 0Hz to 18GHz 50Ohm ST Gold CONN SMA PLUG TERMINATOR 50 OHMS connector accessory;sma plug resistor cap;for jacks and receptacles;50 ohm RF Connectors / Coaxial Connectors SMA MALE RESISTOR CAP 50 OHM RF COAXIAL, SMA, PLUG, 50OHM Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacks/Recep; Straight; 50Ohms
202112-10
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/CHAIN connector accessory;rf coaxial;sma plug cap with chain;for jacks and receptacles RF/COAXIAL CONNECTOR CAP, SMA, JACK, WITH CHAIN 202112-10 SMA Male Cap with Chain,Chain Length: 100mm, Amphenol
132364
amphenol connex
SMA PL CAP-EXT BODY FOR RP JK SMA CAP FOR FEMALE CONNECTOR RF Connector Accessories SMA MALE CAP FOR REV POLARITY JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forFemaleConn; Straight
202112
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/O CHAIN connector accessory;sma dust cap(plug);for unused/open jacks and receptacles RF Connector Accessories SMA MALE CAP CAP, SMA, JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forJacksandRecep; Straight CONN CAP (COVER) FOR SMA JACKS

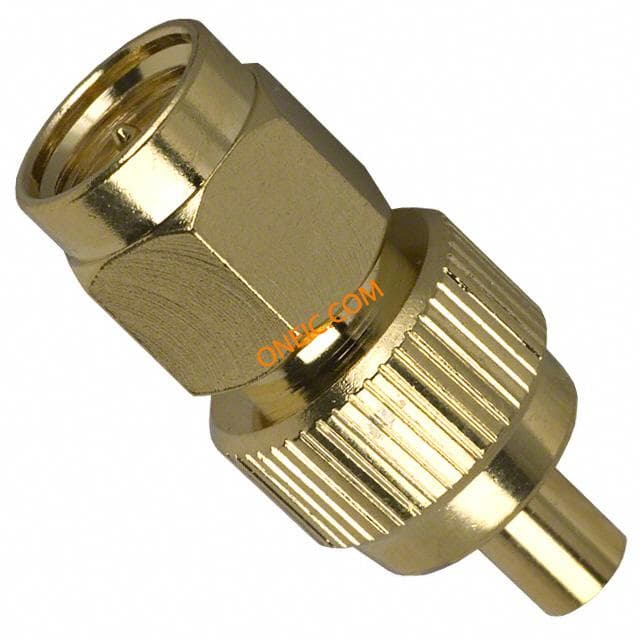

242140
amphenol connex
Conn SMA-MMCX Adapter PL/PL ST Gold CONN ADT SMA PLUG/MMCX JACK connector;rf coaxial;between series adapter;sma plug to mmcx jack RF Adapters - Between Series SMA PLUG TO MMCX JACK ADAPTER ADAPTOR, SMA-MMCX, RF COAXIAL connector, rf coaxial, between series adapter, sma plug to mmcx jack
132136
amphenol connex
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder RA Thru-Hole Gold BNC MHV B/H JACK CONN SMA JACK R/A 50 OHM PCB connector;rf coaxial;sma rt angle jack for p.c. board;4 legs;.050 cont;50 ohm RF Connectors / Coaxial Connectors SMA PCB RECEPTACLE RIGHT ANGLE RF COAXIAL, SMA, JACK, THT, R/A, 50OHM

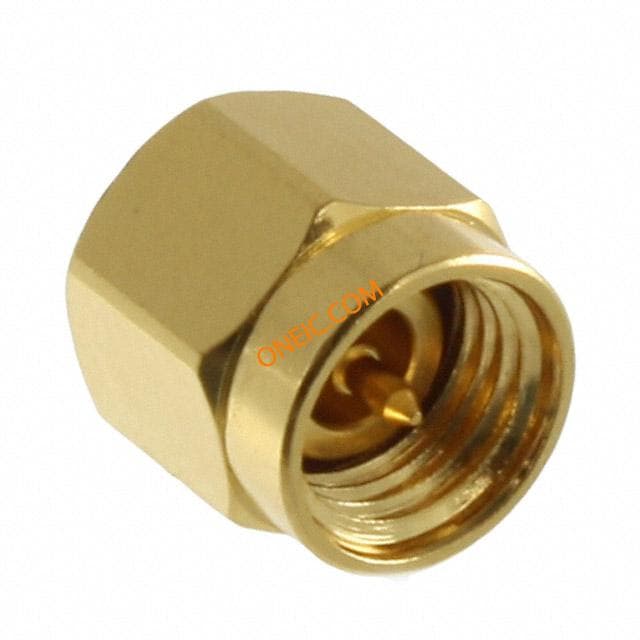

132331
amphenol connex
Connector Accessories SMA Male Shorting Cap Brass Gold Finish CONN PLUG SMA SHORTING CAP connector accessory;rf coaxial;sma male shorting cap for jacks and receptacles RF Connectors / Coaxial Connectors SMA MALE SHORTING CAP RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacksandRecep; Straight
31-5137
Amphenol RF
RF Connectors SRT. TWIST PLG RG-58 connector;rf coaxial;bnc straight plug;suretwist;for rg/u 58b cable;50 ohm RF Connectors / Coaxial Connectors SRT. TWIST PLG RG-58 RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP
132113
Amphenol Connex
RF Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg 58;141;LMR195 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD RF COAXIAL, SMA, PLUG, CRIMP, 50OHM connector, rf coaxial, sma str crimp plug, for rg 58, 141, LMR195 cable, 50 ohm 132113 SMA Male Crimp Connector, Cable Group C, Amphenol

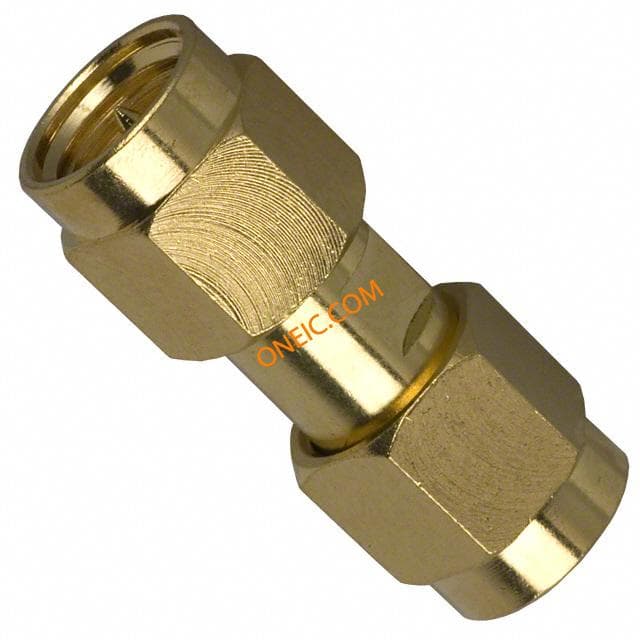

132168
