132133
| Manufacturer | |
| Description | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA PLUG STR 50 OHM PCB RF Connectors / Coaxial Connectors SMA STRAIGHT PCB PLUG RF/COAXIAL, SMA PLUG, STR 50OHM, THT connector, rf coaxial, sma straight pcb receptacle plug, 4 legs |
| Category |
Business
| Product | PCB Connectors | Part # Aliases | 319-0331 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 18 GHz | Impedance | 50 Ohm |
| Coupling Factor | Threaded | Frequency - Max | 18GHz |
Mechanical
| Weight | 0.01038 | Packaging | Bulk |
| Cable Type | :- | Body Finish | Gold |
| Orientation | Straight | Termination | Solder |
| Body Material | Brass | Housing Color | Gold |
| Mounting Type | Through Hole | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Threaded | Housing Finish | Gold |
| Connector Style | SMA | Connector Usage | Threaded |
| Contact Material | Brass | Housing Material | Brass |
| Primary Material | SMA | Termination Style | PCB - Through Hole |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | SMA | Gender | PL |
| Series | :- | Polarity | Standard |
| Connection Type | PCB | RF Family/Standard | SMA |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts

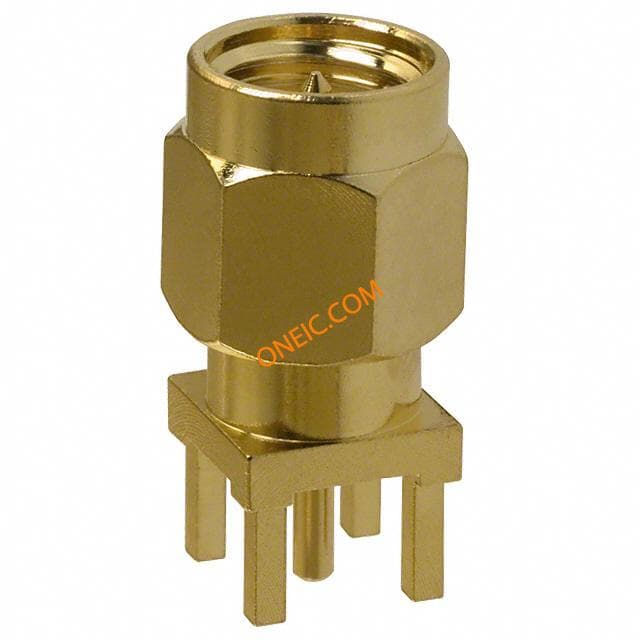

901-9895-RFX
amphenol
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA PLUG STR 50 OHM PCB connector;rf coaxial;sma pcb plug recept;4 legs;blunt post terminal;gold plt RF Connectors / Coaxial Connectors PC STRT PLG TFE GLD connector, rf coaxial, sma pcb plug recept, 4 legs, blunt post terminal, gold plt

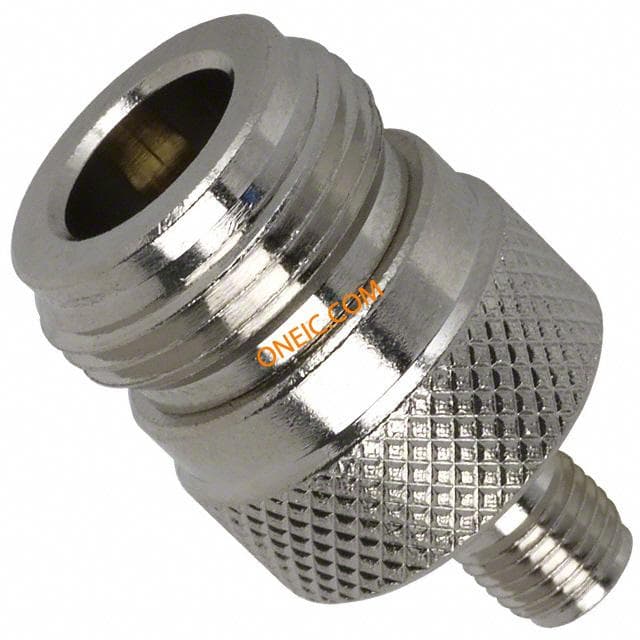

242115
amphenol connex
Conn SMA-Type N Adapter F/F 0Hz to 11GHz 50Ohm ST Gold CONN ADT SMA JACK-N JACK connector;rf coaxial;between series adapter;sma jack to n jack RF Adapters - Between Series SMA JACK TO N JACK ADAPTER RF/COAXIAL ADAPTER, SMA JACK-N JACK connector, rf coaxial, between series adapter, sma jack to n jack

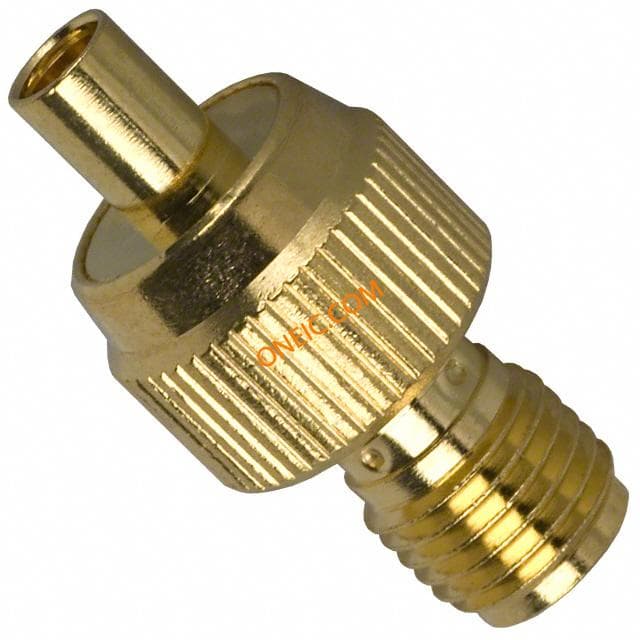

242143
amphenol connex
Conn SMA-MMCX Adapter F/F 0Hz to 6GHz 50Ohm ST Gold CONN ADT SMA JACK/MMCX JACK connector;rf coaxial;between series adapter;sma jack to mmcx jack RF Adapters - Between Series Adapter SMA Jack To MMCX Jack ADAPTOR, SMA-MMCX, RF COAXIAL connector, rf coaxial, between series adapter, sma jack to mmcx jack
132133
amphenol connex
Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA PLUG STR 50 OHM PCB RF Connectors / Coaxial Connectors SMA STRAIGHT PCB PLUG RF/COAXIAL, SMA PLUG, STR 50OHM, THT connector, rf coaxial, sma straight pcb receptacle plug, 4 legs
132348
amphenol connex
Connector Accessories SMA Female Cap with Chain Brass Gold Finish RF Connectors SMA FEMALE CAP WITH CHAIN CONN FEMALE CAP W/CHAIN SMA RF Connector Accessories SMA FEMALE CAP WITH CHAIN Coaxial/RF; Cap-w/Chain; SMA; Protective; Male; Brass; forSMAFemale; Straight
132134
Amphenol Connex
RF Connectors SMA STRAIGHT PCB RECEPTACLE Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA JACK STR 50 OHM PCB connector;rf coaxial;sma str jack for p.c.board;4 legs;.050 center cont;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PCB RECEPTACLE RF COAXIAL, SMA JACK, THT, 50OHM connector, rf coaxial, sma str jack for p.c.board, 4 legs, .050 center cont, 50 ohm
132169
Amphenol Connex
RF Adapters - In Series SMA ST JACK TO JACK ADAPTER Conn SMA Adapter RCP/RCP 50Ohm ST Gold CONN SMA ADAPTER JACK-JACK connector;rf coaxial;sma in-series adapter;straight jack to jack;50 ohm RF COAXIAL, SMA JACK TO JACK, 50OHM connector, rf coaxial, sma in-series adapter, straight jack to jack, 50 ohm CONN ADAPT JACK-JACK SMA 50 OHM

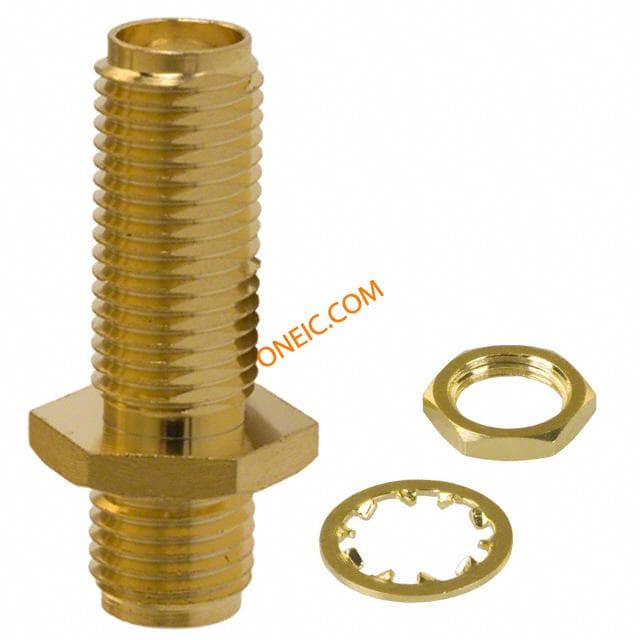

132170
Amphenol Connex
RF Adapters - In Series SMA JACK TO JACK BULKHEAD ADAPTER Conn SMA Adapter RCP/RCP 50Ohm ST Panel Mount Gold CONN SMA ADPT JACK-JACK BULKHEAD connector;rf coaxial;sma in-series adapter;jack to jack bulkhead feedthru;50 ohm ADAPTER, SMA JACK, SMA JACK, 50OHM connector, rf coaxial, sma in-series adapter, jack to jack bulkhead feedthru, 50 ohm CONN ADAPT JACK-JACK SMA 50 OHM

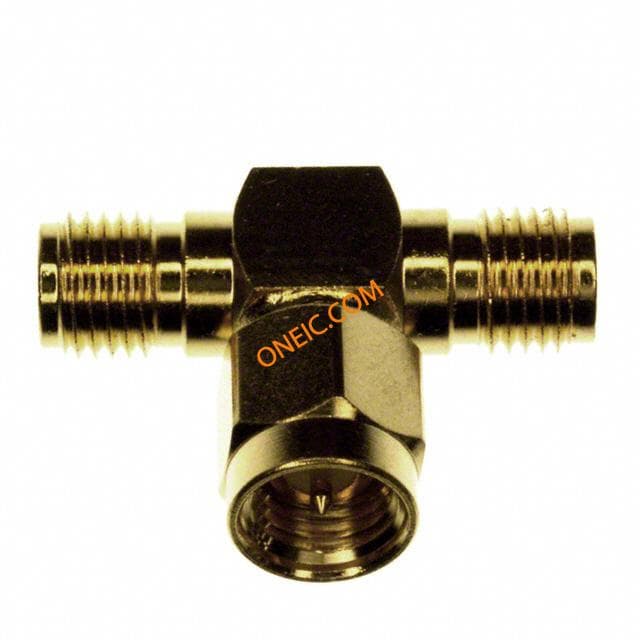

132217
