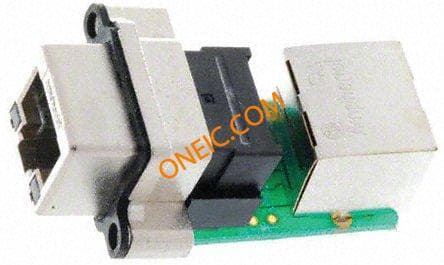

MRJ-5780-01
| Manufacturer | |
| Description | Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 W/RJ45 TERMINAT COUPLER MODULAR 8POS-8POS connector;rj45 receptacle;pcb mount;right angle;w/rj 45 termination;no leds;ip67 RECEPTACLE, RJ45, R/A, CAT5E, 1PORT connector, rj45 receptacle, pcb mount, right angle, w/rj 45 termination, no leds, ip67 |
| Category |
Business
| Other Names | MRJ578001 | Part # Aliases | 01M3135 720-3126 |
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 100 V | Current Rating (Max) | 1.5 A |
Mechanical
| Color | Black | Weight | 0.018 |
| Shielding | Shielded | Weight (g): | 2.40000 |
| Mounting Type | Panel Mount; Through Hole, Right Angle | Angle of Throw | Right |
| Connector Type | :RJ45 | Contact Finish | Gold |
| Contact Material | Phosphor Bronze | Housing Material | Metal |
| Primary Material | Modular | Number of Contacts | :8 |
| Contact Termination | :Through Hole Right Angle | Shell Material, Finish | Zinc, Nickel Plated |
| Contact Finish Thickness | 50µin (1.27µm) | ||
Product Info
| Type | Coupler | Gender | Female |
| Series | MRJ | USOC Codes | RJ45 |
| Performance | Cat 5 | Manufacturer | MRJ |
| Specifications | RJ45 | Number of Ports | 1 |
| Performance Category | Cat 5e | Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) | ||
Environmental
| Ratings | Cat5e | Seal Rating | IP67 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
