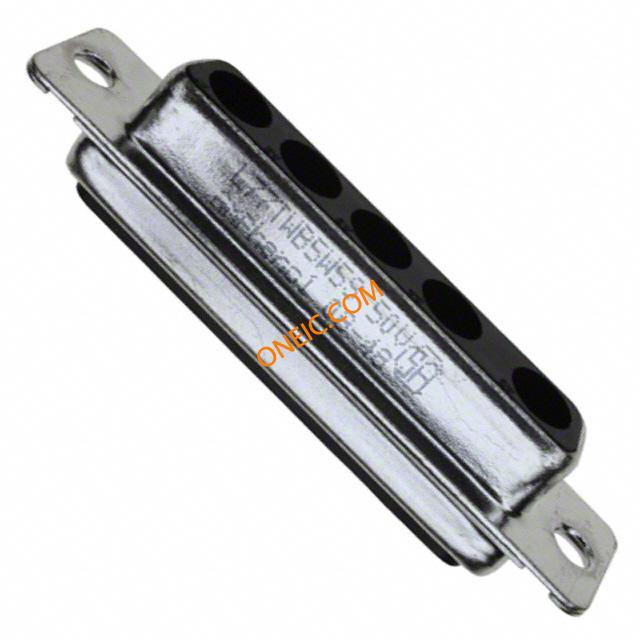

L77TWB5W5S
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 5W5 RECPT COMBO D-SUB RCPT 5W5 HOUSING CONNECTOR, D SUB COMBO, RECEPTACLE, 5POS |
| Category |
Business
| Part # Aliases | 01M2654 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Current Rating (Max) | 7.5 A | ||
Mechanical
| Color | Black | Weight | 0.009 |
| Packaging | Bulk | Shell Size | B |
| Contact Type | Power | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Receptacle for Female Contacts |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub, Combo |
| Insertion Angle | :DB-5W5 | Material - Body | :Metal |
| Contact Material | Bronze | Termination Style | Solder |
| Number of Contacts | :5 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic, Glass Filled | Number of Positions | 5 (Power) |
| Shell Material, Finish | Steel, Tin Plated | Contact Layout, Typical | 5W5 |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | :TW | ||
Environmental
| Mating Cycles | 200 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
L717TWB5W5P
Amphenol Commercial Products
D-Sub Mixed Contact Connectors 5W5 PLUG COMBO CONN D-SUB PLUG 5W5POS HOUSING CONNECTOR, D SUB COMBO, PLUG, 5POS
17E-1657-25
Amphenol Commercial Products
D-Sub Backshells 25P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB25 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 25;hd44 con Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 25 POS Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17ESeries; Die-CastMetal; 0.525in.CblDia

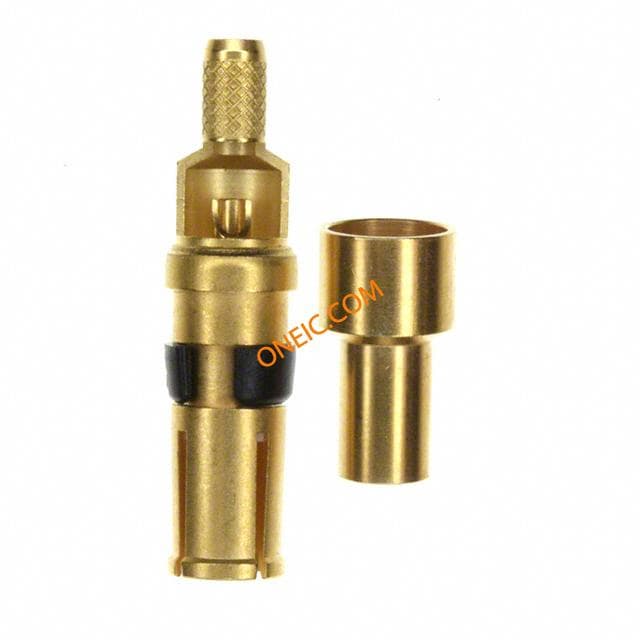

L17DM537421
Amphenol Commercial Products
D-Sub Contacts Inner SolderCup crmp Ferrule ST Socket D-SUB SOCKET STR CRIMP FERRULE D SUB CONTACT, SOCKET, CRIMP

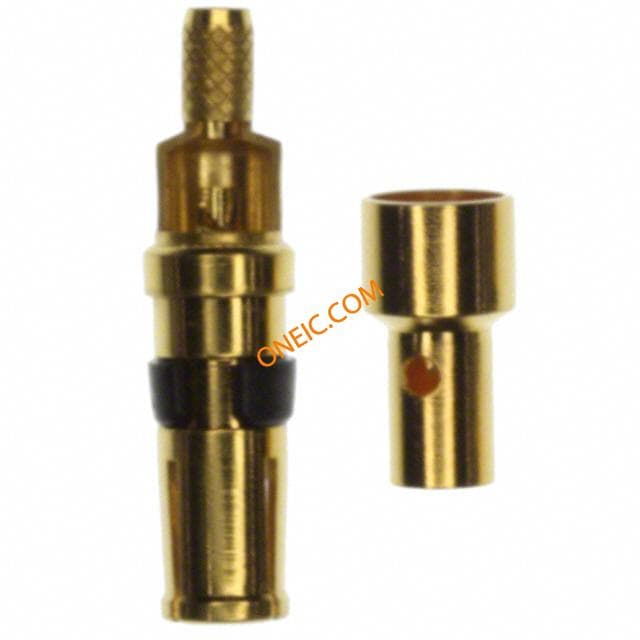

L17DM537425001
Amphenol Commercial Products
D-Sub Contacts Inner SolderCup Ferrule ST Socket D-SUB SOCKET STR CRIMP FERRULE

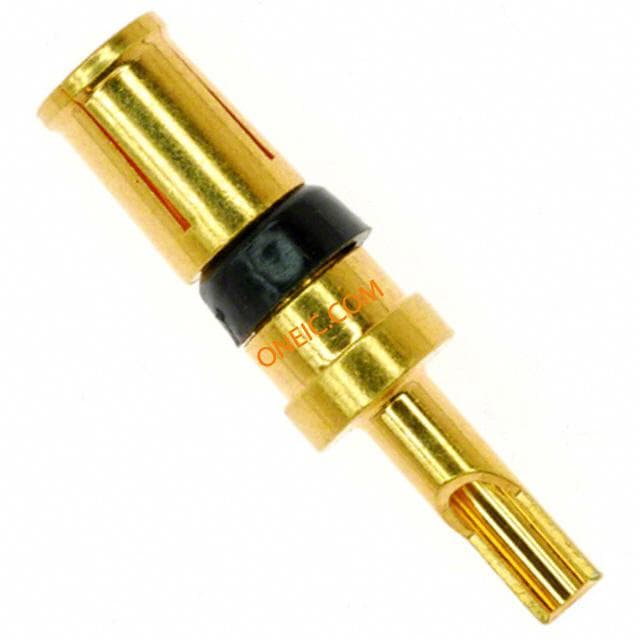

L17DM537447
amphenol canada, corp.
Contact SKT Solder ST CONN D-SUB SOCKET 14AWG SLD GOLD Solder cup power contact female 20A Amphenol 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L17DM537441
amphenol canada, corp.
Contact SKT Solder Cup ST Cable Mount D-Sub Contacts 40A HI-PWR RECPT CONN D-SUB SOCKET 6AWG SLD GOLD Solder cup power contact female 40A SLDCUPPWRCONTFEMA40A Amphenol 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点

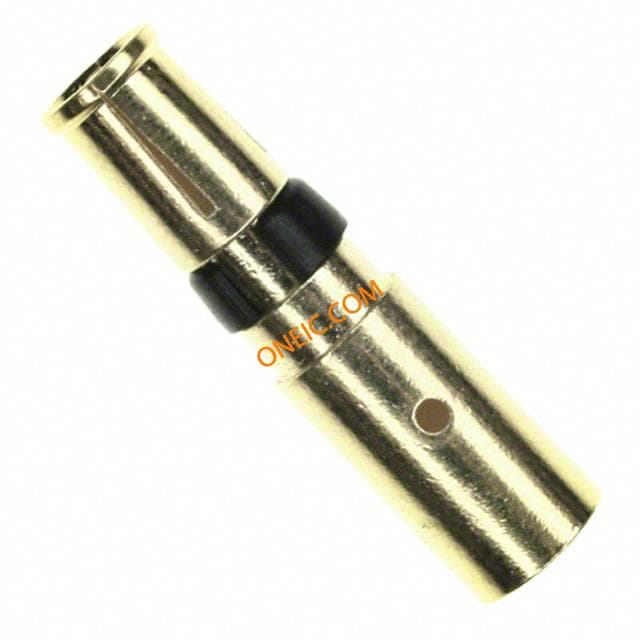

L17DM53744201
amphenol canada, corp.
Contact SKT Crimp ST CONN D-SUB SOCKET 6AWG CRMP GOLD

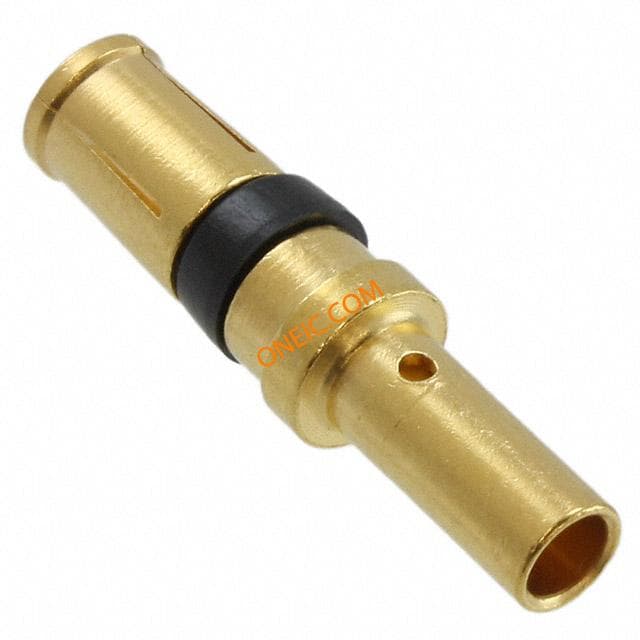

L17DM53744206
amphenol canada, corp.
Contact SKT Crimp ST D-Sub Contacts 20-30A Crimp;Hybrid Straight Socket CONTACT CRIMP D-SUB SKT 20-30A
L17DM537446
Amphenol Corporation
Contact SKT Solder ST

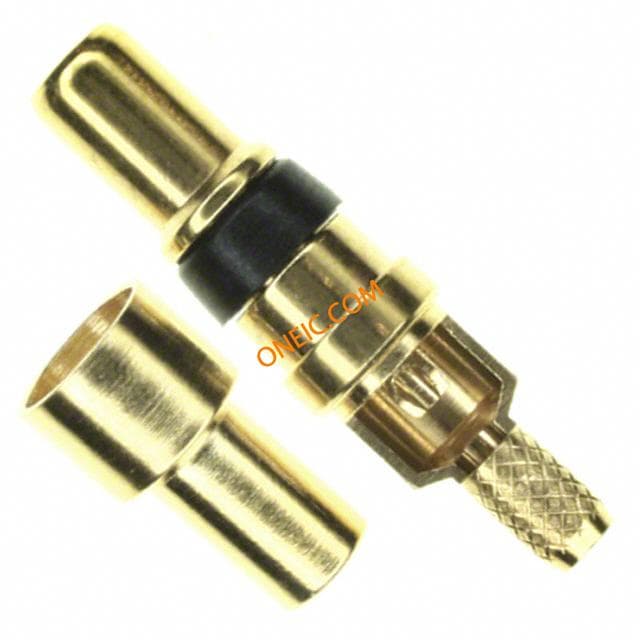

L17DM537405001
