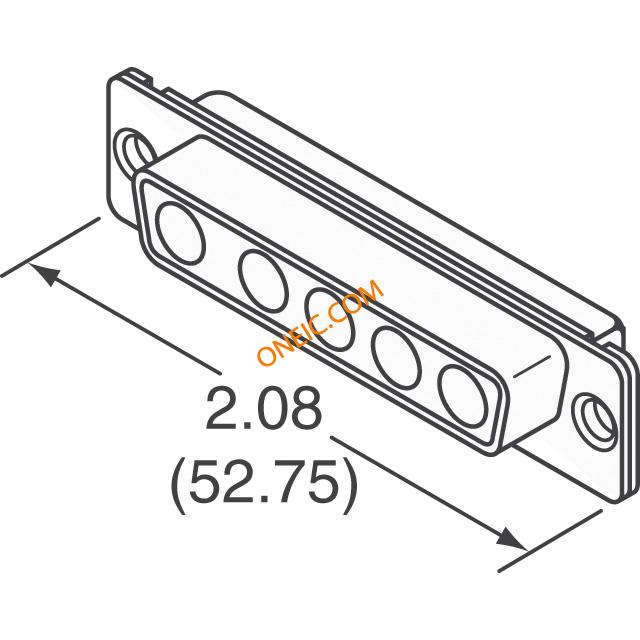

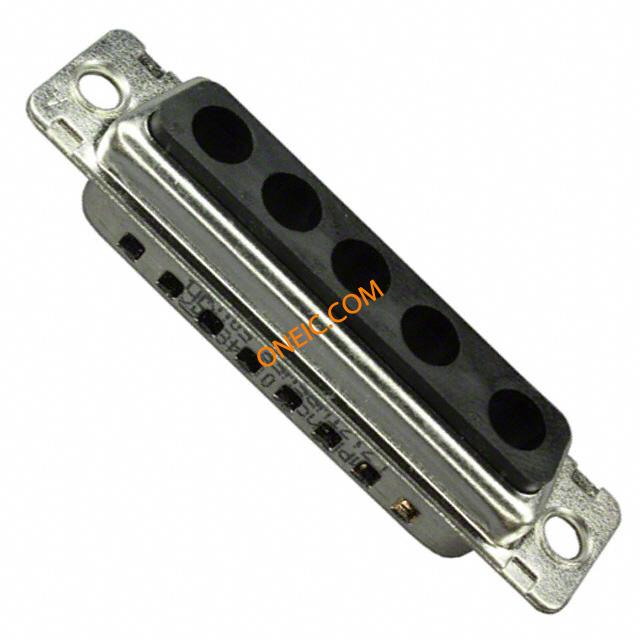

L717TWB5W5P
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 5W5 PLUG COMBO CONN D-SUB PLUG 5W5POS HOUSING CONNECTOR, D SUB COMBO, PLUG, 5POS |
| Category |
Business
| Part # Aliases | 01M1562 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Voltage Rating | 300 V | Current Rating (Max) | 7.5 A |
Mechanical
| Color | Black | Weight | 0.005 |
| Packaging | Bulk | Shell Size | B |
| Contact Type | Power | Body Material | :Steel |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Tin |
| Connector Type | Plug for Male Contacts | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub, Combo | Insertion Angle | :DB-5W5 |
| Material - Body | :Metal | Contact Material | Brass |
| Termination Style | Solder | Number of Contacts | :5 |
| Contact Termination | :Solder | Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 5 (Power) | Shell Finish Thickness | 100µin (2.54µm) |
| Shell Material, Finish | Steel, Tin Plated | Contact Layout, Typical | 5W5 |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | :TW | Features | Grounding Indents |
Environmental
| Mating Cycles | 200 | Operating Temperature | -55°C ~ 155°C |
Documents & Media
Similar Parts
L17DM537457
amphenol canada, corp.
Contact PIN Solder ST D-Sub Contacts DSUB COMM ACC CONN S-SUB PIN 14AWG SOLDER GOLD Solder cup power contact male 30A L17DM537457 Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L77TWB5W5S
Amphenol Commercial Products
D-Sub Mixed Contact Connectors 5W5 RECPT COMBO D-SUB RCPT 5W5 HOUSING CONNECTOR, D SUB COMBO, RECEPTACLE, 5POS
17E-1657-25
Amphenol Commercial Products
D-Sub Backshells 25P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB25 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 25;hd44 con Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 25 POS Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17ESeries; Die-CastMetal; 0.525in.CblDia
L17DM537451
Amphenol Commercial Products
D-Sub Contacts 30-40A Solder Cup Straight Pin Hybrid CONN D-SUB PIN 6AWG SOLDER GOLD Solder cup power contact male 40A L17DM537451 Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L17DM53745207
Amphenol Commercial Products
D-Sub Contacts 20-30A Crimp Straight Pin Hybrid CONTACT CRIMP D-SUB PLUG 20-30A
L17DM537401
amphenol canada, corp.
Contact PIN Crimp ST Cable Mount D-Sub Contacts COAX PLG CRIMP CNT D-SUB PIN STR SHIELDED CRIMP D SUB CONTACT, PIN, CRIMP

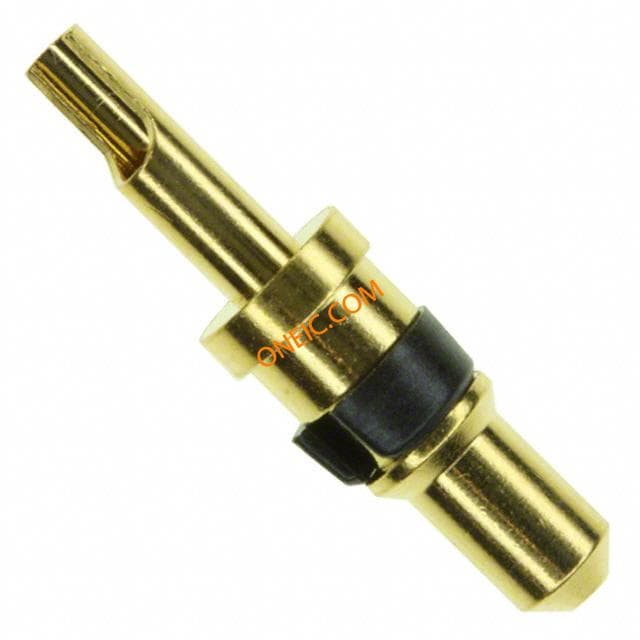

L17DM537458
