G17S5000110EU
| Manufacturer | |
| Description | D-Sub Standard Connectors 50P RECPT SOLDER CUP FIXED PRECISION CONN D-SUB 50POS SKT SOLDER D SUB CONNECTOR, STANDARD, 50POS, RCPT |
| Category |
Business
| Part # Aliases | 96K5468 | Product Category | D-Sub Standard Connectors |
| Standard Package | 5,000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :AMPHENOL - G17S Series | Voltage Rating | 250V |
| Current Rating (Max) | 5 A | ||
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Shell Size | :DD | Termination | Solder Cup |
| Contact Type | Signal | Body Material | :Steel |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 50 |
| Contact Termination | :Solder | Number of Positions | 50 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 5 (DD, D) | ||
Product Info
| Gender | Female | Series | D-DF |
Documents & Media
Similar Parts

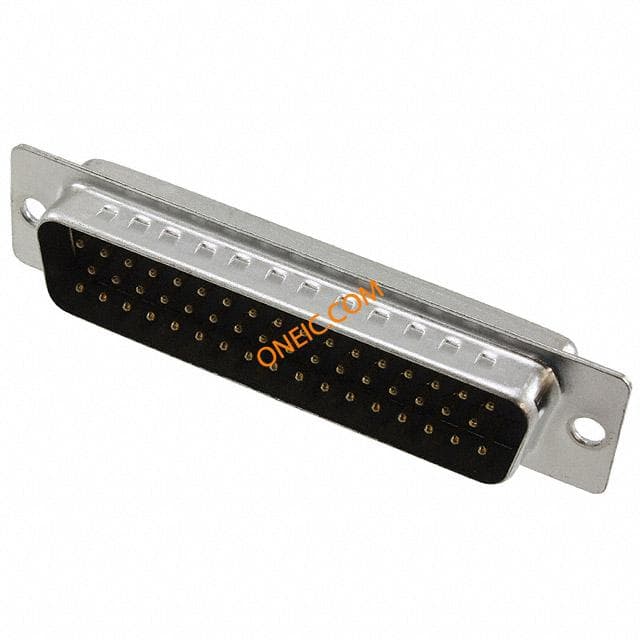

L717SDD50P
amphenol canada, corp.
Conn D-Subminiature PIN 50 POS 2.77mm Solder Cup ST Panel Mount 50 Terminal 1 Port D-Sub Standard Connectors Male 50P solder cup tinned shell CONN D-SUB PLUG 50POS SLD CUP
17E-1728-2
Amphenol Commercial Products
D-Sub Backshells 50P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB50 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 50/hd 78 cont Hood; D-Sub; 50STDPos, 78HDPos; STRExit; 17E Series; MetallizedPlastic; 0.726In.CblDia
17E-1728-1
Amphenol Commercial Products
D-Sub Backshells 50P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB50 BLK PLASTIC connector accessory;d-sub;2-piece black plastic str hood;for std 50/hd 78 cont Hood; D-Sub; 50STDPos, 78HDPos; STRExit; 17E Series; Plastic; 0.726In.CblDia
17E165750
Amphenol Commercial Products
D-SUB BACKSHELL DIE CAST 50POS BACKSHELL, DSUB, SIZE D, 17E SERIES
