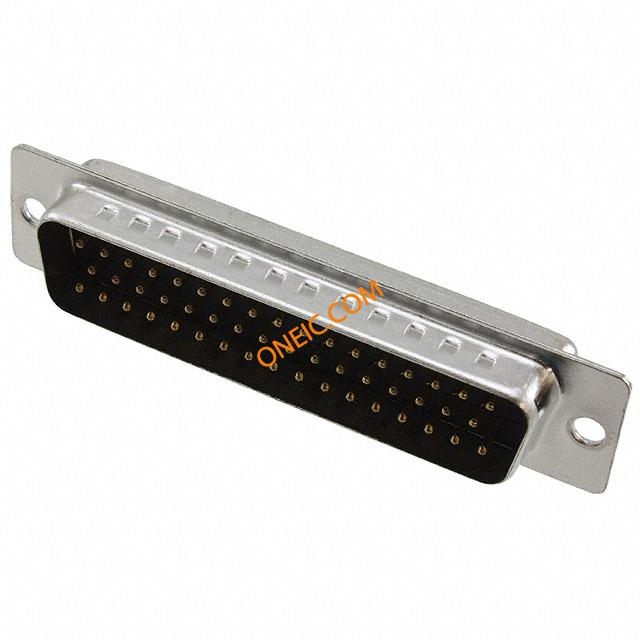

L717SDD50P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 50 POS 2.77mm Solder Cup ST Panel Mount 50 Terminal 1 Port D-Sub Standard Connectors Male 50P solder cup tinned shell CONN D-SUB PLUG 50POS SLD CUP |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 01M1371 | Product Category | D-Sub Standard Connectors |
| Standard Package | Trays | Factory Pack Quantity | 40 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 5A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 15.3 mm |
| Pitch | 2.77 mm | Height | 15.37 mm |
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Panel Mount |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 3 | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 67.06 mm | 1st Contact Gender | PIN |
| Number of Contacts | 50 | Number of Positions | 50 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 5 (DD, D) | ||
Product Info
| Type | D-Subminiature | Gender | PIN |
| Features | Grounding Indents | Number of Ports | 1 |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
