G17S3710110EU
| Manufacturer | |

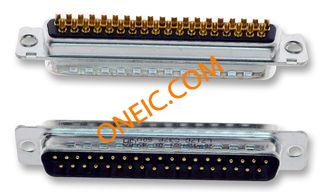

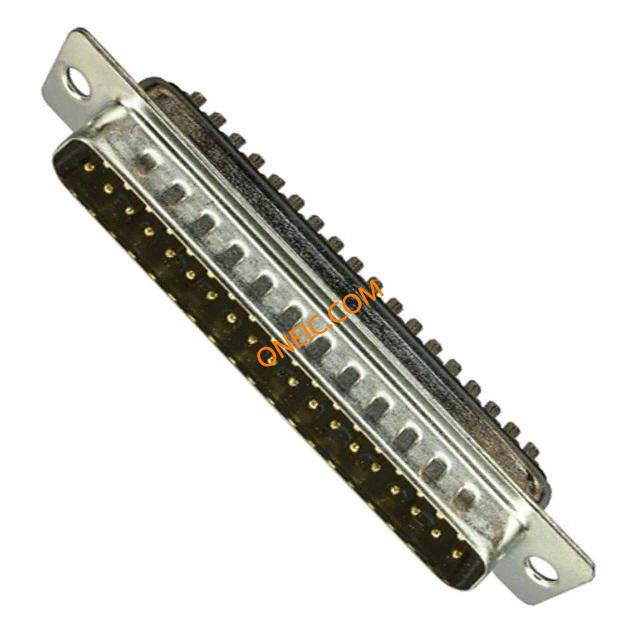

| Description | D-Sub Standard Connectors 37P PLUG SOLDER CUP FIXED PRECISION CONN D-SUB PLUG 37POS GOLD FLASH D SUB, RECEPTACLE, 37WAY, PIN Conn; D-Sub; Panel Plug; 37-Pin; G17S Series; SolderPot; Metal Shell |
| Category |
Business
| Part # Aliases | 03M8101 | Product Category | D-Sub Standard Connectors |
| Standard Package | 32 | Factory Pack Quantity | 32 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Range deg/s | :AMPHENOL - G17 Series | Voltage Rating | 250V |
| Current Rating (Max) | 5 A | ||
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Shell Size | :DC | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 37 |
| Contact Termination | :Solder | Number of Positions | 37 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 4 (DC, C) | ||
Product Info
| Gender | Male | Series | D-DF |
