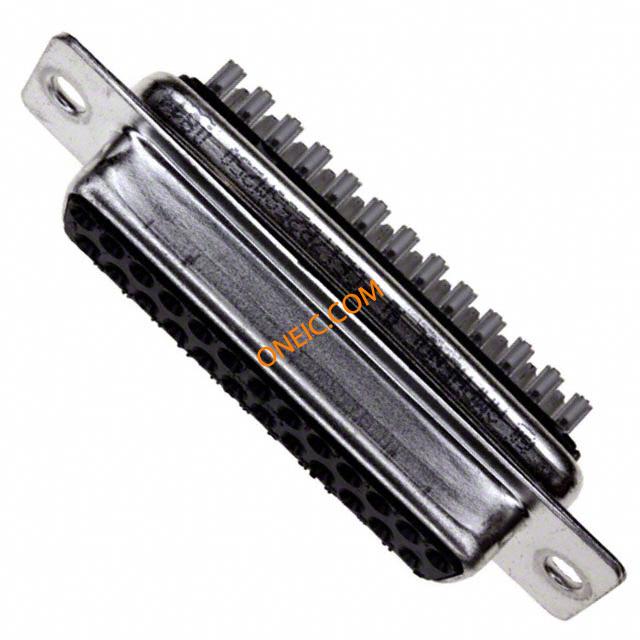

FCE17-B25SM-250
| Manufacturer | |
| Description | D-Sub Standard Connectors .120 25P SOLDER CUP SOCKET 1000 PF FILTER D-SUB 25POS SCKT SLD CUP 25w Filter D, solder cup, skt, 1000 pF SOCKET, DSUB, 1000PF, STRT, 25WAY Female D-Sub connector 25P, FCE17-B25SM-250, Amphenol Amphenol FCE17 系列 面板安装 DB25 25 路 滤波焊接 D-Sub 连接器 插座 , 5A |
| Category |
Business
| Other Names | FCE17B25SM250 | Product Category | D-Sub Standard Connectors |
| Standard Package | 40 | Factory Pack Quantity | 40 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
Electrical
| Capacitance | :1000pF | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Depth | 16.73mm |
| Pitch | 2.76 mm | Width | 12.55mm |
| Length | 53.04mm | Weight | 0.011 |
| Packaging | Tray | Shell Size | B |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic, Glass Filled |
| Size / Dimension | 53.04 x 12.55 x 16.73mm | Termination Style | Solder |
| Number of Contacts | 25 | Contact Termination | :Solder |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 15µin (0.38µm) | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Gender | Female | Series | :- |
| Features | Filter | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
