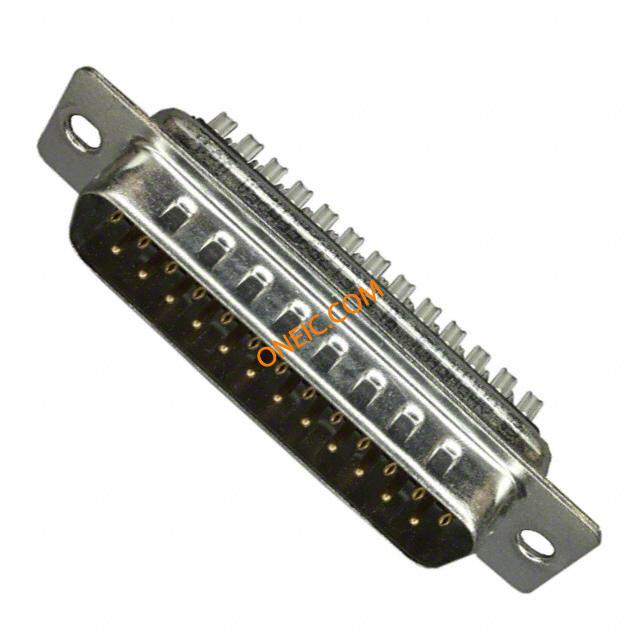

FCE17-B25PM-250
| Manufacturer | |
| Description | FILTER D-SUB 25POS PIN SLD CUP 25w Filter D Solder cup, pins, 1000 pF PLUG, DSUB, 1000PF, STRT, 25WAY Male D-Sub connector 25P, FCE17-B25PM-250, Amphenol Amphenol FCE17 系列 面板安装 DB25 25 路 滤波焊接 D-Sub 连接器 插头 , 5A |
| Category |
Business
| Other Names | FCE17B25PM250 | Standard Package | 40 |
Compliance
| RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Capacitance | :1000pF | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Depth | 16.48mm |
| Width | 12.55mm | Length | 53.04mm |
| Weight | 0.011 | Packaging | Tray |
| Shell Size | :DB | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 2 |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic, Glass Filled |
| Size / Dimension | 53.04 x 12.55 x 16.48mm | Number of Contacts | 25 |
| Contact Termination | :Solder | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 15µin (0.38µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Gender | Male | Series | :- |
| Features | Filter, Grounding Indents | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
