MRJ-5381-01
| Manufacturer | |
| Description | Conn Modular Jack F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port CONN MOD JACK R/A 8P8C connector;rj45 receptacle;pcb mount;right angle;leds green(L)/yellow(R);ip67 Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 YEL/GRN LED NKL RECEPT, RJ45, R/A, Y/R, CAT5E, 1PORT connector, rj45 receptacle, pcb mount, right angle, leds green(L)/yellow(R), ip67 Socket; RJ45; with LED; UL94V-0; IP67; THT; for panel mounting 08P RUGGED RJ PCB MOUNT |
| Category |
Business
| Other Names | MRJ538101 | Part # Aliases | 01M3132 720-3122 |
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Trays |
| Factory Pack Quantity | 30 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 100 V | Current Rating (Max) | 1.5 A |
| Connector - Voltage Input | with LED | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.014 | LED Color | Green - Yellow |
| Packaging | Bulk | Shielding | Unshielded |
| Orientation | 90° Angle (Right) | Termination | Solder |
| Mounting Type | Through Hole | Tab Direction | Down |
| Connector Type | Jack | Contact Finish | Gold |
| Mounting Style | for panel mounting | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polycarbonate (PC) |
| Package Quantity | 30 | Connector - Cable | socket |
| Number of Contacts | 8 | Contact Termination | :Through Hole Right Angle |
| Mounting Hole Spacing | 24mm | Mounting Hole Diameter | 3.2mm |
| Thread/Screw/Hole Size | UNC4-40 | Contact Finish Thickness | 50µin (1.27µm) |
Product Info
| Spg | 30 | Type | Modular Jack |
| Gender | F | Series | MRJ |
| Features | Board Guide | Number of Ports | 1 |
| Number of Units | 1 | Performance Category | Cat 5e |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
Similar Parts

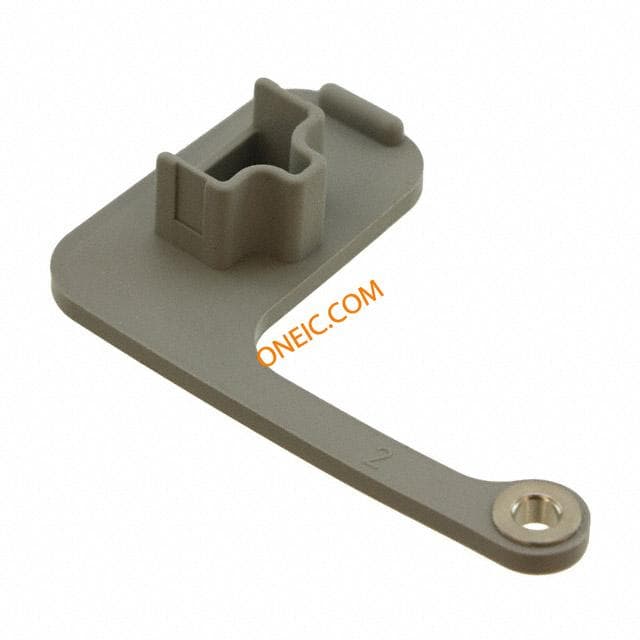

MRJ-2586-10BP
amphenol canada, corp.
Connector Accessories Dust Cover For Receptacle Connector Gray CONN ACCY DUST CAP GRAY DustCover; Accessory; forRJ45Connector; MRJSeries Protection cover; IP67
MRJ-5381-01
amphenol canada, corp.
Conn Modular Jack F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port CONN MOD JACK R/A 8P8C connector;rj45 receptacle;pcb mount;right angle;leds green(L)/yellow(R);ip67 Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 YEL/GRN LED NKL RECEPT, RJ45, R/A, Y/R, CAT5E, 1PORT connector, rj45 receptacle, pcb mount, right angle, leds green(L)/yellow(R), ip67 Socket; RJ45; with LED; UL94V-0; IP67; THT; for panel mounting 08P RUGGED RJ PCB MOUNT
MRJ-2586-20BP
Amphenol Commercial Products
Modular Connectors / Ethernet Connectors RJ RUGGED DUST COVER CONN ACCY DUST CAP BLACK MRJ SERIES DUST COVER BLACK
MRJ258610BP
Amphenol Commercial Products
モジュラーコネクタ/Ethernetコネクタ RJ45 dust cover Connector Accessories Dust Cover For Receptacle Connector Gray MRJ, Dust cap, receptacles, grey Modular Connectors / Ethernet Connectors RJ45 dust cover DUST CAP, RJ45, GREY connector accessory, rugged i/o, dust cover for rj45 receptacle Amphenol RJ 连接器防尘盖

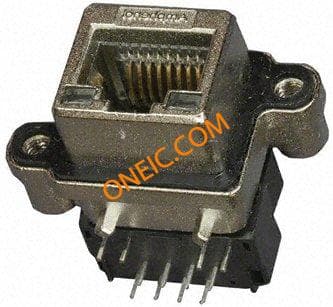

MRJ538101
