点击放大查看

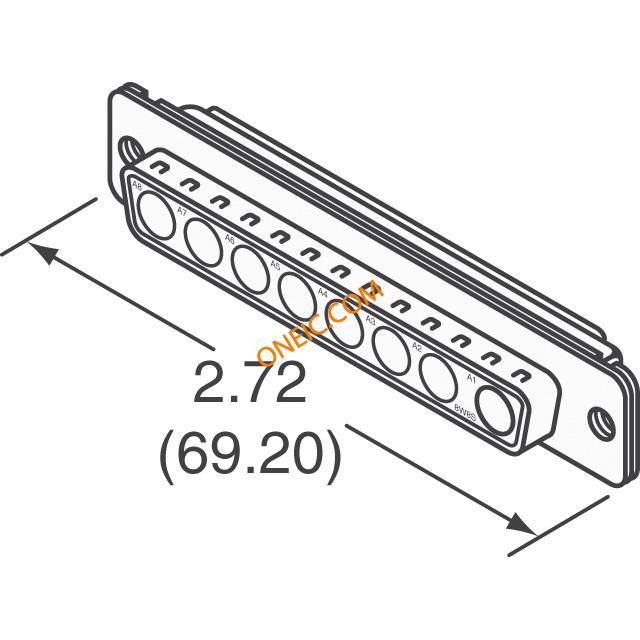

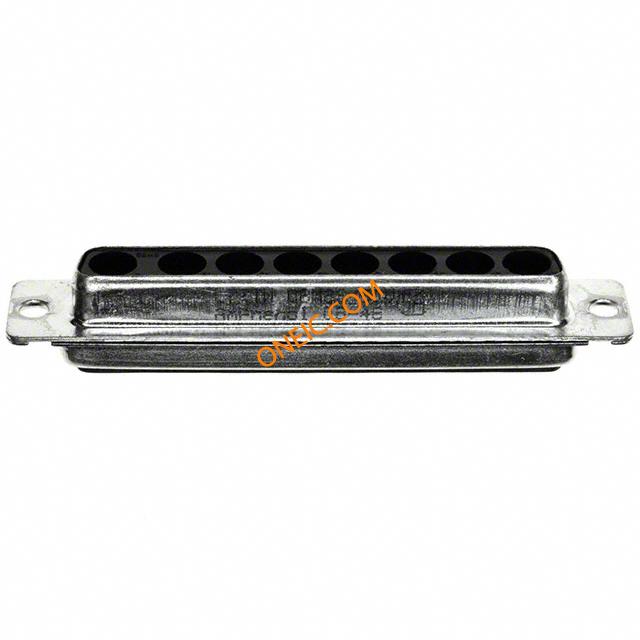

L77TWC8W8S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 8Power POS Solder Cup ST Panel Mount 8 Terminal 1 Port D-Sub Mixed Contact Connectors 8W8 RECPT COMBO D-SUB RCPT 8W8 HOUSING CONNECTOR, D SUB COMBO, RECEPTACLE, 8POS |
| Category |
Business
| Part # Aliases | 99K5383 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | Bag | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 7.5 A | ||
Mechanical
| Color | Black | Weight | 0.009 |
| Packaging | Bulk | Shell Size | C |
| Termination | Solder Cup | Weight (g): | 12.00000 |
| Contact Type | Power | Mounting Type | Panel Mount |
| Shell Plating | Tin | Connector Type | Receptacle for Female Contacts |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub, Combo |
| Insertion Angle | :DC-8W8 | Material - Body | :Metal |
| Contact Material | Bronze | Termination Style | Solder |
| Number of Contacts | 8Power | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic, Glass Filled | Number of Positions | 8 (Power) |
| Shell Finish Thickness | 100µin (2.54µm) | Shell Material, Finish | Steel, Tin Plated |
| Contact Layout, Typical | 8W8 | Shell Size, Connector Layout | 4 (DC, C) - 8W8 |
Product Info
| Note | Contacts Not Provided | Type | D-Subminiature |
| Gender | SKT | Series | :TW |
Environmental
| Mating Cycles | 200 | Operating Temperature | -55°C ~ 155°C |
Documents & Media
Similar Parts
17E-1657-37
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 37 POS D-Sub Backshells 37P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB37 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 37/hd 62 Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17ESeries; Die-CastMetal; 0.726in.CblDia

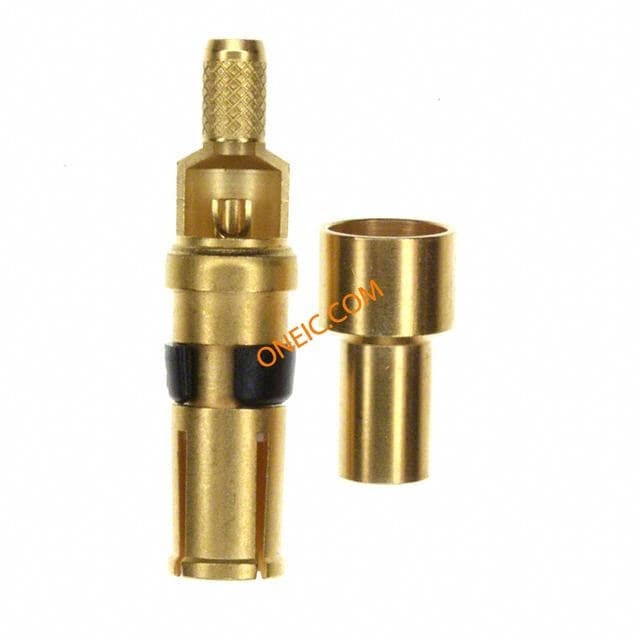

L17DM537421
Amphenol Commercial Products
D-Sub Contacts Inner SolderCup crmp Ferrule ST Socket D-SUB SOCKET STR CRIMP FERRULE D SUB CONTACT, SOCKET, CRIMP

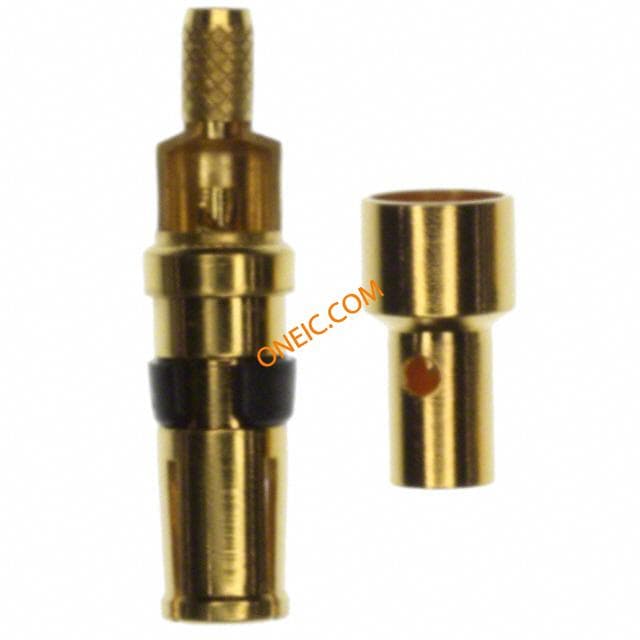

L17DM537425001
Amphenol Commercial Products
D-Sub Contacts Inner SolderCup Ferrule ST Socket D-SUB SOCKET STR CRIMP FERRULE

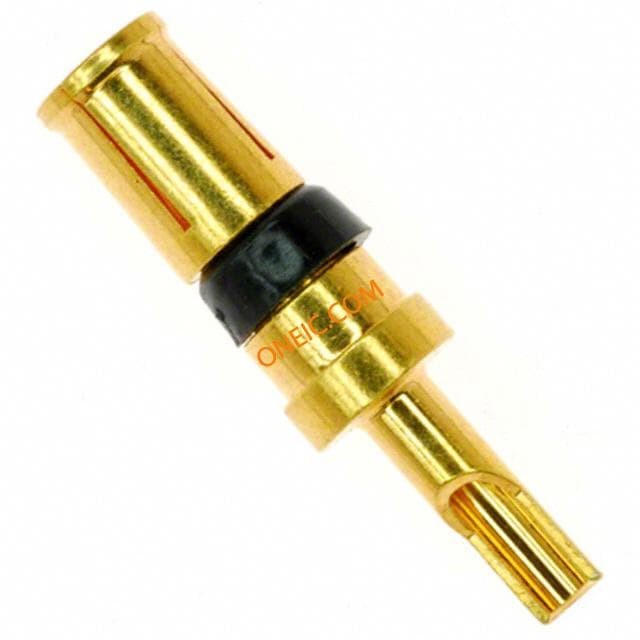

L17DM537447
amphenol canada, corp.
Contact SKT Solder ST CONN D-SUB SOCKET 14AWG SLD GOLD Solder cup power contact female 20A Amphenol 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L17DM537441
amphenol canada, corp.
Contact SKT Solder Cup ST Cable Mount D-Sub Contacts 40A HI-PWR RECPT CONN D-SUB SOCKET 6AWG SLD GOLD Solder cup power contact female 40A SLDCUPPWRCONTFEMA40A Amphenol 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点

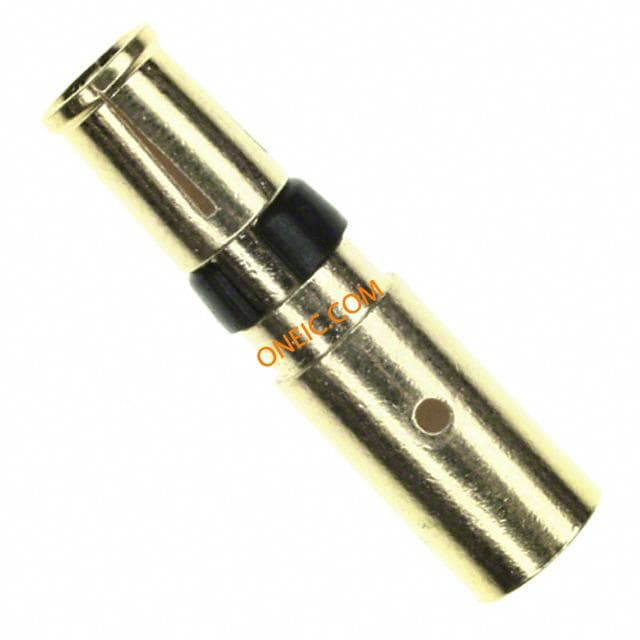

L17DM53744201
amphenol canada, corp.
Contact SKT Crimp ST CONN D-SUB SOCKET 6AWG CRMP GOLD

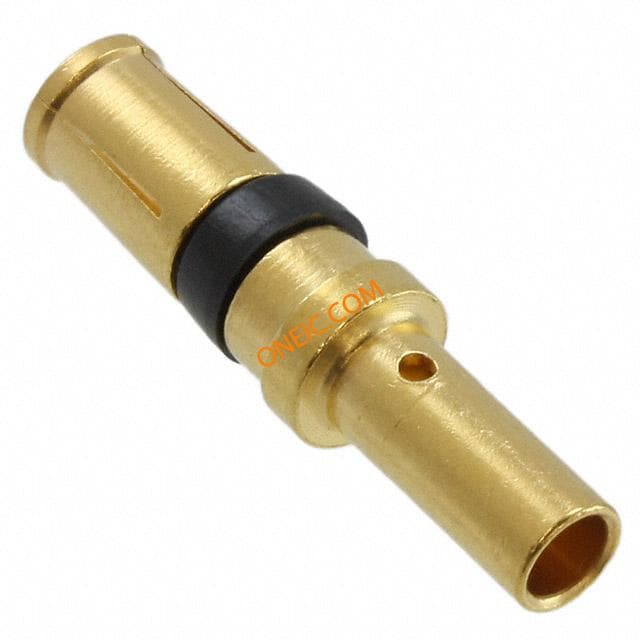

L17DM53744206
