点击放大查看

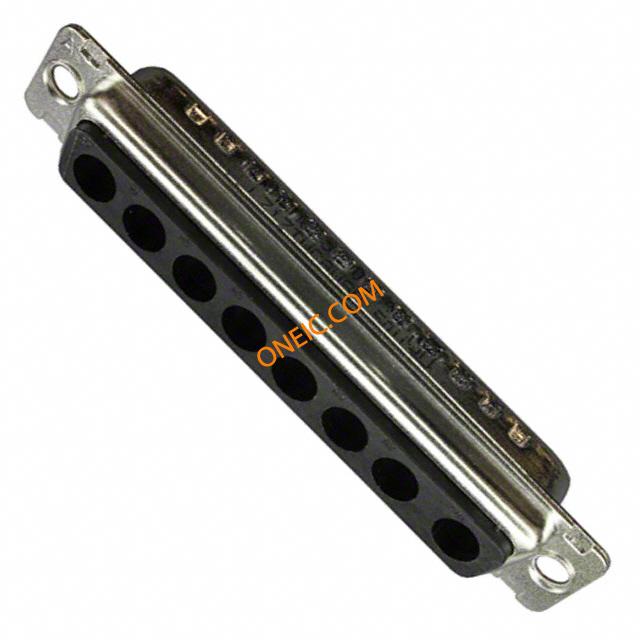

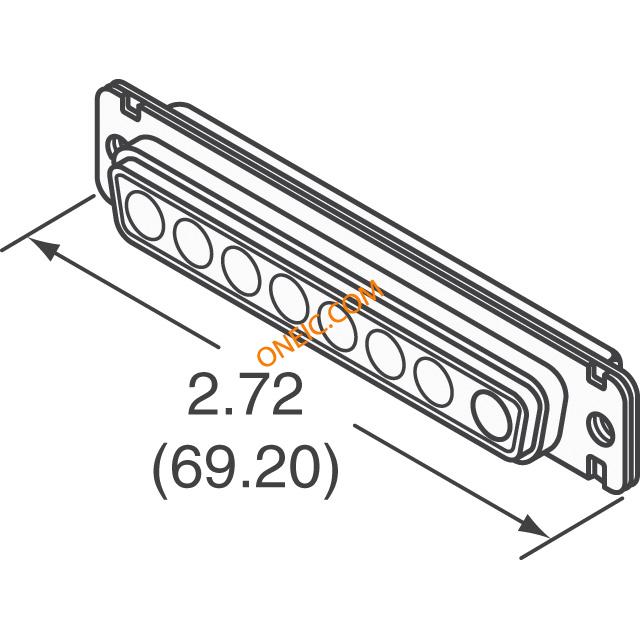

L717TWC8W8P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 8Power POS Solder Cup ST Panel Mount 8 Terminal 1 Port D-Sub Mixed Contact Connectors 8W8 PLUG COMBO CONN D-SUB PLUG 8W8POS HOUSING CONNECTOR, D SUB COMBO, PLUG, 8POS |
| Category |
Business
| Part # Aliases | 87K1007 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Mechanical
| Color | Black | Weight | 0.009 |
| Packaging | Bulk | Shell Size | :DC |
| Termination | Solder Cup | Weight (g): | 10.00000 |
| Contact Type | Power | Body Material | :Steel |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Connector Type | Plug for Male Contacts | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 1 |
| Shell Material | Steel | Connector Style | D-Sub, Combo |
| Insertion Angle | :DC-8W8 | Material - Body | :Metal |
| Number of Contacts | 8Power | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic, Glass Filled | Number of Positions | 8 (Power) |
| Shell Finish Thickness | 100µin (2.54µm) | Shell Material, Finish | Steel, Tin Plated |
| Contact Layout, Typical | 8W8 | Shell Size, Connector Layout | 4 (DC, C) - 8W8 |
Product Info
| Note | Contacts Not Provided | Type | D-Subminiature |
| Gender | PIN | Series | :TW |
| Features | Grounding Indents | ||
Environmental
| Mating Cycles | 200 | Operating Temperature | -55°C ~ 155°C |
Documents & Media
Similar Parts
17E-1657-37
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 37 POS D-Sub Backshells 37P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB37 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 37/hd 62 Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17ESeries; Die-CastMetal; 0.726in.CblDia
L17DM537457
amphenol canada, corp.
Contact PIN Solder ST D-Sub Contacts DSUB COMM ACC CONN S-SUB PIN 14AWG SOLDER GOLD Solder cup power contact male 30A L17DM537457 Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L17DM537451
Amphenol Commercial Products
D-Sub Contacts 30-40A Solder Cup Straight Pin Hybrid CONN D-SUB PIN 6AWG SOLDER GOLD Solder cup power contact male 40A L17DM537451 Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L17DM53745207
Amphenol Commercial Products
D-Sub Contacts 20-30A Crimp Straight Pin Hybrid CONTACT CRIMP D-SUB PLUG 20-30A
L17DM537401
amphenol canada, corp.
Contact PIN Crimp ST Cable Mount D-Sub Contacts COAX PLG CRIMP CNT D-SUB PIN STR SHIELDED CRIMP D SUB CONTACT, PIN, CRIMP

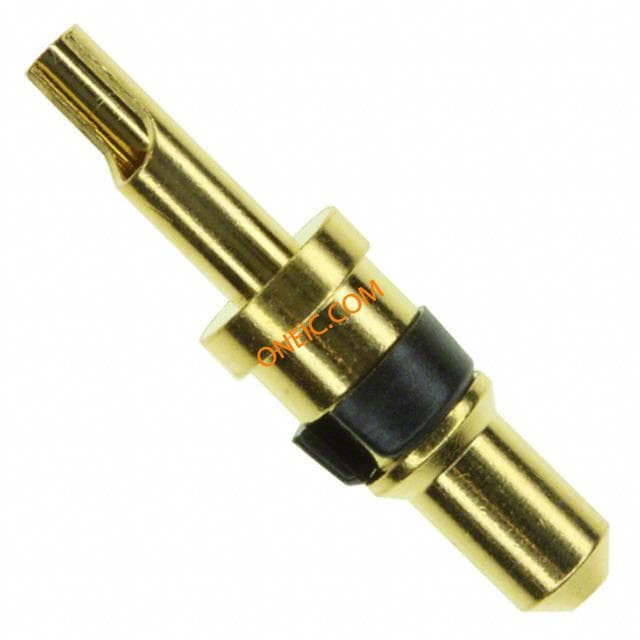

L17DM537458
amphenol canada, corp.
Contact PIN Solder ST D-Sub Contacts 10-20A Solder Cup Straight Pin Hybrid CONN D-SUB PIN 16AWG SOLDER GOLD Solder cup power contact male 20A L17DM537458 SLDCUPPWRCONTMALE20A Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L77TWC8W8S
amphenol canada, corp.
Conn D-Subminiature SKT 8Power POS Solder Cup ST Panel Mount 8 Terminal 1 Port D-Sub Mixed Contact Connectors 8W8 RECPT COMBO D-SUB RCPT 8W8 HOUSING CONNECTOR, D SUB COMBO, RECEPTACLE, 8POS

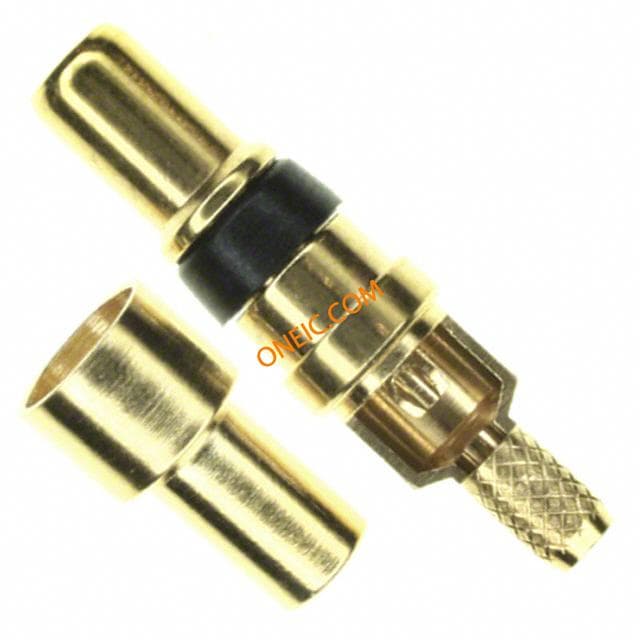

L17DM537405001
