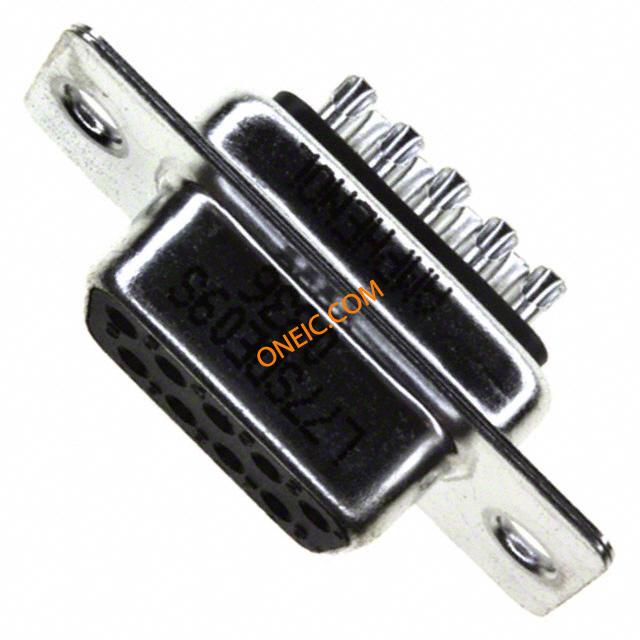

L77SDE09S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors Soc tinned shell 9S solder cup 09P D-SUB FEMALE SOLDER CUP CONN D-SUB RCPT 9POS GOLD FLASH Solder cup D-Sub 9way receptacle CONNECTOR, D SUB, RECEPTACLE, 9WAY Plug; D-Sub; PIN:9; female; soldering; for cable; gold flash; 250V D-Sub female 9P, L77SDE09S, Amphenol Amphenol 面板安装 DB9 9 路 焊接 D-sub 连接器 插座 , 5A |
| Category |
Business
| MOQ | 50 | Unit Pack | 50 |
| Product Category | D-Sub Standard Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | -55 TO 105 |
Electrical
| Range deg/s | :AMPHENOL - SD Series | Voltage Rating | 250 V |
| Contact Resistance | 20mΩ | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Depth | 15.65mm |
| Pitch | 2.77 mm | Width | 12.55mm |
| Height | 3.35 mm | Length | 30.89mm |
| Weight | 0.010333 | Packaging | Bulk |
| Shell Size | E | Termination | Solder Cup |
| Weight (g): | 4.00000 | Contact Type | FEMALE |
| Mounting Type | Panel Mount | Shell Plating | Tin over Steel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Steel |
| Contact Material | Brass | Housing Material | Thermoplastic |

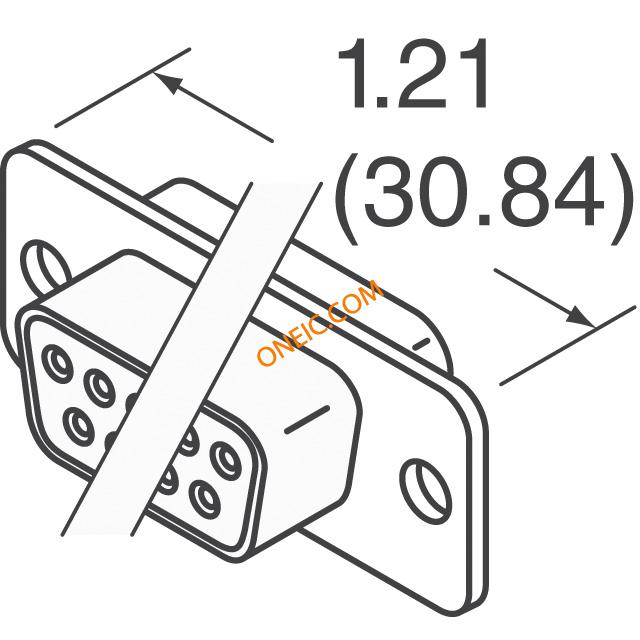

| Length - Overall | 30.89 mm | Package Quantity | 50 |
| Size / Dimension | 30.89 x 12.55 x 15.65mm | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | SKT |
| Number of Contacts | 9 | Contact Termination | :Solder |
| Number of Positions | 9 | Plating - Thickness | 5.0 |
| Material - Insulation | thermoplastic | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Contact Material - Plating | gold flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Spg | 50 | Type | D-Subminiature |
| Gender | SKT | Series | D-DF |
| Matchcode | L77SDE09S | Number of Ports | 1 |
| Number of Units | 1 | Standard Leadtime | 10 weeks |
Environmental
| Mating Cycles | 250 | Temperature Range | - 55 C to + 105 C |
| Operating Temperature | - 55 C to + 125 C | ||
