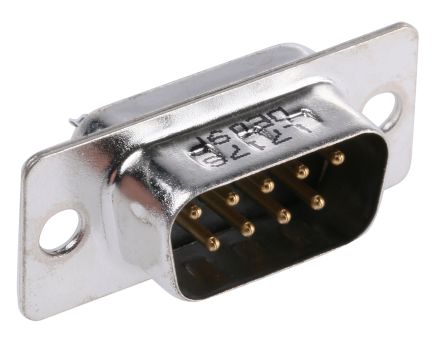

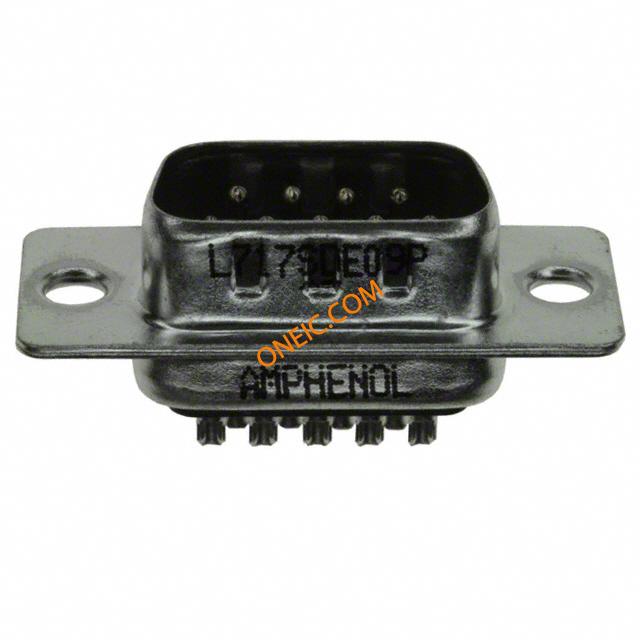

L717SDE09P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P MALE 09P D-SUB MALE SOLDER CUP CONN D-SUB PLUG 9POS GOLD FLASH Solder cup D-Sub 9way plug D SUB CONNECTOR, STANDARD, 9POS, PLUG SOLDERCUPD-SUB9WPLUG Plug; D-Sub; PIN:9; male; soldering; for cable; gold flash; 250V D-Sub male 9P, L717SDE09P, Amphenol Amphenol 面板安装 DB9 9 路 焊接 D-sub 连接器 插头 , 5A |
| Category |
Business
| MOQ | 50 | Unit Pack | 50 |
| Product Category | D-Sub Standard Connectors | Standard Package | Boxed |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | -55 TO 105 |
Electrical
| Range deg/s | :AMPHENOL - 17S Series | Voltage Rating | 250V |
| Contact Resistance | 20mΩ | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 15.3mm |
| Pitch | 2.77 mm | Width | 12.55mm |

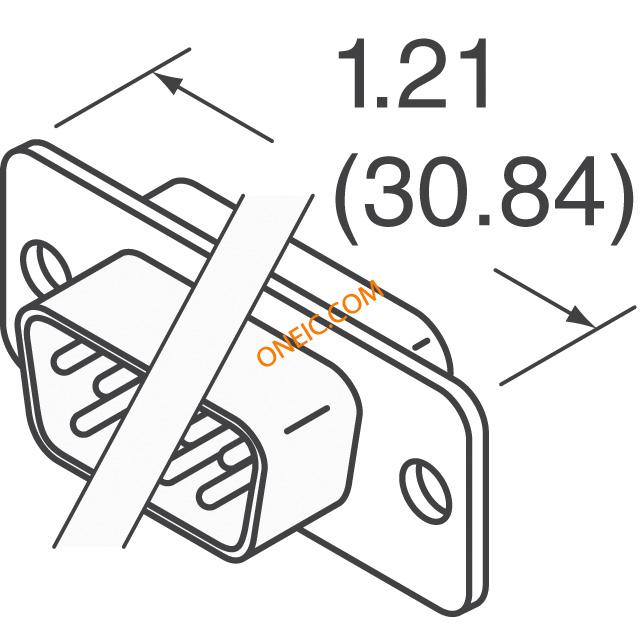

| Height | 12.55 mm | Length | 30.84mm |
| Weight | 0 | Packaging | Bulk |
| Shell Size | E | Termination | Solder Cup |
| Contact Type | MALE | Mounting Type | Panel Mount |
| Shell Plating | Tin over Steel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Material - Body | :Metal | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 30.84 mm |
| Package Quantity | 50 | Size / Dimension | 30.84 x 12.55 x 15.3mm |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | PIN | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Plating - Thickness | 5.0 | Material - Insulation | thermoplastic |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Contact Material - Plating | gold flash | 1st Connector Mounting Type | :Cable |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Spg | 50 | Type | D-Subminiature |
| Gender | PIN | Series | D-DF |
| Features | Grounding Indents | Matchcode | L717SDE09P |
| Number of Ports | 1 | Number of Units | 1 |
| Standard Leadtime | 7 weeks | ||
Environmental
| Mating Cycles | 250 | Operating Temperature | - 55 C to + 125 C |
