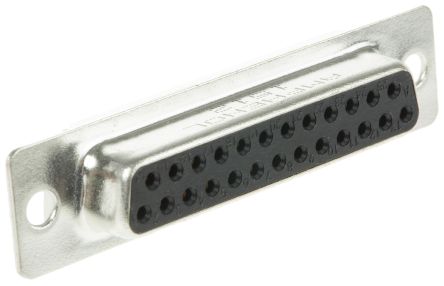

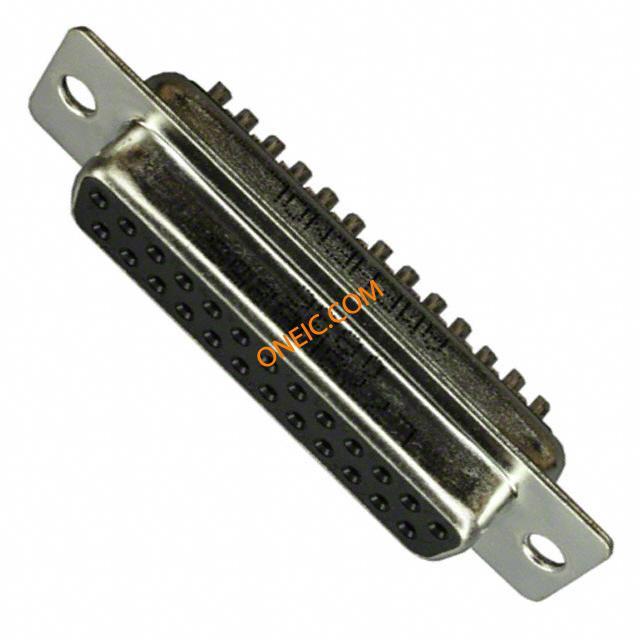

L77SDB25S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port D-Sub Standard Connectors Soc tinned shell 25P solder cup CONN D-SUB RCPT 25POS GOLD FLASH Solder cup D-Sub 25way receptacle Plug; D-Sub; PIN:25; female; soldering; for cable; gold flash; 250V D-Sub female 25P, L77SDB25S, Amphenol Amphenol 面板安装 DB25 25 路 焊接 D-sub 连接器 插座 , 5A 25P D-SUB SOCKET SOLDER CUP |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Voltage Rating | 250 V | Number of Poles | 25 |
| Contact Resistance | 20mΩ | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Depth | 15.65mm |
| Pitch | 2.77 mm | Width | 12.55mm |

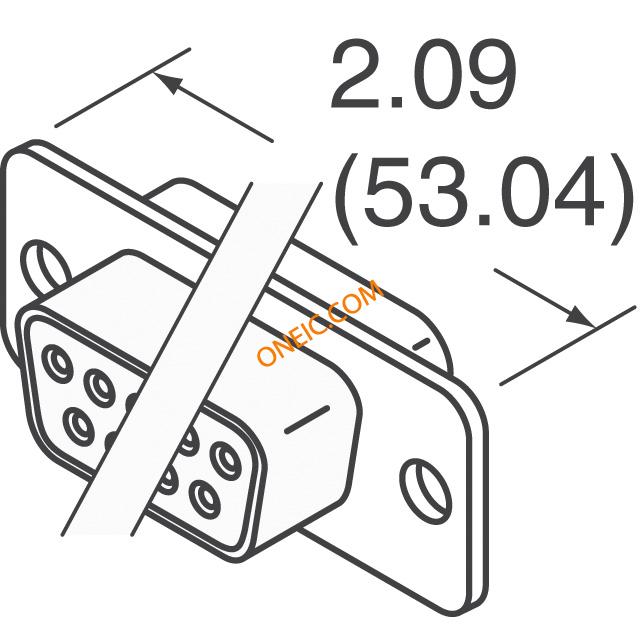

| Height | 12.55 mm | Length | 53.09mm |
| Weight | 0.01 kg | Packaging | Bulk |
| Shell Size | B | Orientation | 直 |
| Termination | Solder Cup | Contact Type | Signal |
| Pitch - Post | 2.77 mm | Mounting Type | Panel Mount |
| Shell Plating | Tin over Steel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Thermoplastic, Glass Filled |
| Length - Overall | 53.09 mm | Package Quantity | 50 |
| Size / Dimension | 53.09 x 12.55 x 15.65mm | Connector - Cable | plug |
| Termination Style | Solder | Number of Contacts | 25 |
| Number of Positions | 25 | 1st Connector Gender | Female |
| Material - Insulation | thermoplastic | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Contact Material - Plating | gold flash |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Spg | 50 | Type | D-Subminiature |
| Gender | SKT | Series | D-DF |
| Description | D-Sub female 25p | Terminstyle | THT |
| Number of Ports | 1 Port | Number of Units | 1 |
| RF Family/Standard | INDUSTRIAL | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
