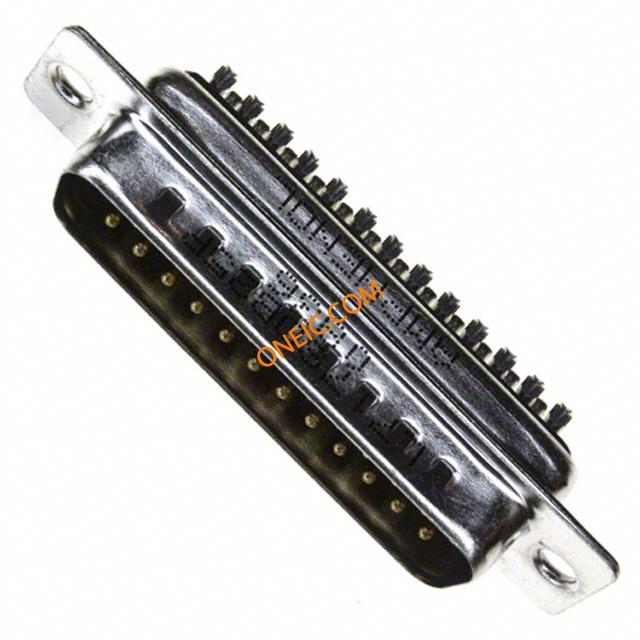

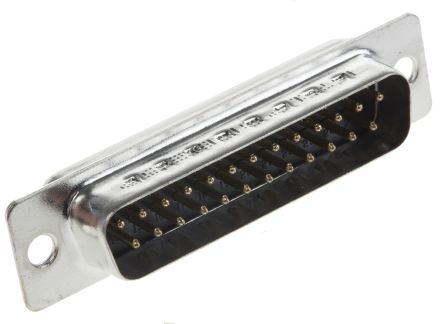

L717SDB25P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 25 POS 2.76mm Solder Cup ST Panel Mount 25 Terminal 1 Port D-Sub Standard Connectors Male tinned shell 25P solder cup 25P D-SUB MALE SOLDER CUP CONN D-SUB PLUG 25POS GOLD FLASH Solder cup D-Sub 25way plug D SUB CONNECTOR, STANDARD, 25POS, PLUG Plug; D-Sub; PIN:25; male; soldering; for cable; gold flash; 250V D-Sub male 25P, L717SDB25P, Amphenol Amphenol 面板安装 DB25 25 路 焊接 D-sub 连接器 插头 , 5A |
| Category |
Business
| MOQ | 50 | Unit Pack | 50 |
| Product Category | D-Sub Standard Connectors | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | -55 TO 105 |
Electrical
| Range deg/s | :AMPHENOL - 17S Series | Voltage Rating | 250V |
| Contact Resistance | 20mΩ | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 15.45mm |
| Pitch | 2.76 mm | Width | 12.55mm |

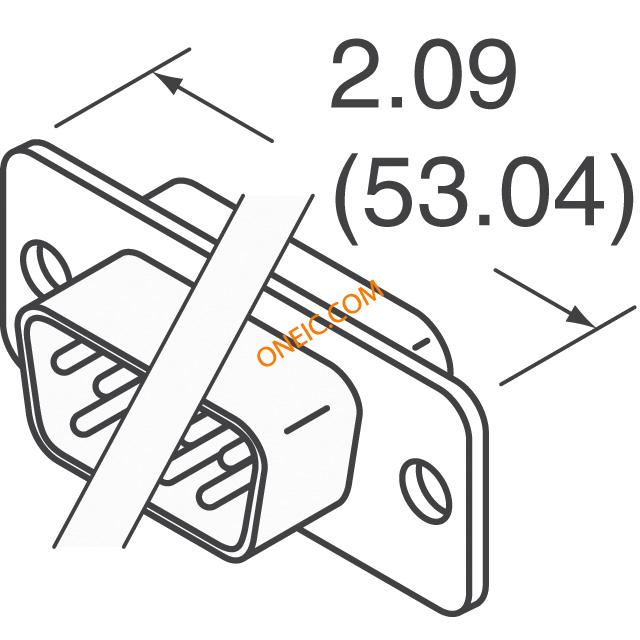

| Height | 12.55 mm | Length | 53.09mm |
| Weight | 0 | Packaging | Bulk |
| Shell Size | B | Termination | Solder Cup |
| Contact Type | MALE | Mounting Type | Panel Mount |
| Shell Plating | Tin over Steel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Material - Body | :Metal | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 53.09 mm |
| Package Quantity | 50 | Size / Dimension | 53.09 x 12.55 x 15.45mm |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | PIN | Number of Contacts | 25 |
| Contact Termination | :Solder | Number of Positions | 25 |
| Plating - Thickness | 5.0 | Material - Insulation | thermoplastic |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Contact Material - Plating | gold flash | 1st Connector Mounting Type | :Cable |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Spg | 50 | Type | D-Subminiature |
| Gender | PIN | Series | D-DF |
| Features | Grounding Indents | Matchcode | L717SDB25P |
| Number of Ports | 1 | Number of Units | 1 |
| Standard Leadtime | 7 weeks | ||
Environmental
| Mating Cycles | 250 | Operating Temperature | - 55 C to + 125 C |
Documents & Media
