L77DE09S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB RCPT 9 POS SLD CUP D-Sub female 9P, L77DE09S, Amphenol |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 300V | Number of Poles | 9 |
| Current Rating (Max) | 7.5A | Voltage - Input (Min) | 300VAC |
| Voltage - Supply (Min) | 300VAC | ||
Mechanical
| Color | Black | Depth | 14.45 mm |
| Height | 12.93 mm | Packaging | Bulk |
| Termination | Solder Cup | Weight (g): | 6.00000 |
| Contact Type | Signal | Mounting Type | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 31.19 mm | 1st Contact Gender | SKT |
| Number of Contacts | 9 | Number of Positions | 9 |
| 1st Connector Gender | Female | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 3.9µin (0.10µm) | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Type | D-Subminiature | Description | D-Sub female 9p |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts
17E17242
amphenol
Connector Accessories Plated Plastic Backshell Acrylonitrile Butadiene-Styrene Nickel Over Copper D-Sub 9 POS Backshell 180° E Shell Size Nickel Over Copper Acrylonitrile Butadiene Styrene D SUB BACKSHELL, SIZE DE, ABS POLYMER

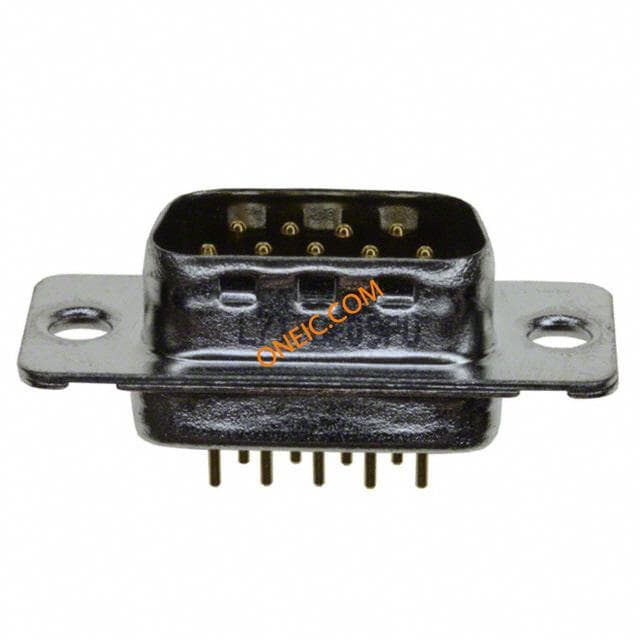

L717DE09PU
