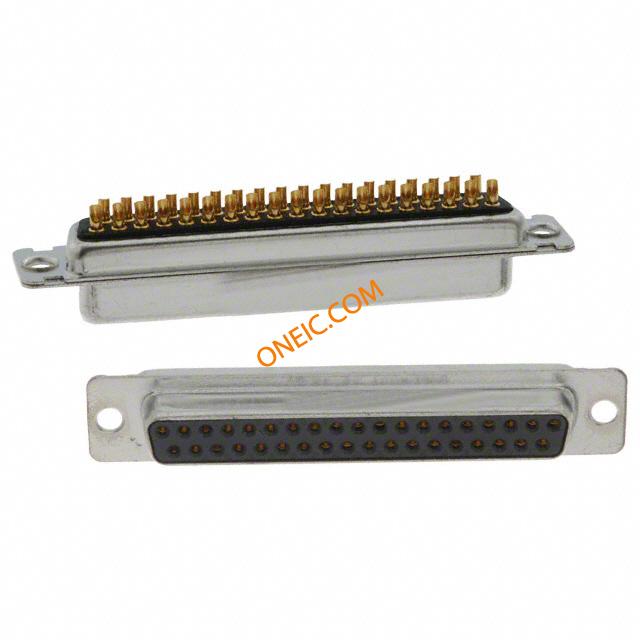

L77DC37S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 37 POS Solder Cup ST Panel Mount 37 Terminal 1 Port CONN DSUB RCPT 37POS SLD CUP D SUB CONNECTOR, STANDARD, 37POS, RCPT D-Sub female 37P, L77DC37S, Amphenol |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Range deg/s | :AMPHENOL - 17D Series | Voltage Rating | 300V |
| Current Rating (Max) | 7.5A | Voltage - Supply (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 14.45 mm |
| Height | 12.93 mm | Weight | 0.014 |
| Packaging | Bulk | Shell Size | :DC |
| Termination | Solder Cup | Contact Type | Signal |
| Body Material | :Steel | Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Metal | Contact Material | Brass |

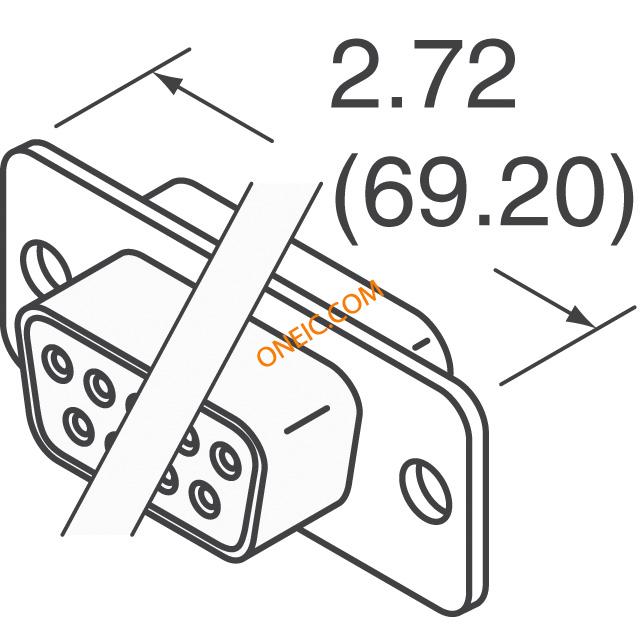

| Housing Material | Thermoplastic, Glass Filled | Length - Overall | 69.7 mm |
| Number of Contacts | 2 | Contact Termination | :Solder |
| Number of Positions | 37 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 3.9µin (0.10µm) | Shell Size, Connector Layout | 4 (DC, C) |
Product Info
| Type | D-Subminiature | Gender | SKT |
| Series | :D | Number of Ports | 1 Port |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Similar Parts
17E-1657-37
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 37 POS D-Sub Backshells 37P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB37 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 37/hd 62 Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17ESeries; Die-CastMetal; 0.726in.CblDia
17E-1727-1
Amphenol Commercial Products
D-Sub Backshells 37P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB37 BLK PLASTIC connector accessory;d-sub;2-piece black plastic str hood;for std 37/hd 62 cont Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17E Series; Plastic; 0.726In.CblDia
17E-1727-2
Amphenol Commercial Products
D-Sub Backshells 37P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB37 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 37/hd 62 contac Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17E Series; MetallizedPlastic; 0.726In.CblDia
L17DCFRA37P
amphenol canada, corp.
Conn D-Subminiature PIN 37 POS 2.77mm IDT RA Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors IDC Male 37P CONN D-SUB PLUG 37POS RIBB0N Flat ribbon IDC D-Sub 37way plug FLATRIBBD-SUB37WPLUG Amphenol DFR 系列 2.77mm 节距 37 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳
L717DC37P
amphenol canada, corp.
Conn D-Subminiature PIN 37 POS Solder Cup ST Panel Mount 37 Terminal 1 Port CONN D-SUB PLUG 37POS GOLD FLASH D-Sub male 37P, L717DC37P, Amphenol

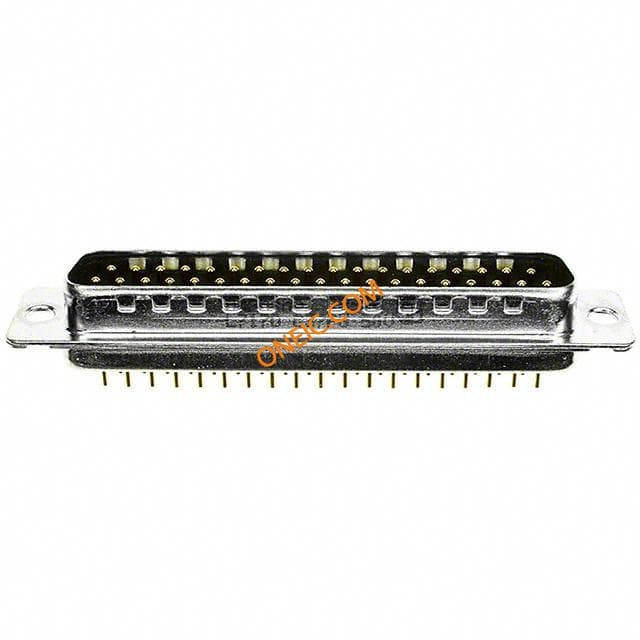

L717DC37PU
