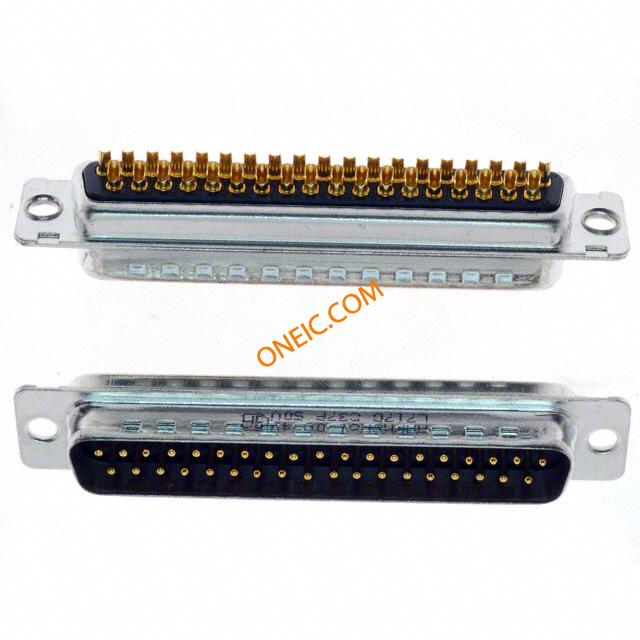

L717DC37P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 37 POS Solder Cup ST Panel Mount 37 Terminal 1 Port CONN D-SUB PLUG 37POS GOLD FLASH D-Sub male 37P, L717DC37P, Amphenol |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 300V | Number of Poles | 37 |
| Current Rating (Max) | 7.5A | ||
Mechanical
| Color | Black | Packaging | Bulk |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Panel Mount | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Contact Material | Brass, gold-plated | Housing Material | Thermoplastic, Glass Filled |
| Number of Positions | 37 | 1st Connector Gender | Male |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 3.9µin (0.10µm) |
| Shell Size, Connector Layout | 4 (DC, C) | ||
Product Info
| Type | D-Subminiature | Gender | PIN |
| Features | Grounding Indents | Description | D-Sub male 37p |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Similar Parts
17E-1657-37
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 37 POS D-Sub Backshells 37P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB37 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 37/hd 62 Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17ESeries; Die-CastMetal; 0.726in.CblDia

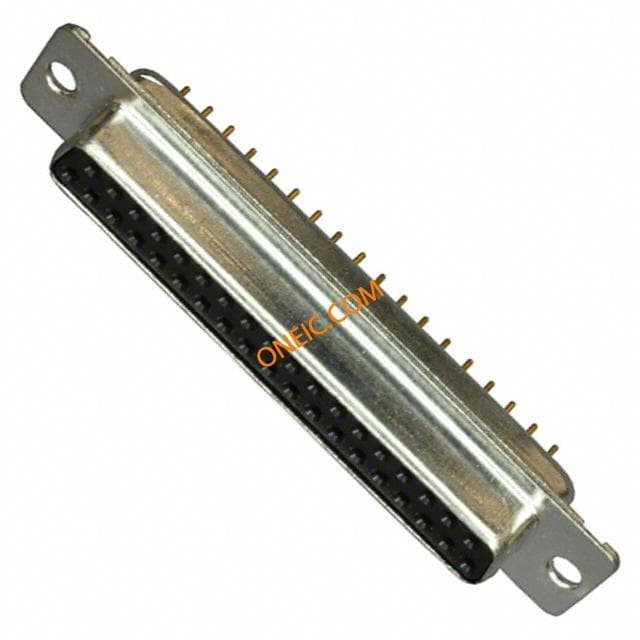

L77DC37SU
amphenol canada, corp.
Conn D-Subminiature SKT 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port CONN D-SUB RCPT 37POS GOLD PCB D SUB CONNECTOR, STANDARD, 37POS, RCPT
17E-1727-1
Amphenol Commercial Products
D-Sub Backshells 37P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB37 BLK PLASTIC connector accessory;d-sub;2-piece black plastic str hood;for std 37/hd 62 cont Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17E Series; Plastic; 0.726In.CblDia
17E-1727-2
Amphenol Commercial Products
D-Sub Backshells 37P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB37 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 37/hd 62 contac Hood; D-Sub; 37STDPos, 62HDPos; STRExit; 17E Series; MetallizedPlastic; 0.726In.CblDia
L77DC37S
amphenol canada, corp.
Conn D-Subminiature SKT 37 POS Solder Cup ST Panel Mount 37 Terminal 1 Port CONN DSUB RCPT 37POS SLD CUP D SUB CONNECTOR, STANDARD, 37POS, RCPT D-Sub female 37P, L77DC37S, Amphenol
L77DC37SV
amphenol canada, corp.
Conn D-Subminiature SKT 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors D-SUB CONN D-SUB SKT 37POS PC TAIL
SPC15447
Avnet, Inc.
D SUB CONNECTOR, STANDARD, 37POS, PLUG
