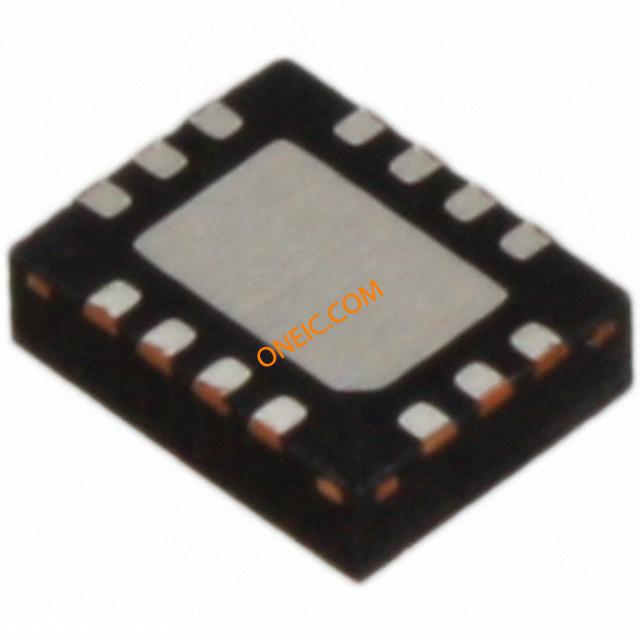

ASEMDHC-LR
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MEMS Oscillators | Standard Package | 110 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85416000 |
Electrical
| Output | HCSL | Frequency | 156.25 MHz |
| Output Type | HCSL | Frequency - Max | :460MHz |
| Frequency - Min | :10MHz | Frequency Range | :10MHz to 460MHz |
| Current - Supply | 23mA | Voltage - Supply | 2.25 V ~ 3.6 V |
| Frequency Stability | ±25ppm | Frequency Tolerance | :- |
| Frequency - Output 1 | 100MHz, 106.25MHz, 125MHz, 156.25MHz | Frequency - Output 2 | 25MHz, 50MHz, 100MHz, 125MHz, 156.25MHz |
Mechanical
| Height | 0.035" (0.90mm) | Weight | 0.001 |
| Packaging | Tube | Mounting Type | :SMD |
| Mounting Style | SMD/SMT | Number of Pins | :14 |
| Package / Case | 14-VFQFN Exposed Pad | Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Termination Style | SMD/SMT | ||
Product Info
| Type | MEMS (Silicon) | Series | ASEMDHC |
| Function | Tri-State (Output Enable) | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Sourcing & traceability
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
