ABLS-4.000MHZ-B2-T
| Manufacturer | |
| Description | Crystal 4MHz 18pF 2-Pin HC-49/US T/R CRYSTAL 4MHZ 18PF SMD Crystals +/-20ppm 4 MHZ FUNDAMENTAL Crystal 4MHz ?20ppm (Tol) ?50ppm (Stability) 18pF FUND 180Ohm 2-Pin HC-49/US SMD T/R MICROPROCESSOR CRYSTAL, 4MHZ |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 42 Days | Other Names | 535-9085-6 |
| Subcategory | Crystals | Product Category | Crystals |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85416000 |
Electrical
| Accuracy | :± 20ppm | Core Type | :- |
| Frequency | 4MHz | Tolerance | 20 PPM |
| Operating Mode | Fundamental | Oscillator Type | Fundamental |
| Load Capacitance | 18 pF | Frequency Stability | ±50 ppm |
| Frequency Tolerance | ±20 ppm | Resistance - Series | 180 Ohm |
| Frequency - Output 1 | :4MHz | Frequency - Operating | 4 MHz |
| ESR (Equivalent Series Resistance) | 180 Ohm | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 4.7 mm | Height | 0.165" (4.20mm) |
| Weight | 0.00227 | Packaging | Tape and Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :2 | Package / Case | 2HC-49/US |
| Length - Overall | 11.4 mm | Size / Dimension | 0.449" L x 0.185" W (11.40mm x 4.70mm) |
| Termination Style | SMD/SMT | 1st Connector Mounting Type | :SMD |
Product Info
| Type | Crystal | Series | ABLS |
Environmental
| Operating Temperature | 70 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
ABLS-4.000MHZ-B2-T
abracon
Crystal 4MHz 18pF 2-Pin HC-49/US T/R CRYSTAL 4MHZ 18PF SMD Crystals +/-20ppm 4 MHZ FUNDAMENTAL Crystal 4MHz ?20ppm (Tol) ?50ppm (Stability) 18pF FUND 180Ohm 2-Pin HC-49/US SMD T/R MICROPROCESSOR CRYSTAL, 4MHZ
$0.6120
Details

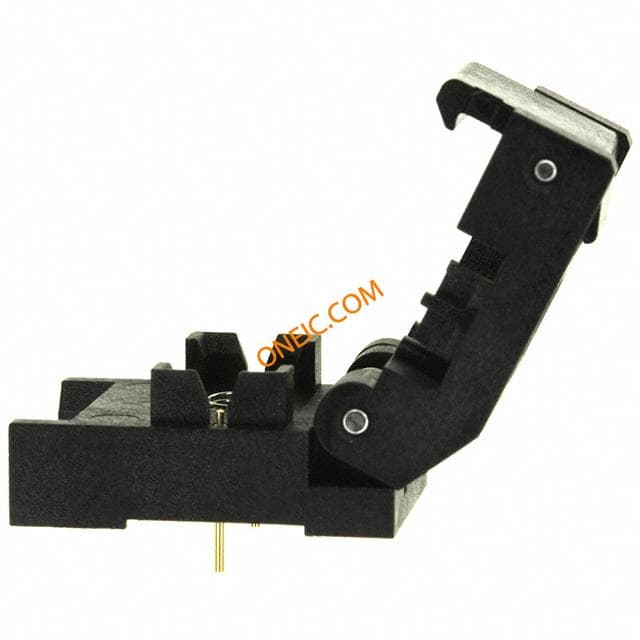

AXS-1147-02-02
