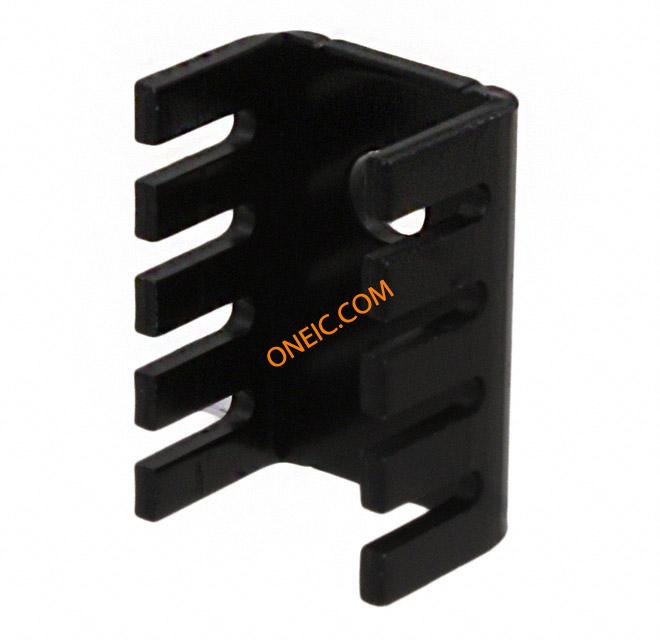

577102B00000G
| Manufacturer | |
| Description | Heat Sink Passive TO-220 Slim Channel 25.9°C/W Black Anodized Heat Sinks TO-220 HORIZ/VERT SLIM CHANNEL STYLE Heat Sink Passive TO-220 Slim Channel Screw Mount 25.9°C/W Black Anodized HEAT SINK TO-220 .375" COMPACT Heatsink 25.9 degC/W 19x13x9.5mm Heat Sink; Compact; Limited Space TO-220; RoHS compliant Heat Sink Passive TO-220 Slim Channel Screw Mount 25.9C/W Black Anodized HEAT SINK,TO-220,25.9C/W HeatSink,Compact,LimitedSpaceTO-220,RoHScompliant AAVID THERMALLOY 黑色 散热器 , 13.21 x 19.05 x 9.52mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 63 Days |
| Subcategory | Heat Sink | Part # Aliases | 002504 |
| Product Category | Heat Sinks | Standard Package | Bulk |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 90261089 |
| Rad Hardened | No | ||
Mechanical
| Color | Black | Depth | 9.52 mm |
| Shape | Rectangular | Width | 13.208 mm |
| Finish | Black Anodized | Height | 19.05 mm |
| Length | 19.05 mm | Weight | 0.002 |
| Material | Aluminum | Packaging | Bulk |
| Fin Height | Slim Channel | Mounting Type | :PCB Through Hole |
| Package / Case | TO-220 | Package Cooled | TO-220 |
| Width (Inches) | :0.52" | Height (Inches) | :0.37" |
| Material Finish | Black Anodized | Width - Overall | :13.21mm |
| Length - Overall | 13.21 mm | Primary Material | TO-220 |

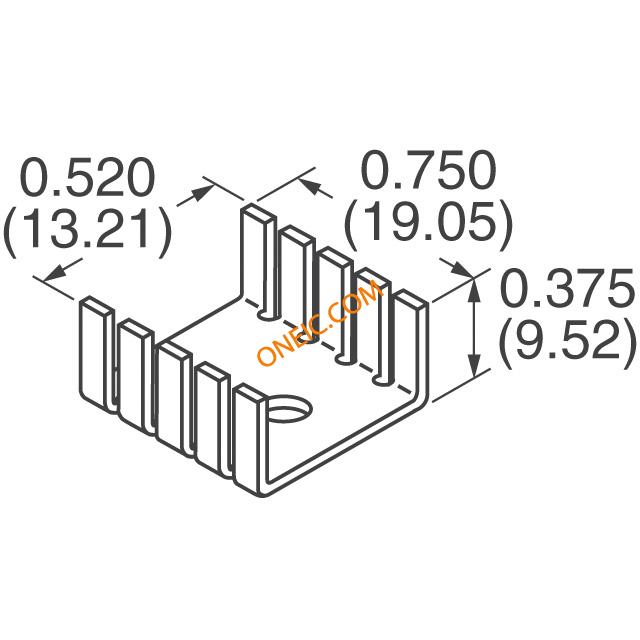

| Size / Dimension | 13.21 x 19.05 x 9.52mm | Attachment Method | Bolt On |
| Color - Connectors | Black | Heat Sink Material | Aluminum |
| Height - Seated (Max) | 0.375" (9.52mm) | Shell Size - Insert (Convert From) | :9.52mm |
Product Info
| Type | Passive | Features | Slim,ChannelStyle |
| Application | TO-220 | Application Specifics | ThroughHoleDiscreteSemiconductors |
| For Use With/Related Products | 577102B00000577102B04000 | ||
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 25.9 °C/W |
| Thermal Resistance @ Natural | 25.9°C/W | Power Dissipation @ Temperature Rise | 3W @ 80°C |
| Thermal Resistance @ Forced Air Flow | 12.0°C/W @ 200 LFM | ||
Documents & Media
Online Document
Online Document
PDF Document
PDF Document
