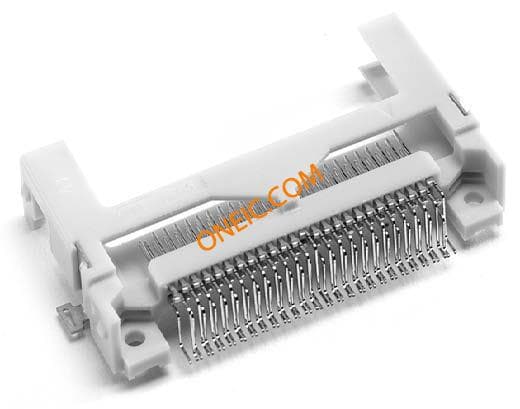

N7E50-7516PG-20
| Manufacturer | |
| Description | Conn Compact Flash Card HDR 50 POS 0.635mm Solder RA SMD 0.5A 50P CF CARD READER CompactFlash(TM) Type I, Surfacemount CF CARD HEADER TYPE I SMD Memory Card Connectors COMPACT FLASH TYPE I HEADER, CF I, SMT CARD HEADER, COMPACT FLASH TYPE I, 50POS Header;CompactFlashCard;CopperAlloy;SMT;LCP;0.5A;7E50Series |
| Category |
Business
| MOQ | 100 | Product | Headers |
| Unit Pack | 100 | Part # Aliases | 54745245942 JE150339370 |
| Product Category | Memory Card Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 0.5 A | ||
Mechanical
| Color | Beige | Pitch | 0.635 mm |
| Height | 26.5 mm | Length | 46.6 mm |
| Weight | 0.07 | Packaging | Bulk |
| Orientation | Horizontal | Shield Type | -55 TO 85 |
| Mounting Type | Surface Mount | Connector Type | Connector |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Mounting Feature | Normal, Standard - Top |
| Termination Style | SMD | Height Above Board | 0.261" (6.64mm) |
| Number of Contacts | 50 | Contact Termination | :Surface Mount Right Angle |
| Number of Positions | 50 | Contact Finish Thickness | Flash |
| Insertion, Removal Method | Push In, Pull Out | ||
Product Info
| Type | Compact Flash Card | Gender | HDR |
| Series | GOLD | Features | Board Guide, Card Guide |
| Card Type | CompactFlash® - Type I | Matchcode | N7E507516PG20 |
| Standard Leadtime | 7 weeks | ||
Documents & Media
Similar Parts
N7E50-7516PG-20
3m interconnect solutions
Conn Compact Flash Card HDR 50 POS 0.635mm Solder RA SMD 0.5A 50P CF CARD READER CompactFlash(TM) Type I, Surfacemount CF CARD HEADER TYPE I SMD Memory Card Connectors COMPACT FLASH TYPE I HEADER, CF I, SMT CARD HEADER, COMPACT FLASH TYPE I, 50POS Header;CompactFlashCard;CopperAlloy;SMT;LCP;0.5A;7E50Series

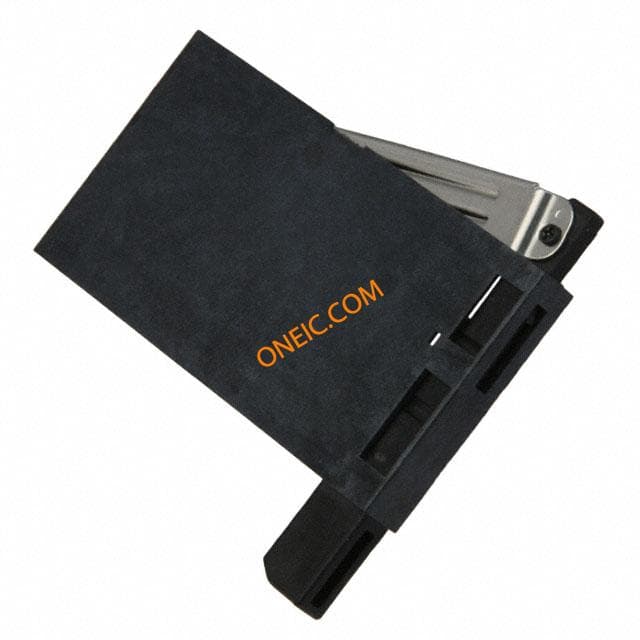

D7E50-7316-03
3m interconnect solutions
Connector Accessories Right Button Ejector Card Header RIGHT BUTTON EJECTOR TYPE1 Guide for compact flash memory board Memory Card Connectors CF 1 CARD HEADER SURFACE MOUNT EJECTOR, HEADER, TYPE1, SURFACE MT GUIDEFORCOMPACTFLASH CF card ejector, D7E50-7316-03, 3M 3M 存储卡连接器
3505-34
3m interconnect solutions
Connector Accessories Retainer Clip Stainless Steel CF CARD RETAINER CLIP CONN Memory Card Connectors RETAINER CLIP FOR SMT CF I HDR CF CARD RETAINER CLIP RETAINER CLIP, CF CARD, HEADER

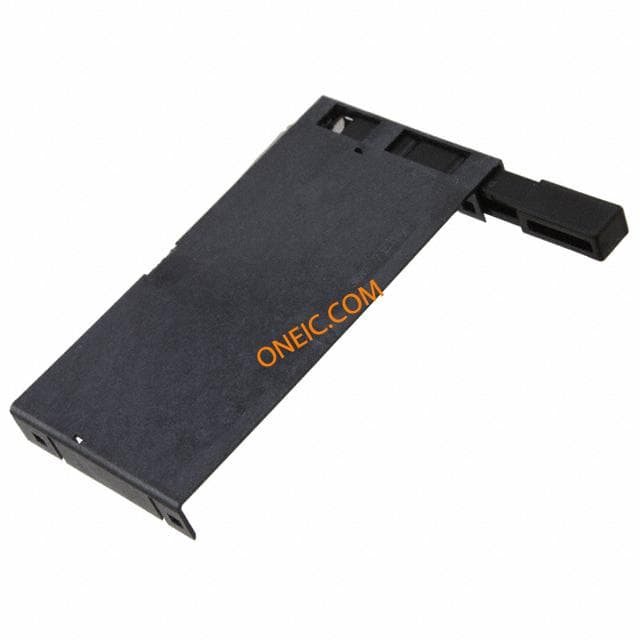

D7E50-7316-02
