N2516-6002RB
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 16P STRT SOLDER TAIL HIGH TEMP 16P HEADER STRAIGHT 3M 2500 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 2A HEADER, STRAIGHT, 16WAY Socket; IDC; male; PIN:16; straight; THT; gold plated; 2A; 2.54mm
sale Pin header DIN 41651 16P, N2516-6002RB, 3M 3M 2500 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔 16P FOUR WALL HEADER STRAIGHT |
| Category |
Business
| MOQ | 560 | Unit Pack | 560 |
| Part # Aliases | 05111162726 80400031342 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :3M - 2500 Series | Voltage Rating | 1000V |
| Voltage - Working | :350V | Contact Resistance | :20mohm |
| Current Rating (Max) | 1A | Insulation Resistance | :1000Mohm |
Mechanical
| Pitch | 2.54 mm | Weight | 0.029 |
| Packaging | Tray | Cable Exit | NO |
| Orientation | STRAIGHT | Termination | Solder |
| Contact Type | MALE | Lead Spacing | :2.54mm |
| Pitch - Post | 2.54mm | Mounting Type | Straight |
| Connector Type | male | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | PBT |
| Package Quantity | 560 | Connector - Cable | socket |
| Termination Style | Solder | Color - Connectors | :Black |
| Number of Contacts | 16 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 16 | Mounting Hole Diameter | :0.89mm |
| Contact Material - Plating | GOLD | 1st Connector Mounting Feature | 2x8 |
Product Info
| Spg | 560 | Type | Shrouded Header |
| Gender | HDR | Series | 2500 |
| Matchcode | N25166002RB | CAD Drawing | 3D CAD Model |
| Product Type | Headers - Shrouded | Number of Units | 1 |
| Standard Leadtime | 6 weeks | Other Specifications | NO |
Environmental
| Mating Cycles | 1 | Temperature - Test | :70°C |
| Operating Temperature | -55 TO 105°C | ||
Documents & Media
Similar Parts

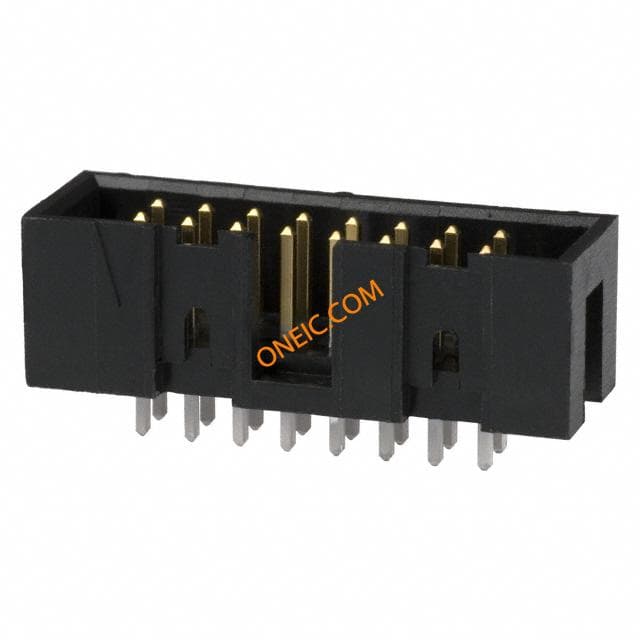

1761603-6
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole CONN HEADER LOPRO STR 16POS 30AU

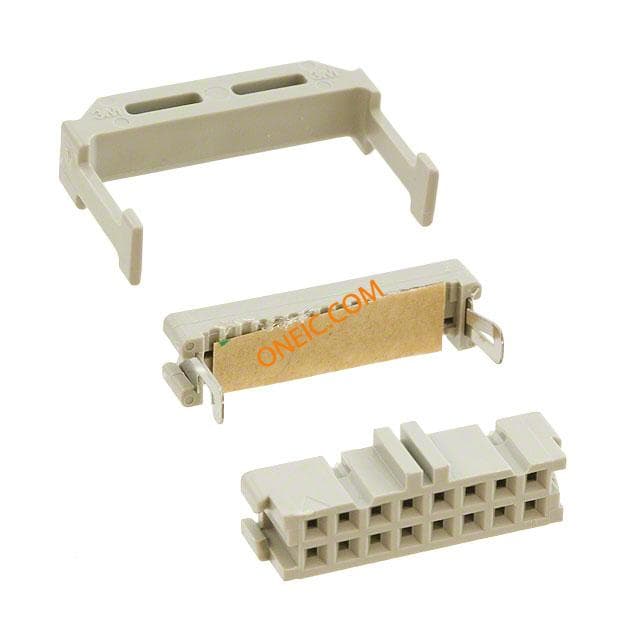

3452-6616
3m interconnect solutions
Conn IDC Connector SKT 16 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Wiremount for .050" Pitch Cable CONN SOCKET 16POS OPEN END SRC 16way bump polarised skt w/strain relief Headers & Wire Housings 16P IDC SOCKET Socket;16Contact,.1"x.1"for.05"Pitchcbl,openend,CenterbumpandMilitary 3M 2行 16路 2.54mm节距 直角 电缆安装 母 IDC 连接器

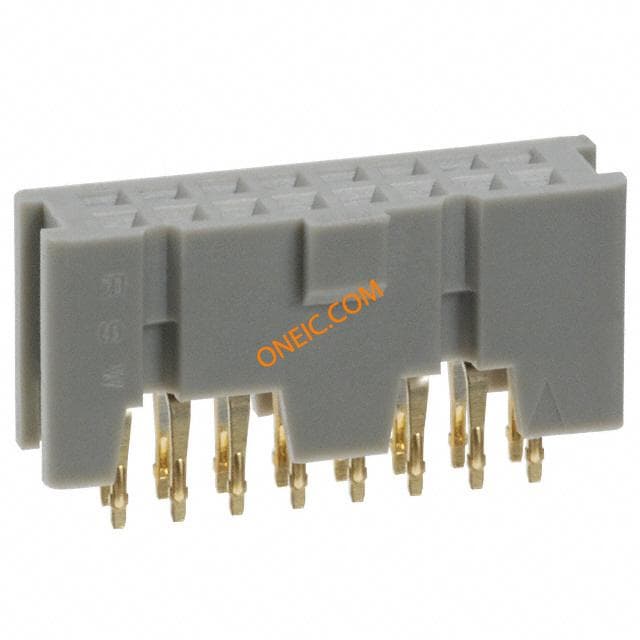

8516-4500PL
