DIN-096CSC-PSL-HM
| Manufacturer | |
| Description | Conn DIN 41612 SKT 96 POS 2.54mm Press Fit ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96P VERTICAL SOCKET DIN 41612 |
| Category |
Business
| Part # Aliases | 05111994288 80001222969 | Product Category | DIN 41612 Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Pitch | 2.54 mm | Packaging | Bulk |
| Termination | Press Fit | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Palladium Nickel Over Nickel |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Termination Style | Press Fit |
| Number of Contacts | 96 | Number of Positions | 96 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Contact Finish Thickness | 3µin (0.08µm) |
Product Info
| Type | DIN 41612 | Style | C |
| Series | DIN | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts

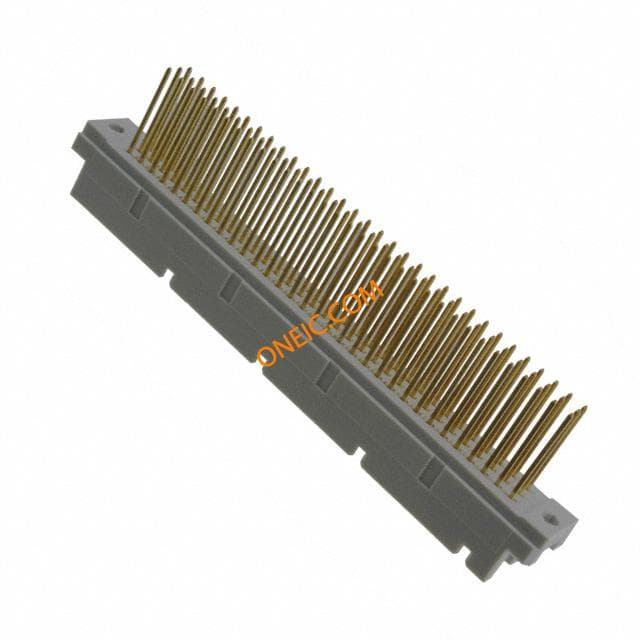

DIN-096RPC-W-KV
3m interconnect solutions
DIN/96P/R-HDR/A,B,&C/13.16MMWW/ROHS DIN/96P/R-HDR DIN 41612 Connectors 96P VERTICAL PLUG DIN 41612
DIN-096CPC-RR1L-KR
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96 CON RT ANG W/ B RETENTION CLIPS
DIN-096RPC-DPS-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Press Fit ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG

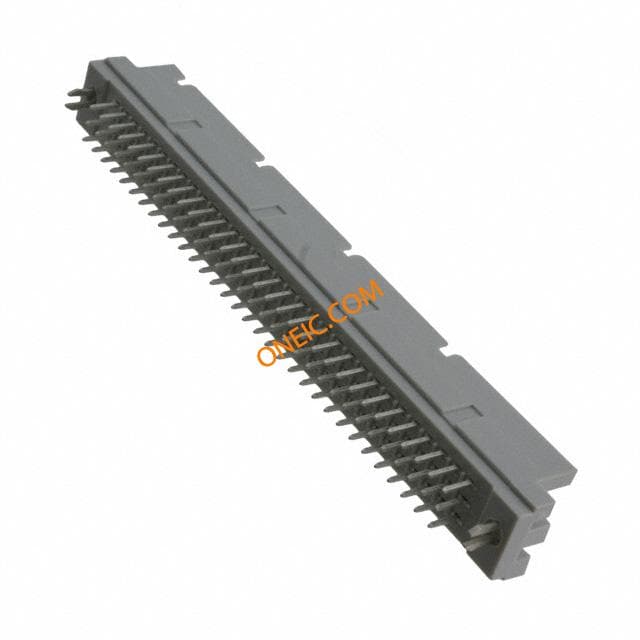

DIN-096RPC-R1-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096CPC-RR1-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612
DIN-096CPC-RR1-KR
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612
DIN-096CPC-SR14A-HM
3m interconnect solutions
DIN/96P/C-HDR/CUSTOM/RA/10PDNI/ROHS CONN DIN PLUG 96POS RA GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612
DIN-096CPC-SR1-KR
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612
DIN-096RPC-S14A-HM
3m interconnect solutions
Conn DIN 41612 M 96 POS 2.54mm Solder ST Thru-Hole CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors DIN R-FORM PLG RT 96 CNT A/B/CFILL BLK
DIN-096RPC-S1-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96P INVERSE VRT PLG DIN 41612
DIN-096CPC-SR14A-KR
3m interconnect solutions
DIN/96P/C-HDR/RA/CUSTOM/30AU/ROHS CONN DIN PLUG 96POS RA GOLD DIN 41612 Connectors DIN C-FORM PLG RT 96CNT WHSK MIT. BLK
DIN-096RPC-S1-KR
3m interconnect solutions
Conn DIN 41612 M 96 POS 2.54mm Solder ST Thru-Hole CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096RPC-W-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder/Wire Wrap ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096RPC-R1-FJ
3m interconnect solutions
DIN/96P/R-HDR/A,B,&C/3.99MMST/RET/10AU/ROHS CONN DIN PLUG 96POS VERT GOLD
DIN-096CPC-SR1-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612, PLUG, 96POS BackPlaneConnector;96;3.0A@30degC;SolderTail;3.7in.;ULRecognized

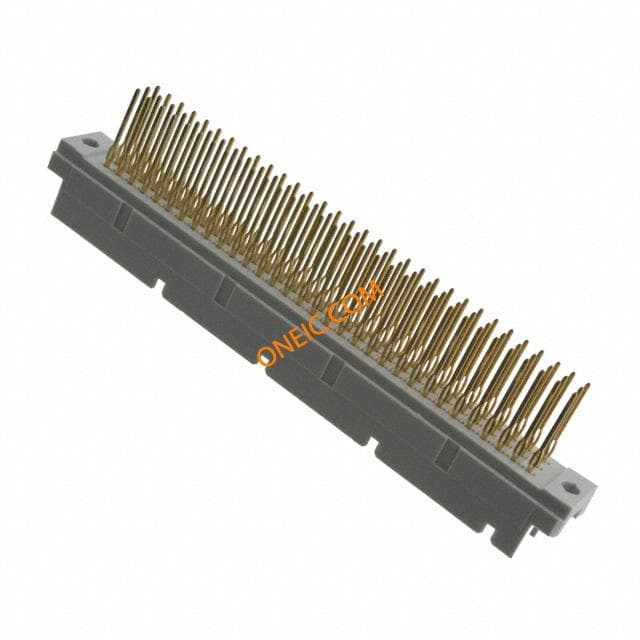

DIN-096RPC-DPW1-KV
