DIN-096CPC-RR1-HM
| Manufacturer | |
| Description | Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612 |
| Category |
Business
| Part # Aliases | 05111994272 80001222803 | Product Category | DIN 41612 Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 100 V | Current Rating (Max) | 3A |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Pitch | 2.54 mm | Packaging | Bulk |
| Termination | Solder | Length - Tail | 2.75 mm |
| Mounting Type | Through Hole | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Termination Style | Solder Tail | 1st Contact Gender | Male |
| Number of Contacts | 96 | Number of Positions | 96 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | Contact Finish Thickness | 3µin (0.08µm) |
Product Info
| Type | DIN 41612 | Style | C |
| Series | DIN | Features | Board Lock |
| Product Type | Plugs | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts

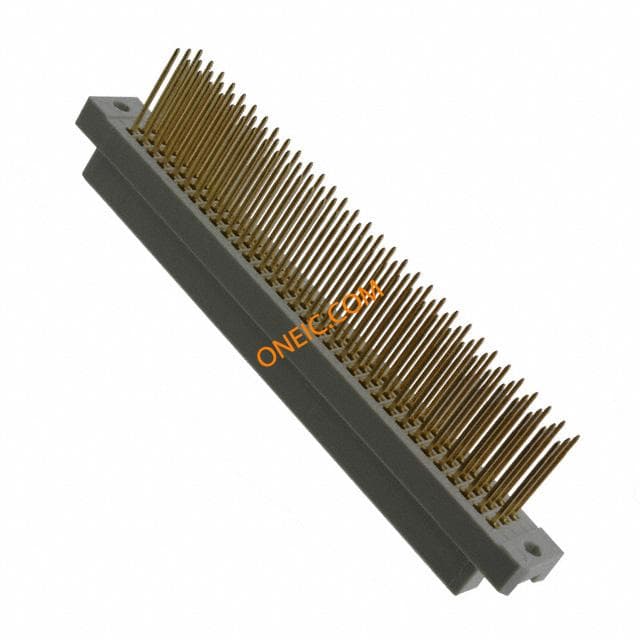

DIN-096CSC-W-KV
3m interconnect solutions
DIN/96P/R-HDR/A,B,&C/13.16MMWW/ROHS DIN/96P/R-HDR DIN 41612 Connectors 96P VERTICAL SOCKET DIN 41612

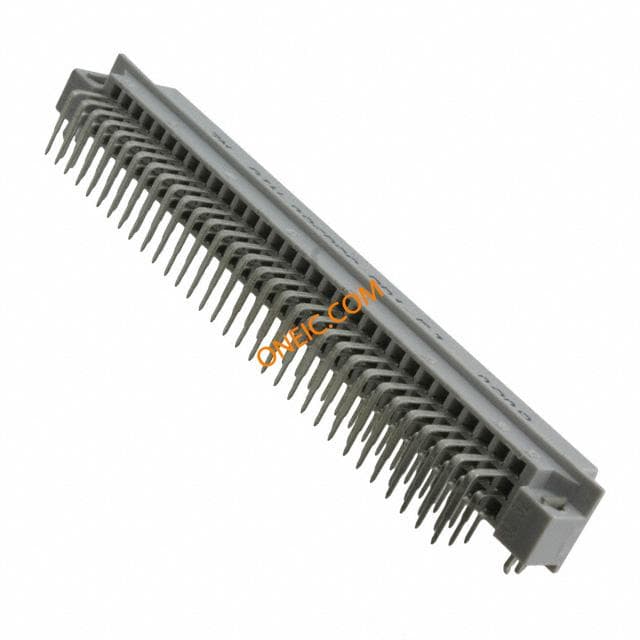

DIN-096RSC-RR1L-FJ
3m interconnect solutions
DIN/96P/R-SKT/A,B&C/RA/3.00MMST/RET/10AU/RO CONN DIN SOCKET 96POS RA GOLD DIN 41612 Connectors 96P R/A SOCKET DIN 41612
DIN-064CPB-SR1-HM
3m interconnect solutions
Conn DIN 41612 HDR 64 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 64POS R/A GOLD DIN 41612 Connectors 64 R/A PLUG DIN 41612
DIN-096CSC-PS-HM
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Press Fit ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096RSC-RR1-KR
3m interconnect solutions
DIN/96P/R-SKT/A,B,&C/RA/3.18MMST/RET30AU CONN DIN SOCKET 96POS R/A GOLD DIN 41612 Connectors 96 CON RT ANG W/ A RETENTION CLIPS
DIN-064CPB-RR1-HM
3m interconnect solutions
Conn DIN 41612 HDR 64 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 64POS R/A GOLD DIN 41612 Connectors 64 CON RT ANG W/ A RETENTION CLIPS
DIN-064CPB-RR1-KR
3m interconnect solutions
Conn DIN 41612 HDR 64 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 64POS RA GOLD DIN 41612 Connectors 64P R/A PLUG DIN 41612
DIN-064RPB-DPW1-HM
3m interconnect solutions
Conn DIN 41612 HDR 64 POS 2.54mm Press Fit/Wire Wrap ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 64POS VERT GOLD DIN 41612 Connectors 64 CON RT ANG

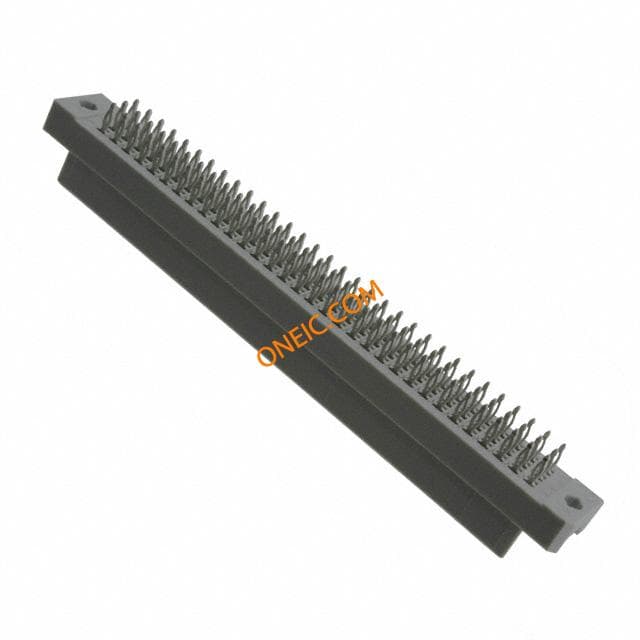

DIN-096CSC-PSL-KR
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Press Fit ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096CSC-R1L-KR
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096CSC-S1L-KR
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96P VERTICAL SOCKET DIN 41612
DIN-096CSC-W-HM
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096RSC-RR1L-HM
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P SOCKET CONN DIN SOCKET 96POS R/A GOLD
DIN-096CSC-PS-KR
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Press Fit ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG

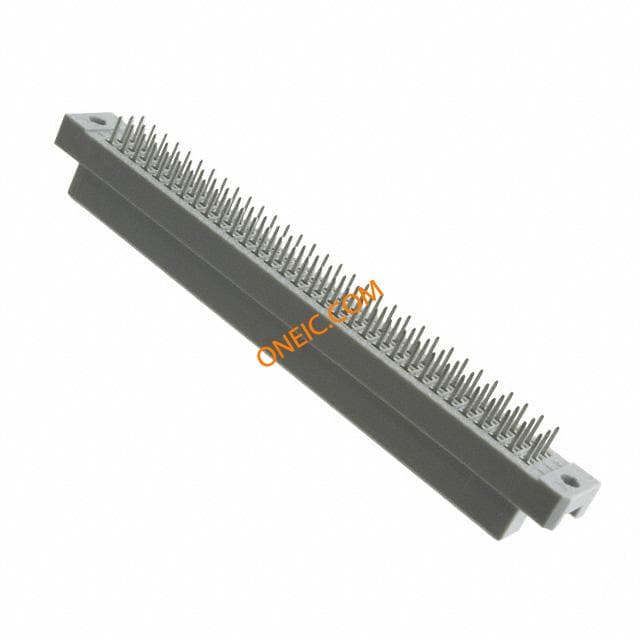

DIN-096CSC-S1L-HM
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96P SOCKET 3.99MM
DIN-096CSC-R1L-HM
3m interconnect solutions
Conn DIN 41612 SKT 96 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 96POS VERT GOLD DIN 41612 Connectors 96P VERTICAL SOCKET DIN 41612
62C96-1200EC
3M Electronic Solutions Division
DIN 41612 Connectors 96P IDC EUROSOCKET HIGH DENSITY Type C (Rows A & C or A, B & C Filled) CONN SOCKET 96POS DIN W/O FLANGE 96/96 way IDC cable socket w/o mount ear SOCKET, IDC, DIN41612, 96WAY IDCDIN4161296/96W

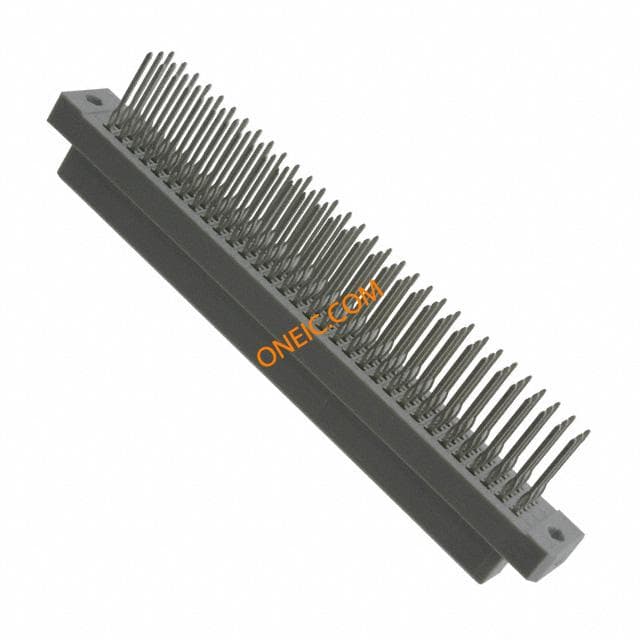

DIN-096CSC-PW1-HM
