62C96-1200EC

Manufacturer	3M Company
Description	DIN 41612 Connectors 96P IDC EUROSOCKET HIGH DENSITY Type C (Rows A & C or A, B & C Filled) CONN SOCKET 96POS DIN W/O FLANGE 96/96 way IDC cable socket w/o mount ear SOCKET, IDC, DIN41612, 96WAY IDCDIN4161296/96W
Category	Connector SolutionsBackplane ConnectorsDIN 41612

对参数有疑问？问 AI 助手

Business

Part # Aliases	05113841138 DE610020195	Product Category	DIN 41612 Connectors
Standard Package	50	Factory Pack Quantity	50

Compliance

RoHS	Lead free / RoHS Compliant	Tariff No	85369010
Approval Agency	:CSA, UL	RoHS Compliance	Yes
Material Flammability Rating	UL94 V-0

Electrical

Voltage Rating	:500V	Voltage - Breakdown	:1kV
Current Rating (Max)	1A	Insulation Resistance	:1000Gohm
Contact Rating (Current)	:1A

Mechanical

Pitch	0.100" (2.54mm)	Weight	14.225601 oz
Material	:Glass Reinforced Polyester	Packaging	Bulk
Termination	IDC	Lead Spacing	:2.54mm
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle, Female Sockets
Contact Finish	Gold	Number of Rows	3
Package / Case	:DIN41612	Contact Material	Copper Alloy
Housing Material	PBT	Termination Style	Wire
Number of Contacts	96	Contact Termination	:IDC / IDT
Number of Positions	96	Material - Insulation	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Finish Thickness	30µin (0.76µm)	1st Connector Mounting Type	:PC Board

Product Info

Style	C	Gender	Female
Series	DIN	Features	Feed Through
Number of Positions Loaded	All

Environmental

Level, Class

Operating Temperature

-55°C ~ 125°C

Documents & Media

PDF Document

1788390.pdf

Similar Parts

DIN-096CPC-RR1L-KR

3m interconnect solutions

Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96 CON RT ANG W/ B RETENTION CLIPS

$30.0288

Details

DIN-096RPC-DPS-HM

3m interconnect solutions

Conn DIN 41612 HDR 96 POS 2.54mm Press Fit ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG

$12.5120

Details

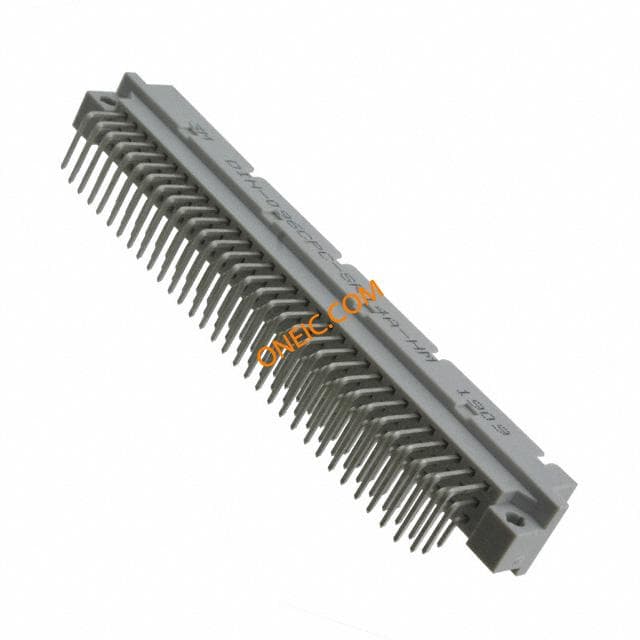

DIN-096CPC-SR14A-HM

3m interconnect solutions

DIN/96P/C-HDR/CUSTOM/RA/10PDNI/ROHS CONN DIN PLUG 96POS RA GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612

$29.8411

Details

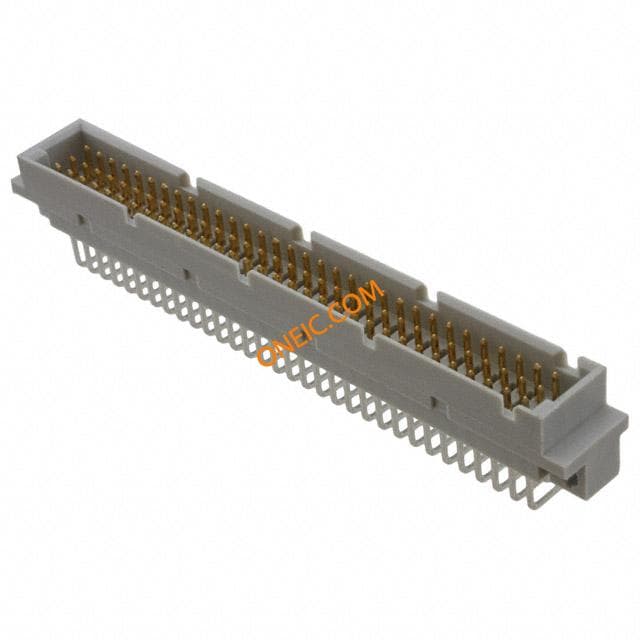

DIN-096CPC-SR1-KR

3m interconnect solutions

Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612

$59.9781

Details

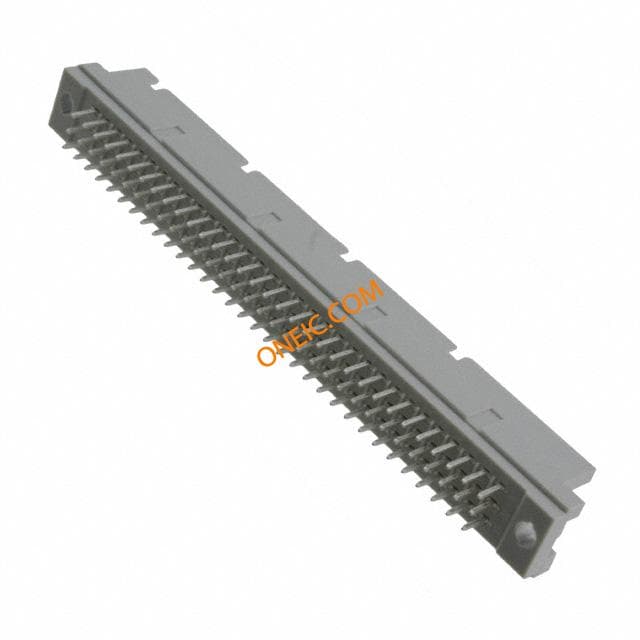

DIN-096RPC-S14A-HM

3m interconnect solutions

Conn DIN 41612 M 96 POS 2.54mm Solder ST Thru-Hole CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors DIN R-FORM PLG RT 96 CNT A/B/CFILL BLK

$30.2165

Details

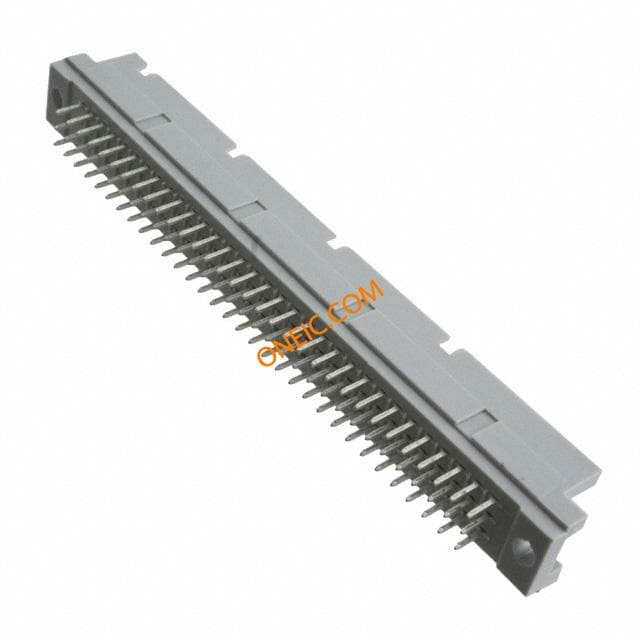

DIN-096RPC-S1-HM

3m interconnect solutions

Conn DIN 41612 HDR 96 POS 2.54mm Solder ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96P INVERSE VRT PLG DIN 41612

$23.9666

Details

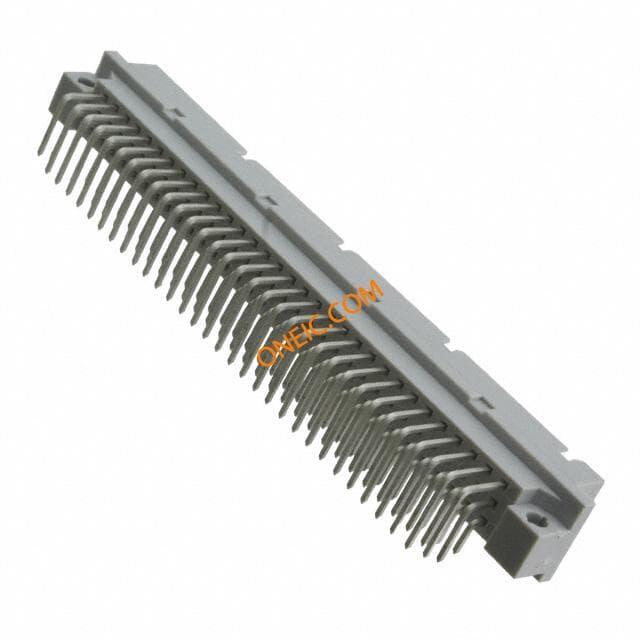

DIN-096CPC-SR14A-KR

3m interconnect solutions

DIN/96P/C-HDR/RA/CUSTOM/30AU/ROHS CONN DIN PLUG 96POS RA GOLD DIN 41612 Connectors DIN C-FORM PLG RT 96CNT WHSK MIT. BLK

$29.8411

Details

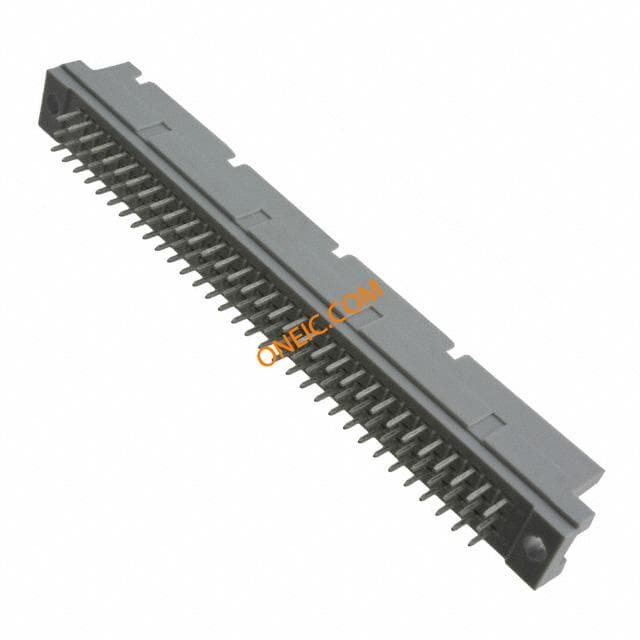

DIN-096RPC-S1-KR
