DIN-064CPB-SR1-KR
| Manufacturer | |
| Description | Conn DIN 41612 HDR 64 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 64POS R/A GOLD DIN 41612 Connectors 64 R/A PLUG DIN 41612 |
| Category |
Business
| Part # Aliases | 05111994234 80001222423 | Product Category | DIN 41612 Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Pitch | 2.54 mm | Packaging | Bulk |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Termination Style | Solder |
| Number of Contacts | 64 | Number of Positions | 96 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | DIN 41612 | Style | C |
| Series | DIN | Number of Positions Loaded | 64 |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
DIN-064CSB-W-HM
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Solder/Wire Wrap ST Thru-Hole CONN DIN SOCKET 64POS VERT GOLD DIN 41612 Connectors 64 CON RT ANG
62C64-1100EC
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm IDT RA Cable Mount Type C (Rows A & C or A, B & C Filled) CONN SOCKET 64POS DIN W/O FLANGE 64/96 way IDC cable socket w/o mount ear DIN 41612 Connectors 64P IDC EUROSOCKET HIGH DENSITY SOCKET, IDC, DIN41612, 64WAY Eurosocket.100X.100(TypeC)RowsA&CorA,B&CFilled(IDCTermination)
DIN-064CSB-PSL-HM
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Press Fit ST Thru-Hole CONN DIN SOCKET 64POS VERT GOLD DIN 41612 Connectors 64 CON RT ANG
DIN-064CSB-S1L-HM
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 64POS VERT GOLD DIN 41612 Connectors 64P VERTICAL SOCKET DIN 41612

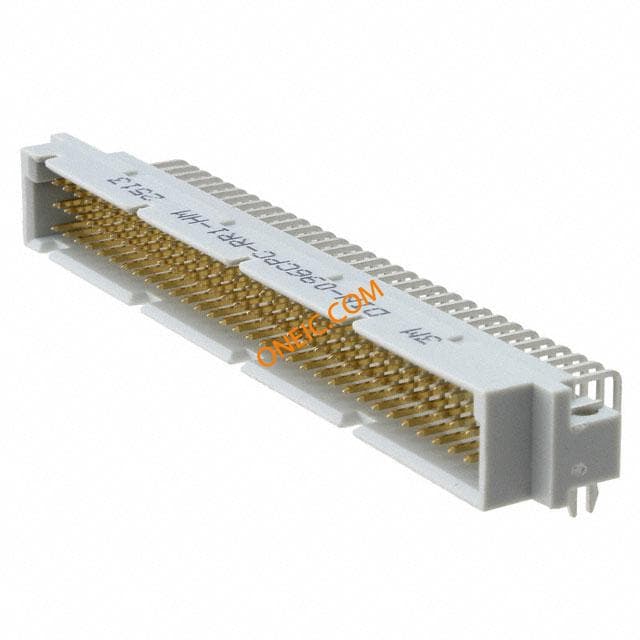

DIN-096CPC-RR1-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612
DIN-064CSB-PS-HM
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Press Fit ST Thru-Hole CONN DIN SOCKET 64POS VERT GOLD DIN 41612 Connectors 64 CON RT ANG
DIN-064CSB-PS-KR
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 64 CON RT ANG CONN DIN SOCKET 64POS VERT GOLD
DIN-064CSB-PW1-KV
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Press Fit ST Thru-Hole CONN DIN SOCKET 64POS VERT GOLD DIN 41612 Connectors 64 CON RT ANG

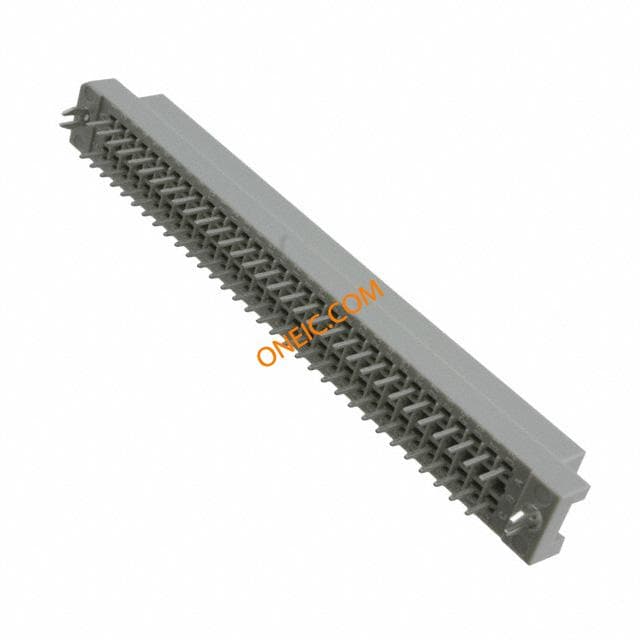

DIN-064CSB-R1L-HM
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 64POS VERT GOLD DIN 41612 Connectors 64 CON RT ANG
DIN-064CSB-R1L-KR
3m interconnect solutions
Conn DIN 41612 SKT 64 POS 2.54mm Solder ST Thru-Hole CONN DIN SOCKET 64POS VERT GOLD DIN 41612 Connectors 64P VERTICAL SOCKET DIN 41612

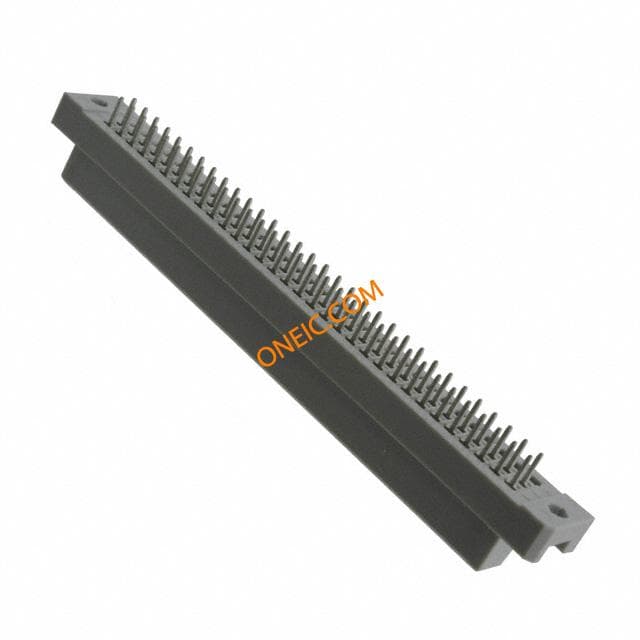

DIN-064CSD-S1L-HM
