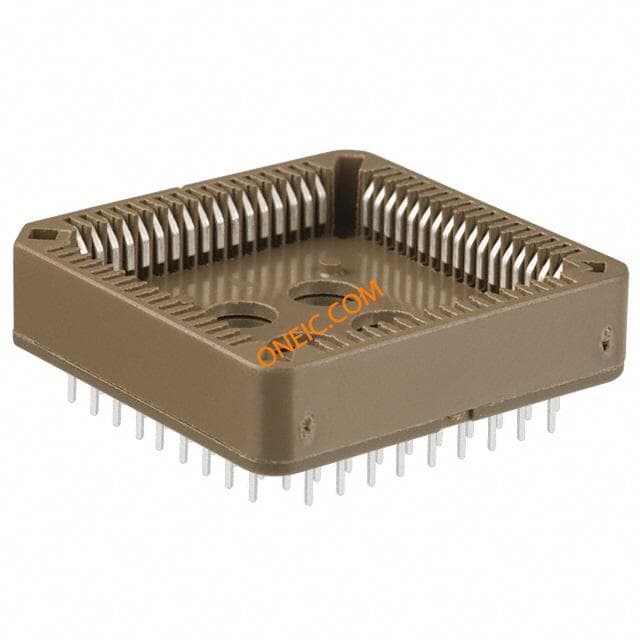

8468-11B1-RK-TP
| Manufacturer | |
| Description | Conn PLCC Socket SKT 68 POS 2.54mm Solder ST Thru-Hole Tube Low Profile, Four-Row, Through-Hole IC SOCKET 68POS PLCC THRU-HOLE CHIP CARRIER SOCKET THRU-HOLE 68W IC & Component Sockets 68P PLCC SOCKET THRU-HOLE SOCKET IC, PLCC, 68WAY CONNECTOR, PLCC SOCKET, 68POS, THROUGH HOLE PLCCChipCarrierSocket(LowProfile,4Row,Thru-Hole)68position 3M 8400 系列 68 针 1.27mm 节距 通孔 母 PLCC 针座 , 锡镀镍 电镀触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PLCC Sockets | Part # Aliases | 05111166310 80000905283 |
| Product Category | IC & Component Sockets | Standard Package | Bulk |
| Factory Pack Quantity | 532 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Electrical
| Contact Resistance | :30mohm | Dielectric Strength | :500V |
| Connector - Voltage Input | :PLCC | ||
Mechanical
| Depth | :30.85mm | Pitch | 2.54 mm |
| Width | :30.85mm | Height | 8mm |
| Length | :7.7mm | Weight | 0.038 |
| Base Type | Open Frame | Row Spacing | 20.32 mm |
| Termination | Solder | Lead Spacing | :1.27mm |
| Mounting Type | Through Hole | Connector Type | :PLCC |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 4 | Insertion Force | :0.17kgf |
| Contact Material | Copper Alloy | Housing Material | PET |
| Primary Material | PLCC | Termination Style | Solder Tail |
| Number of Contacts | 68 | Contact Termination | :Through Hole Vertical |
| Contact Finish Thickness | 160µin (4.06µm) | 1st Connector Mounting Type | :PC Board |
| Number of Positions or Pins (Grid) | 68 (4 x 17) | ||
Product Info
| Type | PLCC Socket | Gender | SKT |
| Series | :8400 | Features | Closed Frame |
| CAD Drawing | 3D CAD Model | Manufacturer | 8400Series |
Environmental
| Operating Temperature | +105°C | ||
