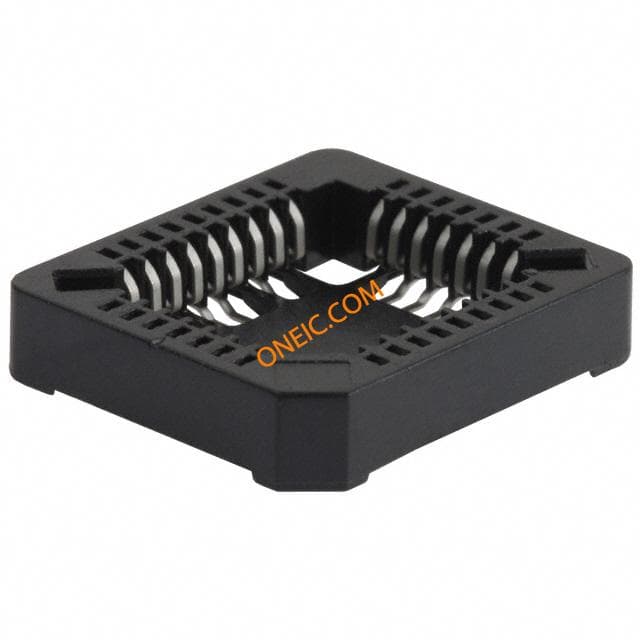

8432-21B1-RK-TP
| Manufacturer | |
| Description | Conn PLCC Socket SKT 32 POS 1.27mm Solder ST SMD Tube Surfacemount IC SOCKET 32POS PLCC SMD 32 way SMT PLCC production socket IC & Component Sockets 32P PLCC SOCKET SMT W/O LOC POSTS SOCKET IC, PLCC, 32WAY 3M 8400 系列 32 针 1.27mm 节距 SMT 母 PLCC 针座 , 锡镀镍 电镀触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PLCC Sockets | Part # Aliases | 05111166314 80000905325 |
| Product Category | IC & Component Sockets | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1914 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Electrical
| Contact Resistance | :30mohm | Dielectric Strength | :500V |
| Connector - Voltage Input | :PLCC | ||
Mechanical
| Depth | :20.32mm | Pitch | 1.27 mm |
| Width | :17.78mm | Height | 4.6mm |
| Length | :5.08mm | Weight | 0.011 |
| Base Type | Open Frame | Packaging | Tube |
| Row Spacing | 10.16 mm | Termination | Solder |
| Lead Spacing | :1.27mm | Mounting Type | Surface Mount |
| Connector Type | :PLCC | Contact Finish | Tin |
| Mounting Style | SMD/SMT | Number of Rows | 4 |
| Insertion Force | :0.17kgf | Contact Material | Copper Alloy |
| Housing Material | PPS | Termination Style | Solder Pad |
| Number of Contacts | 32 | Contact Termination | :Surface Mount Vertical |
| Contact Finish Thickness | 160µin (4.06µm) | 1st Connector Mounting Type | :PC Board |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) | ||
Product Info
| Type | PLCC Socket | Gender | SKT |
| Series | :8400 | Features | Closed Frame |
| CAD Drawing | 3D CAD Model | ||
Environmental
| Operating Temperature | +105°C | ||
