点击放大查看

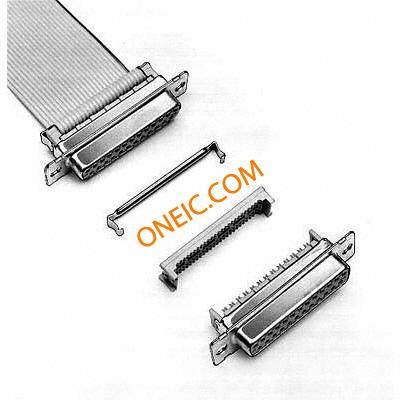

8350-7005
| Manufacturer | |
| Description | Conn D-Subminiature SKT 50 POS 2.74mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50P CLOSD CVR SOCKET 50 Position socket CONN D-SUB RCPT 50POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111165747 80000901076 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 2.74 mm |
| Packaging | Bulk | Termination | IDT |
| Contact Type | Signal | Mounting Type | Cable Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Panel |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Termination Style | IDC |
| Number of Contacts | 50 | Number of Positions | 50 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 5 (DD, D) | ||
Product Info
| Type | D-Subminiature | Gender | SKT |
| Series | 8300 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
